تتميز شاشة LED بدقة 4K حقيقية بلوحة عرض أصلية تبلغ 3840 × 2160 بكسل (4K UHD). بالنسبة لجدار LED ذي العرض المباشر، تتحدد هذه الدقة بناءً على الحجم الفعلي للجدار، وتباعد البكسلات، وتصميم الهيكل. لا يمكن للمعالج الذي يستقبل إشارة 4K تحويل جدار ذي دقة أقل إلى شاشة عرض بدقة 4K أصلية. ابدأ بأقرب مسافة مشاهدة وأبعاد الجدار المتاحة، ثم تأكد من خريطة البكسلات النهائية مع المورد.
يوضح هذا الدليل كيفية حساب جدار LED بدقة 4K، واختيار ميل عملي، ومقارنة خيارات التثبيت، وطلب عرض أسعار يغطي النظام بالكامل.
1. What does 4K mean for a direct-view LED wall?

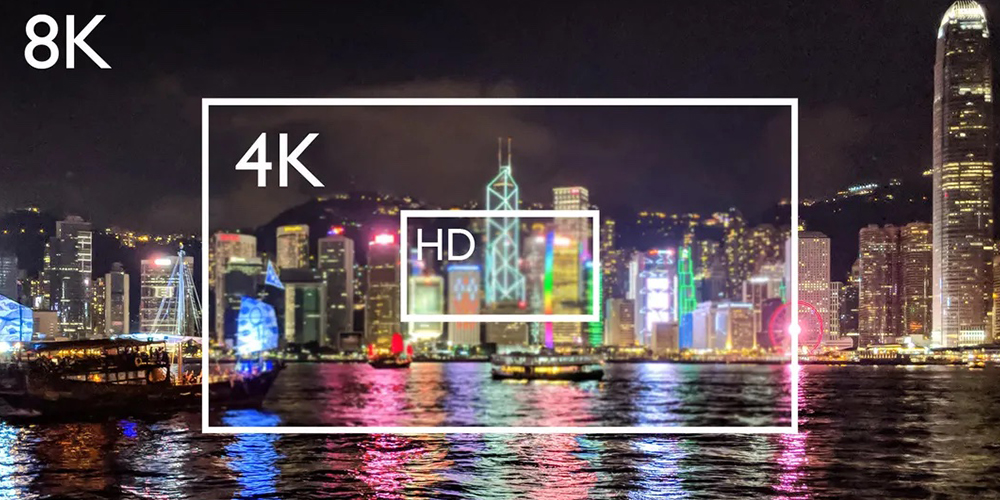

في هذا الدليل، تعني 4K دقة UHD: 3840 بكسل عرضًا × 2160 بكسل ارتفاعًا ، بنسبة عرض إلى ارتفاع 16:9. أي أربعة أضعاف عدد بكسلات دقة Full HD (1920 × 1080). قد تشير عبارة Cinema 4K إلى دقة 4096 × 2160، لذا يُرجى الاستفسار عن التعريف المُستخدم في الاقتباس.
يتم تجميع جدار LED ذي الرؤية المباشرة من وحدات وخزائن. يساهم كل بكسل LED فعلي في اللوحة النهائية. هناك ثلاثة مواصفات يسهل الخلط بينها:
- القرار الأصلي: عدد البكسلات الأفقية والرأسية الفعلية للجدار.
- قرار الإدخال: الإشارة التي يمكن للمعالج استقبالها، مثل 3840 × 2160.
- معدل التحديث: معدل تحديث مصابيح LED، والذي يُقاس عادةً بالهرتز. معدل التحديث 3840 هرتز لا يعني بالضرورة 3840 بكسل أفقي، ولا يُثبت دقة 4K.
قد يقبل جدار بدقة 1920 × 1080 بكسل إشارة بدقة 4K ويقوم بتصغيرها، ولكنه سيظل يعرض بدقة 1920 × 1080 بكسل. اطلب كلا الخيارين خريطة بكسل جدارية أصلية وقدرة المعالج على الإدخال/الإخراج في نفس الاقتراح. لمزيد من التوضيح، انظر EagerLEDالصورة دليل دقة عرض شاشة LED.

2. Calculate 4K size from pixel pitch
المسافة بين البكسلات هي المسافة بين مركزي البكسلات المتجاورة، وتُقاس بالملليمترات. بالنسبة للوحة رسم بدقة 3840 × 2160، تكون الأبعاد النظرية كما يلي:
العرض (م) = 3840 × تباعد البكسل (مم) ÷ 1000
الارتفاع (م) = 2160 × مسافة البكسل (مم) ÷ 1000
| بكسل الملعب | الحجم الأصلي النظري بدقة 4K | قطري تقريبًا | سياق التخطيط النموذجي |
|---|---|---|---|
| P1.25 | 4.80 × 2.70 م | 217 في | غرفة اجتماعات أو تحكم داخلية ذات رؤية أقرب |
| P1.5 | 5.76 × 3.24 م | 260 في | جدار العرض الداخلي |
| P1.875 | 7.20 × 4.05 م | 325 في | مكان داخلي كبير |
| P2.5 | 9.60 × 5.40 م | 434 في | جدار كبير ذو رؤية بعيدة |
هذه أمثلة رياضية، وليست أحجام منتجات متوفرة أو ضمانات لمسافة المشاهدة. تأتي الخزائن والوحدات بزيادات بكسل ثابتة. قد يقترح الفني حجمًا مشابهًا وخريطة بكسل نهائية مختلفة قليلاً. اطلب من المورد عرض عدد الخزائن عرضًا وارتفاعًا، وعدد البكسلات لكل خزانة، والأبعاد الكلية، والدقة الإجمالية الناتجة قبل الطلب.
For example, if your planned 4K LED screen can only be 4.8 m wide, P2.5 provides about 1920 pixels across, not 3840. You would need a finer pitch or more width for native 4K. Conversely, specifying 4K without considering the closest viewer can overspend on pixels that are not useful in that setting. See the دليل تباعد البكسل لمزيد من المعلومات حول سياق الاختيار.
3. How do cabinet dimensions produce a native 4K LED screen?
The pitch formula gives a theoretical width and height, but a quote must resolve the wall into whole cabinets and modules. For a native UHD 4K LED screen, multiply the pixels in one cabinet by the number of cabinets across and high. Both results must equal 3840 and 2160 respectively. The physical dimensions then follow from cabinet size, not from an arbitrary rounded wall measurement.
EagerLED’s published EA600COB1 specification lists a 600 × 337.5 mm (23.6 × 13.3 in) 16:9 cabinet and a P1.25 option. The P1.25 module is listed at 120 × 135 pixels in a 150 × 168.75 mm module. Four modules across and two high make a nominal 480 × 270-pixel cabinet. In this specific configuration, eight cabinets across and eight high calculate to 3840 × 2160 pixels and 4.8 × 2.7 m (15.7 × 8.9 ft). This is a layout calculation from the published module and cabinet dimensions, not a promise that every EA600COB1 order or controller bundle has the same configuration. Confirm the current cabinet drawing and pixel map on the actual quotation.
| خطوة | عملية حسابية | Result to verify |
|---|---|---|
| بكسل لكل خزانة | 4 × 120 pixels wide; 2 × 135 pixels high | 480 × 270 بكسل |
| شبكة الخزانة | 8 عرض × 8 ارتفاع | خزانات 64 |
| قماش أصلي | 8 × 480؛ 8 × 270 | 3840 × 2160 بكسل |
| قياس فيزيائي | 8 × 600 mm; 8 × 337.5 mm | 4.8 × 2.7 م |
The same method works for another 4K LED screen cabinet, but the grid may not be square. A proposal that is 3840 pixels wide but only 1920 high is not native UHD. A wall with more than 3840 × 2160 physical pixels may be appropriate for a custom shape, yet the content must be mapped or scaled deliberately. Ask for the mechanical drawing, module count, pixel map, and spare-module specification in one document so the numbers can be checked together.

4. How to choose the right 4K LED screen
01. ابدأ بالغرفة وأقرب مشاهد
قم بقياس أقصى عرض وارتفاع للشاشة، وأقرب مواقع المشاهدة وأكثرها شيوعًا، والإضاءة المحيطة، ومدى سهولة قراءة النصوص الصغيرة. تُعدّ تقنية LED ذات الدقة العالية مفيدة للغاية عندما يجلس المشاهدون بالقرب من جدار كبير أو يحتاجون إلى لوحات تحكم مفصلة. أما بالنسبة لخلفية المسرح البعيدة، فقد تكون دقة 4K الأصلية أقل فائدة من دقة مناسبة وسطوع عالٍ ومسار إشارة موثوق.
02. تأكد من وحدات البكسل الأصلية وهندسة الخزانة
اطلب رسمًا تخطيطيًا يتضمن أبعاد الخزانة، وعددها، وتباعد البكسل، وعدد البكسلات في كل خزانة، وخريطة البكسل الأصلية الكاملة. تحقق مما إذا كان التكوين الاسمي 16:9 يصل إلى 3840 × 2160 بالضبط، أو يتجاوزها، أو يتطلب تغيير الحجم. تُعد خريطة البكسل الفعلية أكثر فائدة من عبارة "متوافق مع 4K".
03. تحديد بيئة الوصول إلى الخدمة
تختلف أنظمة الإضاءة الداخلية والخارجية في متطلباتها من حيث السطوع، والحماية من العوامل الجوية، والعزل الحراري، والبنية. لذا، استفسر عن السطوع المقاس بالنيت، وتصنيف الحماية من دخول الماء والغبار المناسب للأسطح المكشوفة، ومسافة الصيانة الأمامية أو الخلفية، والعمق الكلي للتركيب، وهيكل التثبيت، ومتطلبات الطاقة، والتهوية. كما يتطلب التركيب الخارجي مخططًا هيكليًا وكهربائيًا خاصًا بالموقع.
04. تحقق من سلسلة الفيديو الكاملة
تأكد من تنسيق المصدر، والموصل، ومعدل الإطارات، وسعة إدخال المعالج، وسعة الإرسال/الإخراج، وسلوك التكبير، وخطة النسخ الاحتياطي. إذا كان سيتم تصوير الشاشة، فاطلب اختبارًا للكاميرا بإعدادات الغالق المخطط لها، بالإضافة إلى معدل التحديث المحدد. يجب إثبات أداء تقنية النطاق الديناميكي العالي (HDR) ومعايرة الألوان وتدرج الرمادي على الجهاز المقترح، بدلاً من افتراض ذلك من كلمة "4K".
05. الاتفاق على معايير القبول
قبل بدء الإنتاج، اتفقوا على خريطة البكسل النهائية، ومستوى السطوع المستهدف، وطريقة التوحيد والمعايرة، ووحدات الاستبدال، وإمكانية الوصول للصيانة، ونطاق الضمان، والجهة المسؤولة عن تشغيل المعالج. اطلبوا صورة اختبارية تُظهر شبكة بكسل واحد ونصًا دقيقًا بدقة العرض الأصلية. هذا يُسهّل التحقق من النتيجة النهائية.

5. What control-system capacity does a 4K LED screen need?
A native UHD 4K LED screen contains 8,294,400 physical pixels. The video path must carry the chosen source format and address the entire canvas at the required frame rate, color settings, and redundancy level. A “4K input” badge tells you what the processor can receive; it does not prove that the device can load every output pixel on the wall. Likewise, an 8.3-million-pixel headline capacity does not explain how the pixels are distributed over the available outputs.
Request a signal diagram from source to input, processor or sender, output ports, receiving cards, and cabinets. List the input connector and format, accepted frame rate, output canvas size, pixels assigned to each port, and cable route. Compare each assigned port with the limit in the exact controller manual, allowing for the manufacturer’s conditions and the proposed refresh, color depth, and frame rate. If one port is overloaded, the solution may need a different port map, more sending capacity, or another processor. Do not infer port count by dividing the total pixels evenly without a cabinet wiring plan.
Ask the integrator to state whether the 4K LED screen will display one full-screen source, multiple windows, or content from a media server. Multiwindow processing, scaling, splicing, and backup input switching are separate functions; they should be demonstrated on the proposed equipment. For a presentation wall, test the smallest spreadsheet text and a one-pixel grid at the native canvas. For a filmed stage, record footage with the actual camera and shutter settings. A published refresh-rate figure is only one part of that camera check.
Keep the approved input format and the controller configuration backup with the project file. If a future source changes its EDID or output timing, the 4K LED screen can appear to “lose resolution” even when its physical pixels have not changed. This distinction helps the service team diagnose the source, scaling, or sending path without replacing good cabinets.

6. 4K LED wall versus LCD and projection
| خيار | الأنسب | المفاضلة للتحقق |
|---|---|---|
| جدار LED ذو رؤية مباشرة | شاشة عرض كبيرة، سلسة، ومصممة حسب الطلب | يعتمد حجم 4K الأصلي على درجة اللون؛ لذا يُرجى مراعاة التركيب والطاقة والصيانة. |
| شاشة عرض LCD بدقة 4K أو جدار من شاشات LCD المبلطة | شاشات أصغر ونصوص عرض قريبة | تتميز الجدران المبلطة بإطارات ظاهرة؛ أما لوحات 4K الفردية فلها أحجام ثابتة |
| الإسقاط 4K | صورة كبيرة جدًا حيث يمكن التحكم في الإضاءة | يؤثر كل من الإضاءة المحيطة ومسافة العرض ونوع السطح على النتيجة. |
يُمكن أن يُشير مصطلح "تلفزيون LED" إلى تلفزيون LCD مزود بإضاءة خلفية LED. تتناول هذه المقالة تلفزيونات LED ذات العرض المباشر ، حيث تُشكّل وحدات البكسل LED نفسها الصورة. اختر التلفزيون المناسب بناءً على الغرض من المشاهدة وظروف الغرفة، ثم قارن بين الأنظمة المُثبّتة بالكامل بنفس حجم الصورة المطلوب.
7. What determines the cost of a 4K LED screen?
لا يوجد سعر موحد وموثوق لجميع شاشات LED الجدارية بدقة 4K. فمع نفس الدقة الأصلية، يؤدي استخدام دقة عرض أقل إلى شاشة أصغر حجمًا، وقد يؤثر ذلك على عدد الخزائن وتكلفة الأجهزة. لذا، يجب أن يتضمن عرض السعر الصادق ما يلي:
- وحدات/خزائن LED، ودرجة البكسل، وقطع الغيار؛
- المعالج، وأجهزة الإرسال، والكابلات، وأي نظام احتياطي؛
- تركيب الهيكل، والأعمال الكهربائية، والتهوية، والتركيب؛
- المعايرة، والتشغيل، والشحن، والضرائب، ودعم ما بعد البيع.
قارن الأسعار باستخدام نفس خريطة البكسل الأصلية، والسطوع، وتكوين الخزانة، ونطاق الخدمة. السعر المنخفض للوحة فقط لا يشمل سعر المشروع مع التركيب. أرسل أبعاد الغرفة، ومسافة المشاهدة، وإعدادات الغرفة (داخلية/خارجية)، ومصادر المحتوى، وموقع التركيب إلى EagerLED للحصول على عرض أسعار خاص بالمشروع.

8. How should two native 4K proposals be compared?
Compare like-for-like installed systems, not two prices labeled “4K.” Put the cabinet grid, native pixel map, physical dimensions, pixel pitch, brightness at the proposed operating setting, controller model, port map, power figures, mounting method, service access, and spares on one comparison sheet. A smaller 4K LED screen may use a finer pitch and a different number of cabinets from a larger native 4K wall; their display area and installed labor can differ even though both have 3840 × 2160 pixels.
Ask each bidder to identify exclusions. Is the structural frame engineered and supplied? Are power distribution, video cables, commissioning, training, freight, taxes, and spare modules included? Which parts can be serviced from the front, and how much access space is required? If the site is a control room, include 24-hour operating expectations and source-switching needs. If it is a temporary event, identify rigging, setup time, and packaging. These requirements change the useful 4K LED screen specification.
Request a cabinet layout drawing and a signal-flow diagram before comparing the total cost. When a proposal claims an exact native canvas, recalculate it from the cabinet pixel dimensions. When it claims only 4K signal compatibility, ask for the physical output resolution. Keep the accepted drawings and test plan with the order; a precise scope is more useful than an unqualified price per square meter.
9. How can a buyer verify a 4K LED screen before final payment?
Write the acceptance criteria into the purchase scope before production. The first test is arithmetic: the as-built cabinet map must show the promised physical pixel count. Compare the cabinet labels and installed grid with the drawing, then display a native-resolution one-pixel grid. A photographed 4K input menu cannot substitute for this check. Record the processor’s output canvas and port loading alongside the source resolution.
Next, test the 4K LED screen with the content that justified its pitch. Use actual slides, control-room dashboards, camera feeds, or campaign files from the project. View fine type from the nearest planned seat and moving video from typical positions. Run full white, primary-color, grayscale, and dark-gradient patterns at agreed brightness to look for visible seams, color mismatch, dead pixels, and low-gray issues. The parties should agree on defect handling and recalibration before the wall is shipped; avoid inventing a universal pixel-defect tolerance.
For a factory acceptance test, ask the supplier to document the exact cabinets, receiving cards, power supplies, processor, firmware or configuration versions, and test settings. If the complete wall cannot be assembled in the factory, state which sample or section was tested and what remains to be checked on site. During site acceptance, verify mounting and ventilation, electrical protection and service clearance with the qualified installers. The final 4K LED screen should be checked at the operating brightness and ambient light expected in the room, not only on a showroom floor.
Test a controlled restart and a source change. If redundancy was purchased, demonstrate the agreed failover rather than assuming it works because backup connectors exist. Save the as-built cabinet map, controller backup, calibration files, manuals, spare-part list, and a dated record of the agreed test content. These documents help the buyer distinguish a later source problem from a display fault and enable a replacement module to be matched to the original system.
A quotation should identify who performs each test, who supplies content and a camera if needed, how defects are corrected, and when sign-off occurs. That process turns the phrase “4K ready” into an observable result and makes two 4K LED screen proposals easier to compare on the same basis.
10. EagerLED التكوينات المراد تقييمها
For a 4K LED screen project, EagerLED تُقدّم الشركة عدة مجموعات من الخزائن الداخلية التي يُمكن تركيبها على شكل جدران عالية الدقة. ولا يضمن اسم المجموعة وحده دقة 4K؛ إذ تُحدّد المسافة بين الخزائن وعددها الدقة النهائية.
- شاشة LED داخلية EA640F2خزانة بحجم 640 × 480 مم مع واجهة أمامية. اطلب خريطة بكسل لكل خزانة على حدة وفقًا للمسافة التي اخترتها.
- جدار LED داخلي EA640H1: تقييم إمكانية الوصول الأمامي وعمق التركيب حيث تكون مساحة الصيانة الخلفية محدودة.
- شاشة عرض داخلية بتقنية COB طراز EA600COB1يُنصح باستخدام تنسيق شاشة بنسبة عرض إلى ارتفاع 16:9 لتطبيقات العرض عن قرب. تأكد من الدقة الأصلية الدقيقة للشاشة المقترحة.
اسأل ال EagerLED سيقوم فريق متخصص بمقارنة هذه الخيارات مع أبعاد جدارك، وأدنى مسافة مشاهدة، ومتطلبات المحتوى. سيوفر لك رسم تخطيطي وصورة نموذجية معلومات أكثر من مجرد عبارة "جاهز لدقة 4K" العامة.
الأسئلة الشائعة حول شاشات LED بدقة 4K
01. Why can a native 4K wall display only 1080p from a laptop?
The source, cable, input format, EDID negotiation, and processor scaling all affect the signal that reaches the wall. Check the laptop’s actual output and the processor’s reported input before changing the physical LED configuration. A native 4K pixel map remains 4K even if the source temporarily sends 1080p.
02. Does a 4K input make an LED wall native 4K?
لا. يستطيع المعالج تكبير إشارة بدقة 3840 × 2160 لتناسب جدارًا يحتوي على عدد أقل من البكسلات الفعلية. تتطلب دقة 4K الأصلية خريطة بكسلات جدارية بدقة 3840 × 2160 لعرض محتوى UHD.
03. What pixel pitch is needed for a 4K LED wall?
لا توجد نسبة عرض محددة مطلوبة. للحصول على صورة فائقة الوضوح (UHD) بدقة، تتطلب نسبة العرض 1.25 مساحة نظرية تبلغ 4.80 × 2.70 متر، بينما تتطلب نسبة العرض 2.5 مساحة 9.60 × 5.40 متر. وتُحدد المساحة المتاحة ومسافة المشاهدة النسبة الأنسب.
04. Is a 3840 Hz LED screen the same as a 4K screen?
يشير الرقم 3840 هرتز عادةً إلى معدل التحديث. أما 4K فتشير إلى عدد البكسلات الفعلي. اطلب كلا المواصفتين بشكل منفصل.
05. Can an outdoor LED screen be native 4K?
نعم، إذا بلغت دقة الصورة المجمعة 3840 × 2160 بكسل. مع زيادة عرض الشاشة الخارجية، قد يتطلب ذلك جدارًا كبيرًا جدًا. يجب أيضًا تحديد السطوع، والحماية من العوامل الجوية، وبنية الشاشة، ومسافة المشاهدة.
06. What should I send a supplier for an accurate quote?
أرسل أبعاد الجدار القصوى، وموقع التركيب (داخلي/خارجي)، وأقرب مسافة مشاهدة، وصور أو رسومات التركيب، ومصادر المحتوى المخطط لها، وساعات العمل، وإمكانية الوصول إلى الخدمة، وموقع التسليم المستهدف. اطلب من المورد إعادة خريطة البكسل الأصلية وإكمال نطاق التركيب.
Get a verified 4K LED screen layout and quote
Send the available wall size, closest viewing distance, content examples, source format, installation drawings, and service needs to EagerLED for a 4K LED screen proposal. Ask for the cabinet pixel map, controller port plan, installed scope, and an agreed acceptance test with the quotation.
