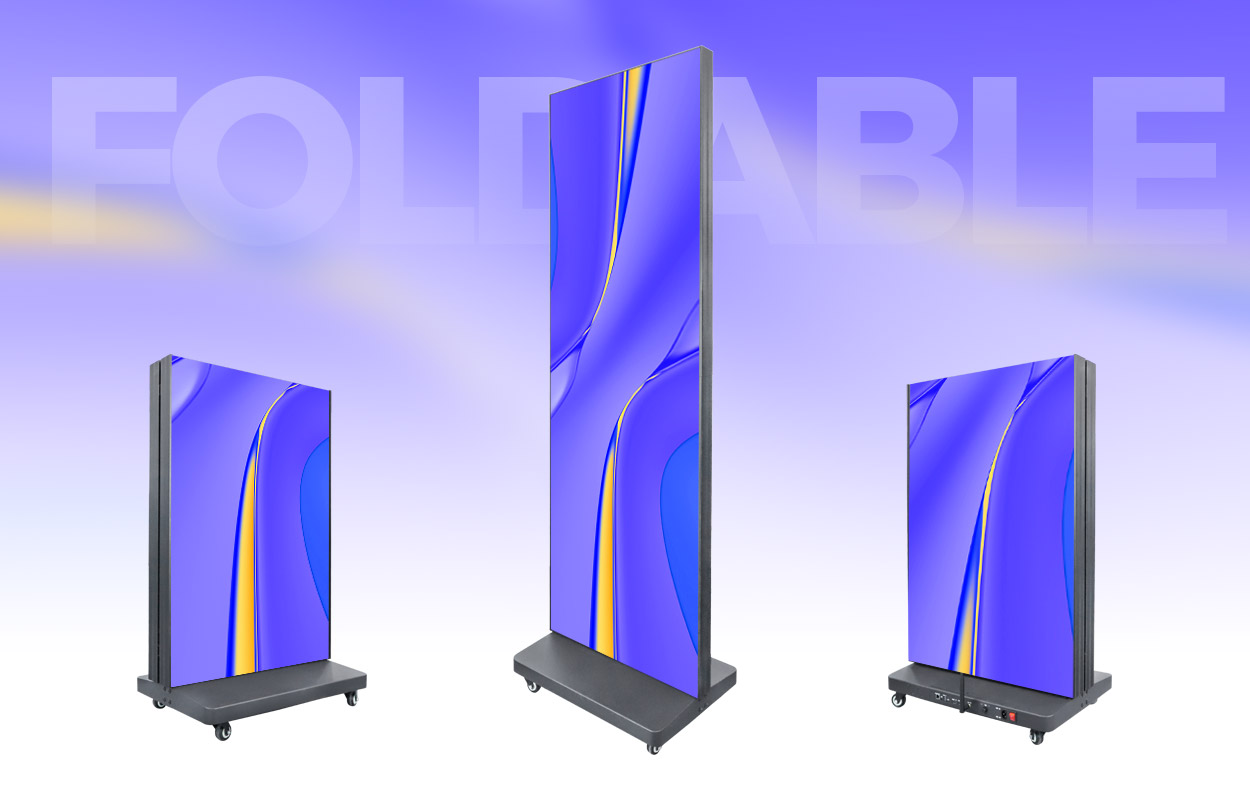

EA1920iP4 Foldable LED Poster Display
The EA1920iP4 is a 640×1920 mm foldable LED poster display built for double-sided indoor advertising. This Folding LED Screen folds to 50% of its open volume, while a 60 mm cabinet, 43.5 kg total weight, four caster wheels and quick locks simplify moving, storage and multi-screen installation. Choose P1.25, P1.53, P1.86, P2 or P2.5 pixel pitch with SMD/GOB or flip-chip COB modules, 600–800 cd/m² brightness and a refresh rate of at least 3840 Hz.

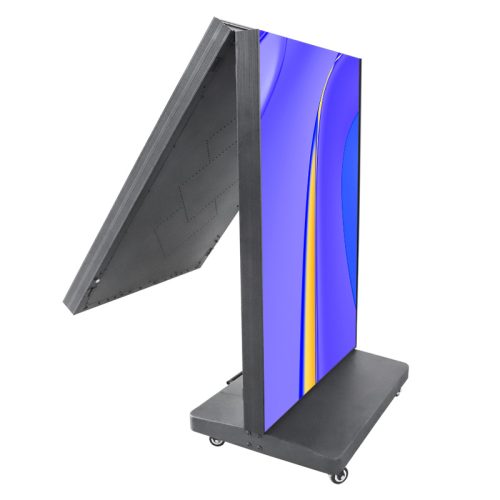

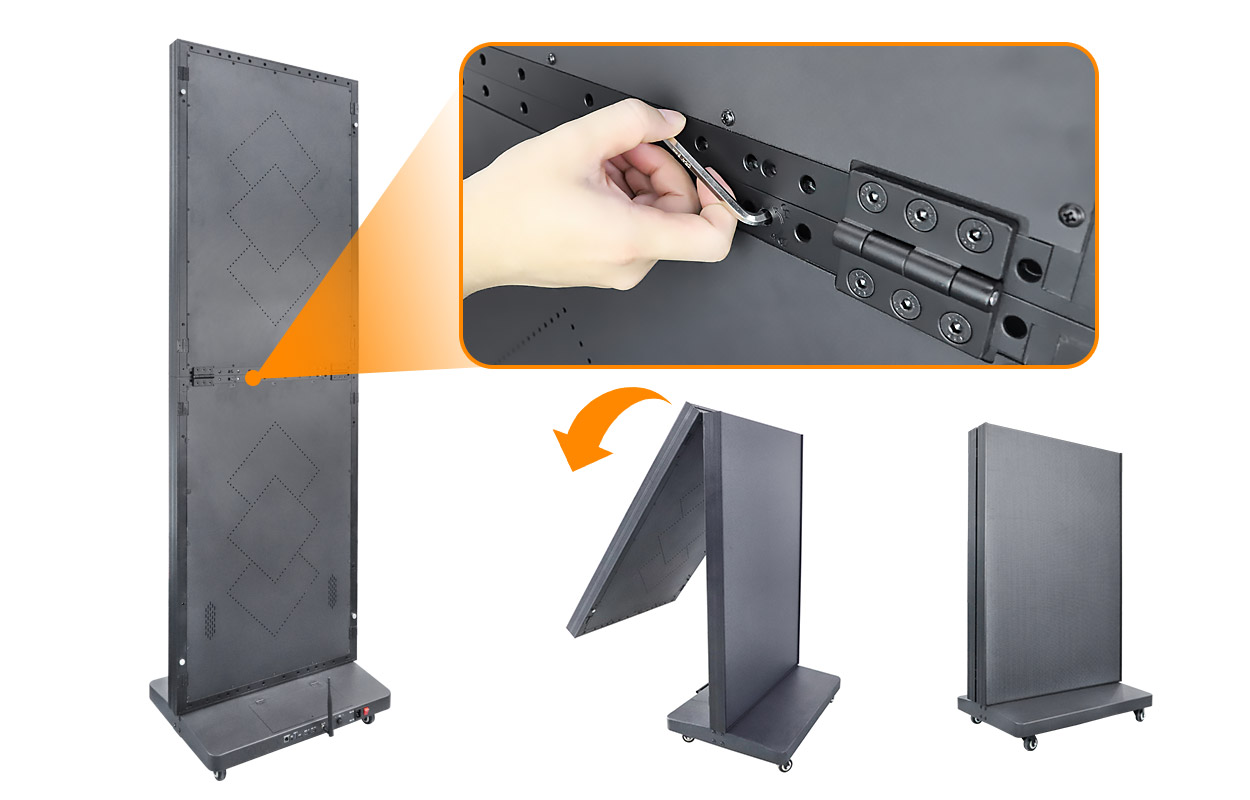

Folding LED Screen with 50% Space-Saving Design
The hinged double-sided frame reduces the unit’s stored volume by up to 50%. Run different content on each side, or unfold and synchronize the display as one wider image for retail promotions, events and showroom presentations.

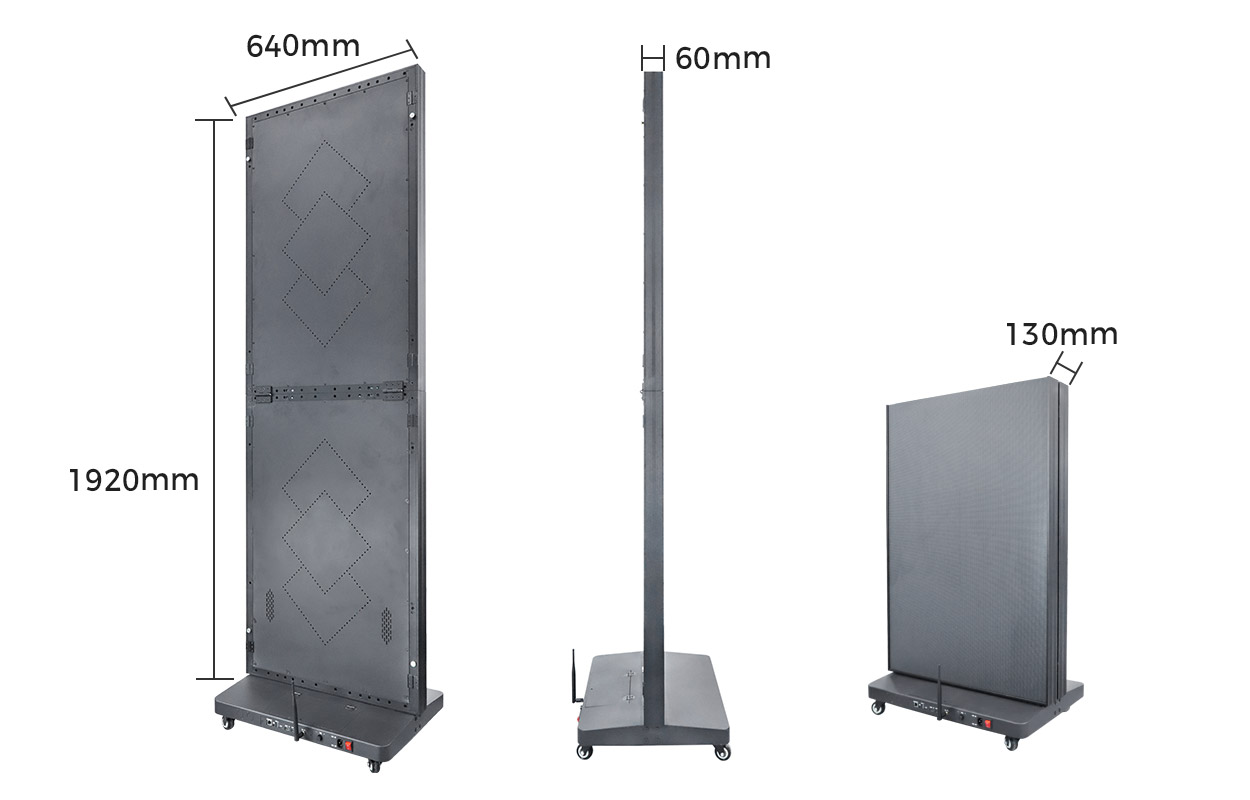

60 mm Ultra-Thin, 43.5 kg Cabinet
The EA1920iP4 cabinet is 60 mm thick and the complete display weighs 43.5 kg. Four caster wheels support easier indoor positioning, while the slim structure reduces the space needed for transport and storage.

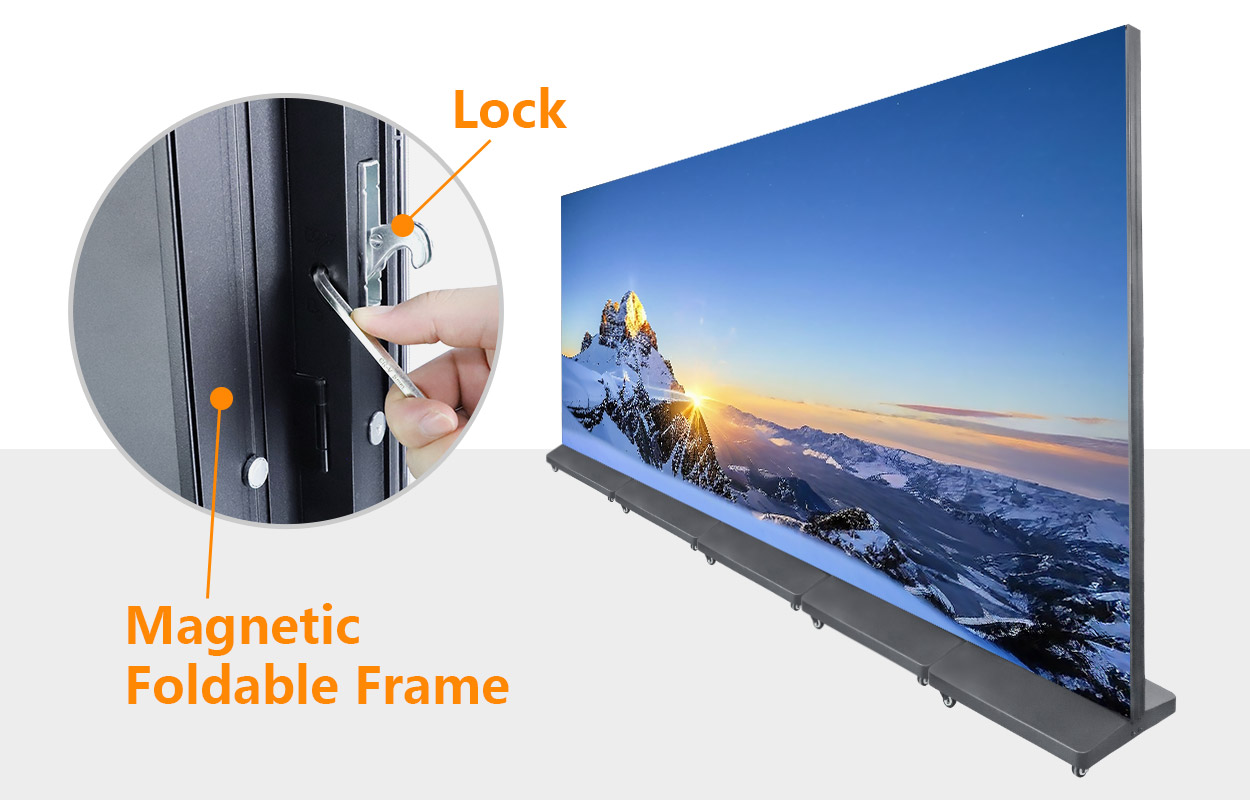

Quick-Lock Multi-Screen Splicing
A quick-lock frame lets multiple EA1920iP4 units join into a larger canvas. Use separate screens for repeated promotions or synchronize them as one continuous image across a wider indoor display.

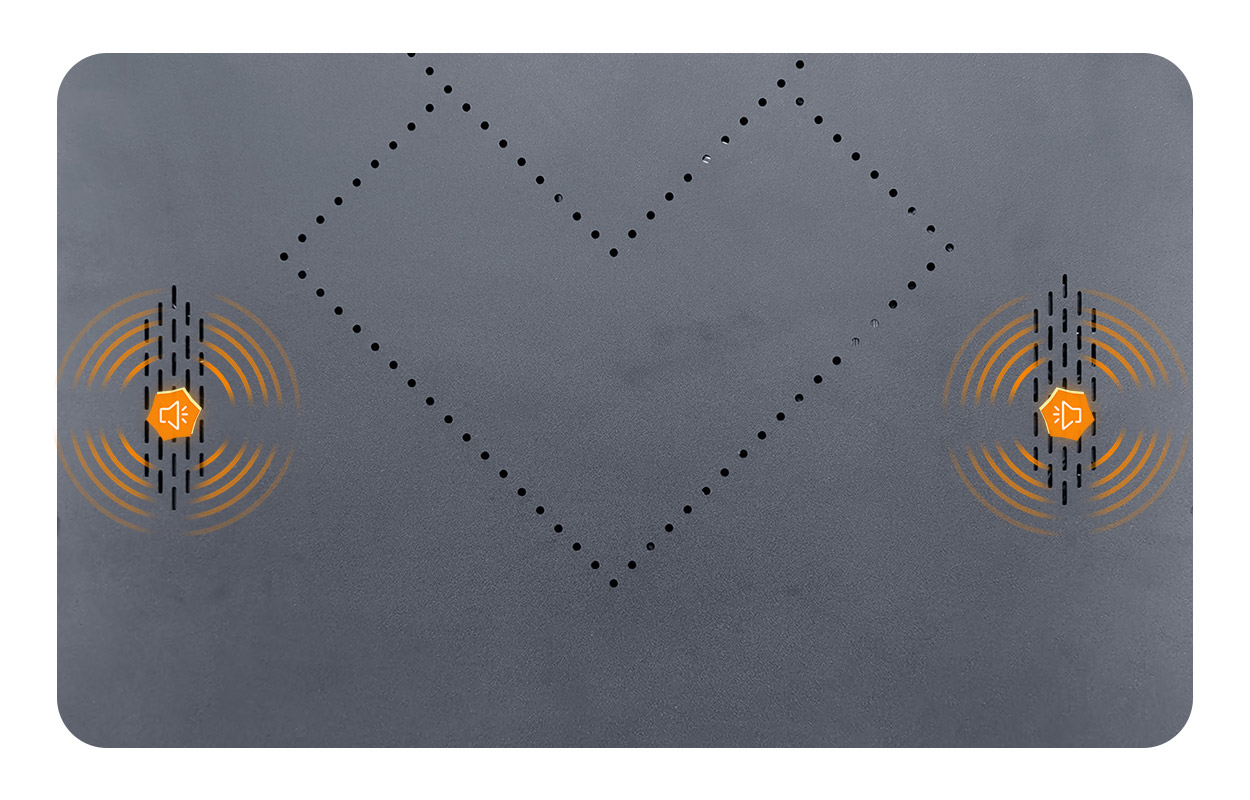

Built-In Speakers for Digital Signage
Built-in speakers play synchronized audio with promotional video, allowing one folding LED screen to deliver a complete audiovisual message without separate floor-standing speakers.
USB 3.0, HDMI, Wi-Fi, SIM and Ethernet
Connect media and control sources through USB 3.0, HDMI, Wi-Fi, a SIM card slot and Ethernet. This combination supports local playback, wired network control and wireless content delivery from common devices.

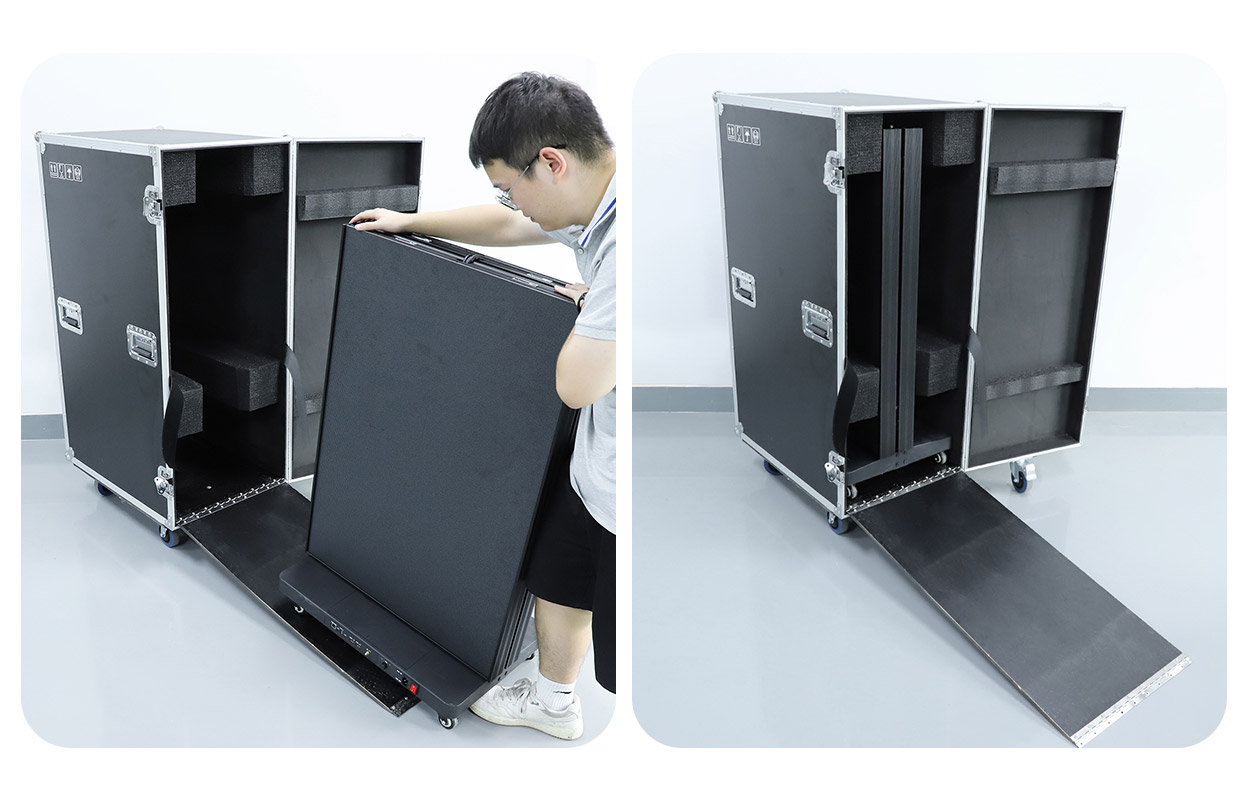

One-Person Folding and Flight-Case Storage
One operator can fold the display into its compact flight case for storage or transport. The folding structure reduces storage volume by up to 50% compared with the open position.

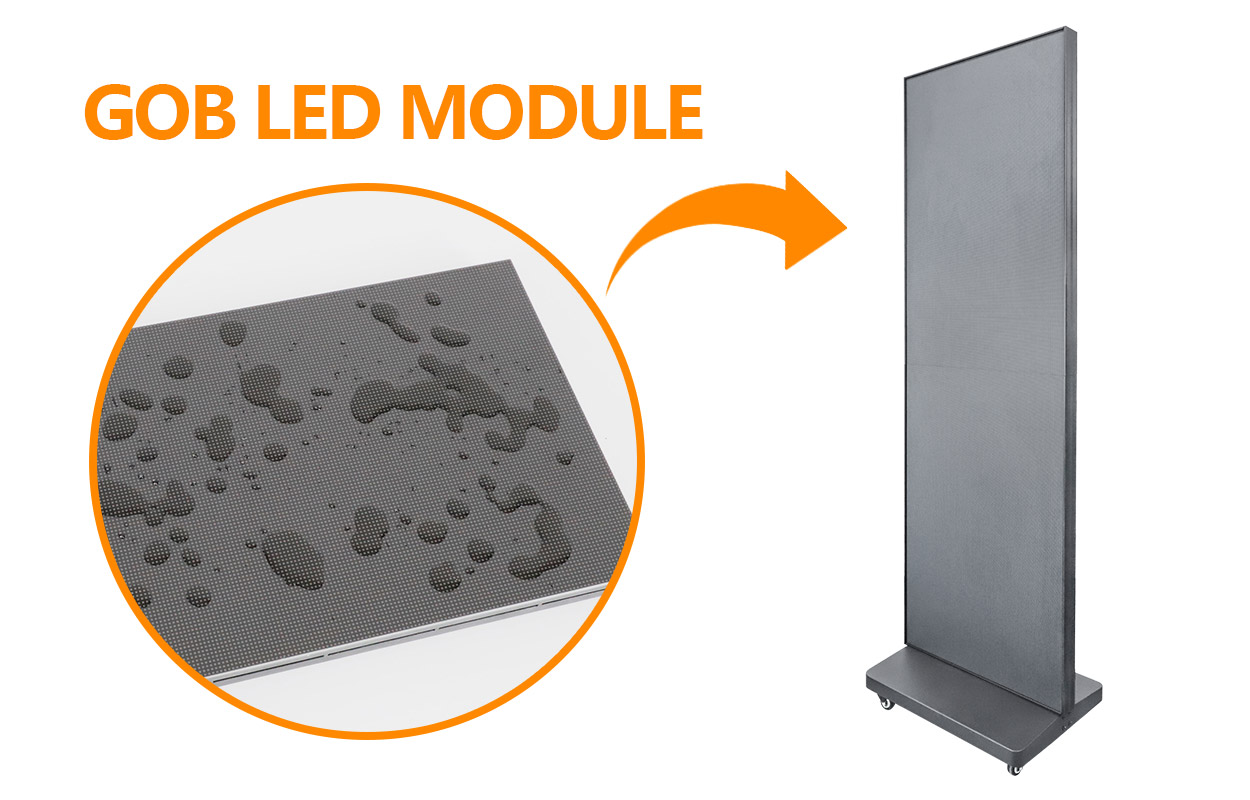

320×160 mm GOB and Flip-Chip COB Modules
This foldable LED poster display uses 320×160 mm SMD/GOB modules, while flip-chip COB options are available at P1.25, P1.53 and P1.86. Across the available configurations, pixel pitch ranges from P1.25 to P2.5, brightness from 600 to 800 cd/m², and refresh rate is at least 3840 Hz.

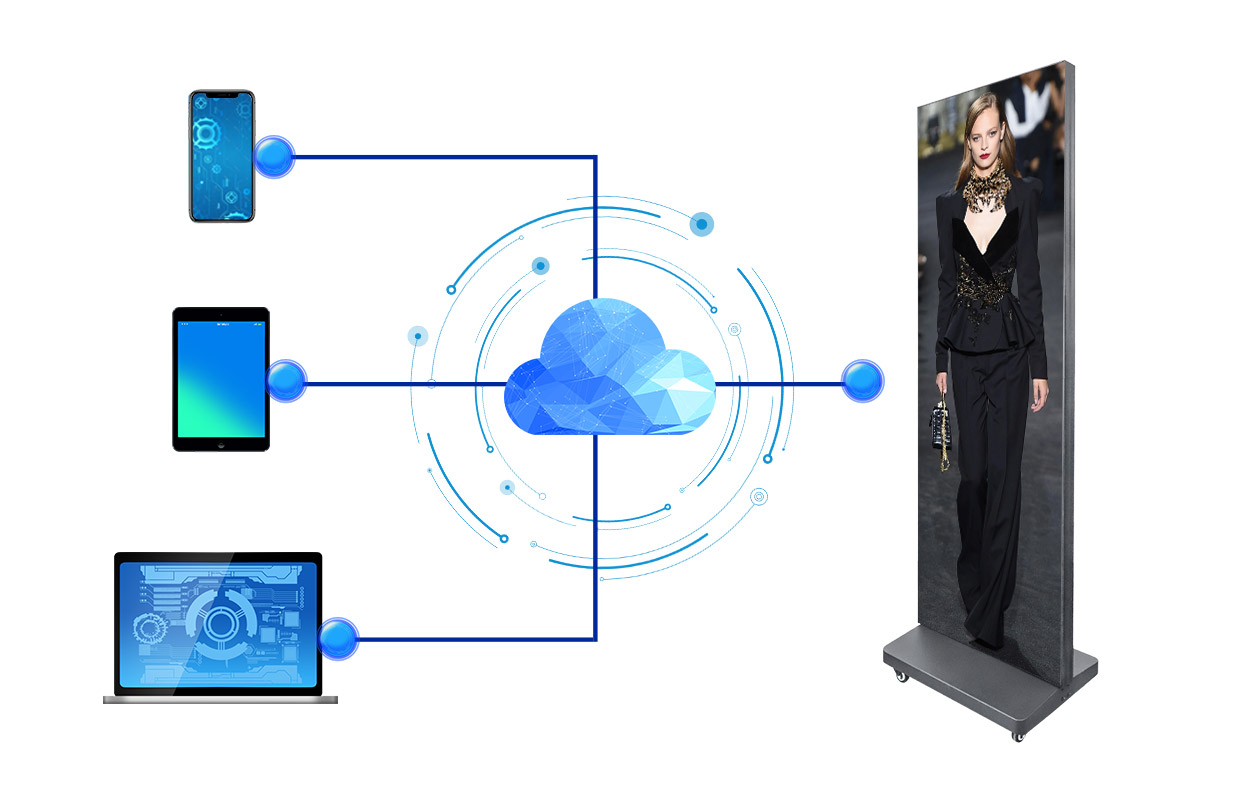

Smart Cloud Content Management
Update content from an iPad, iPhone, Android phone, PC or laptop through Wi-Fi or USB. Smart cloud management supports real-time playback and multi-platform publishing for retail promotions, event schedules and wayfinding.
