NovaStar MRV416-N is a cutting-edge receiving card designed to elevate LED display performance. Whether you’re working on fixed installations or rental setups, this versatile product offers unmatched precision, reliability, and ease of use. In this guide, we’ll explore its features, specifications, capacity, applications, and compatibility with NovaStar control systems. Let’s dive in!

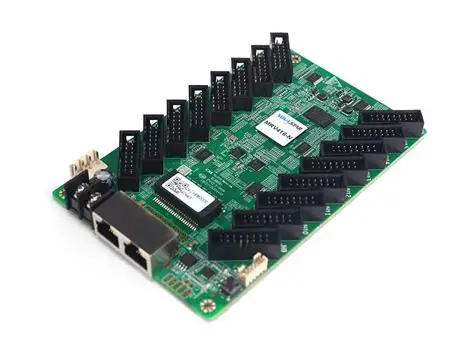

The Novastar MRV416-N receiving card is a high-performance LED controller developed by NovaStar Tech Co., Ltd. Designed for professional-grade LED displays, it supports resolutions up to 512×512@60Hz (PWM driver IC) or 512×384@60Hz (common driver IC) when paired with 8-bit video sources.

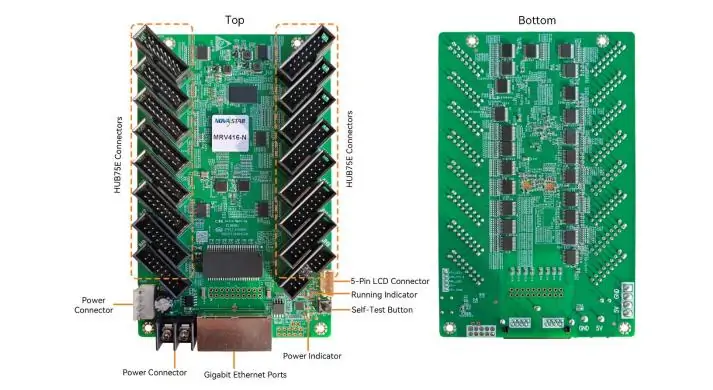

This receiving card stands out due to its 16 standard HUB75E connectors, which allow communication with up to 32 groups of parallel RGB data. This makes it highly adaptable for various on-site configurations, including indoor and outdoor displays.

Key highlights include advanced color management, pixel-level calibration, and innovative features like Ethernet cable disconnection detection. With certifications such as RoHS and EMC Class A, the NovaStar MRV416-N LED receiver card ensures compliance with global standards while delivering exceptional performance.

• Color Management: Supports standard color gamuts like Rec.709, DCI-P3, and Rec.2020, as well as custom gamuts for precise color reproduction.
• 18bit+ Grayscale Enhancement: Boosts grayscale resolution by 4x, minimizing loss at low brightness levels for smoother images.
• Pixel-Level Brightness and Chroma Calibration: Works seamlessly with NovaStar’s calibration system to eliminate inconsistencies in brightness and chroma across pixels.
• Quick Adjustment of Dark or Bright Lines: Corrects splicing discrepancies between modules or cabinets effortlessly.
• Multi-Batch Adjustment: Minimizes display variations caused by differences in production batches.
• Low Latency Mode: Reduces video source latency to just 1 frame when enabled (requires compatible driver ICs).
• 3D Output Support: Enables immersive 3D experiences when paired with a compatible controller.
• Individual Gamma Adjustment for RGB: Fine-tunes red, green, and blue gamma settings for better image uniformity and white balance accuracy.
• 90° Image Rotation: Rotates the display image in multiples of 90° (0°/90°/180°/270°) for flexible orientation options.

• Mapping 1.1: Displays controller number, receiving card number, and Ethernet port information for easy identification.
• Customizable Startup Image: Allows users to set a stored image for startup or during signal interruptions.
• Temperature and Voltage Monitoring: Built-in monitoring eliminates the need for external devices.
• Cabinet LCD Integration: Shows real-time metrics like temperature, voltage, and run time.
• Bit Error Detection: Monitors Ethernet communication quality to troubleshoot network issues.
• Ethernet Cable Disconnection Detection: Tracks disconnections to identify potential link problems.
• Firmware Program Readback: Saves firmware programs locally for backup purposes.
• Configuration Parameter Readback: Stores configuration parameters on your computer for safekeeping.

• Loop Backup: Ensures uninterrupted display even if a fault occurs in the primary or backup line connections.
• Dual Backup of Configuration Parameters: Stores parameters in both application and factory areas for redundancy.
• Dual Program Backup: Prevents abnormal behavior during firmware updates by maintaining two program copies.

Here are the technical details that make the NovaStar MRV416-N LED receiver card a reliable choice:

NovaStar MRV416-N receiving card delivers impressive screen capacity:

• For PWM driver ICs: Up to 512×512 pixels @ 60Hz.
• For common driver ICs: Up to 512×384 pixels @ 60Hz.

These capabilities ensure smooth playback and vibrant visuals, making it ideal for large-scale LED displays.

The versatility of NovaStar MRV416-N LED receiver card makes it suitable for a wide range of applications:

• Fixed LED Billboards: Enhance advertising impact with consistent brightness and vivid colors.
• Rental Stage LED Screens: Deliver seamless visuals for concerts, events, and conferences.
• Indoor/Outdoor Advertising: Ensure durability and performance in diverse environments.
• Conference and Exhibition Displays: Create engaging presentations with precise color management.

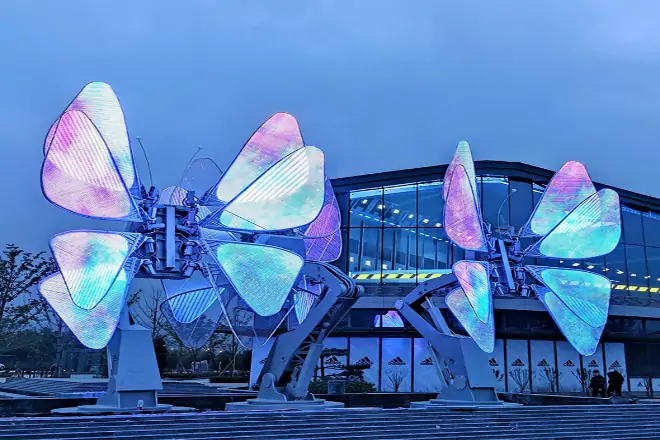

• Creative Installations: Achieve unique designs with 90° image rotation and multi-batch adjustments.

NovaStar MRV416-N receiving card integrates seamlessly with NovaStar’s ecosystem, including:

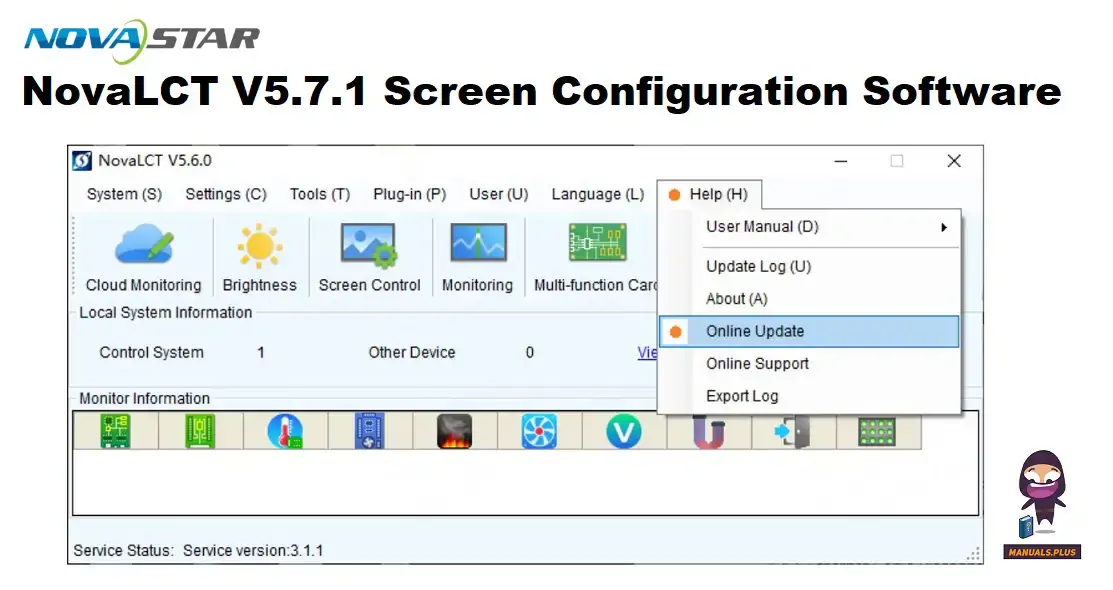

• NovaLCT Software: Facilitates individual RGB gamma adjustments and other advanced settings.
• Calibration Systems: Works with NovaStar’s calibration tools for pixel-level brightness and chroma calibration.
• Controllers Supporting 3D Functionality: Enables stunning 3D output for immersive experiences.

This compatibility ensures a streamlined workflow and maximizes the card’s potential.

NovaStar MRV416-N receiving card is a game-changer for LED display technology. Its robust feature set—including advanced color management, pixel-level calibration, and multiple backups—ensures unparalleled performance and reliability. Whether you’re managing fixed installations, rental screens, or creative projects, this receiving card delivers exceptional results.

For professionals seeking precision, flexibility, and peace of mind, the NovaStar MRV416-N LED receiver card is an investment worth considering. Explore its capabilities today and take your LED displays to the next level!
