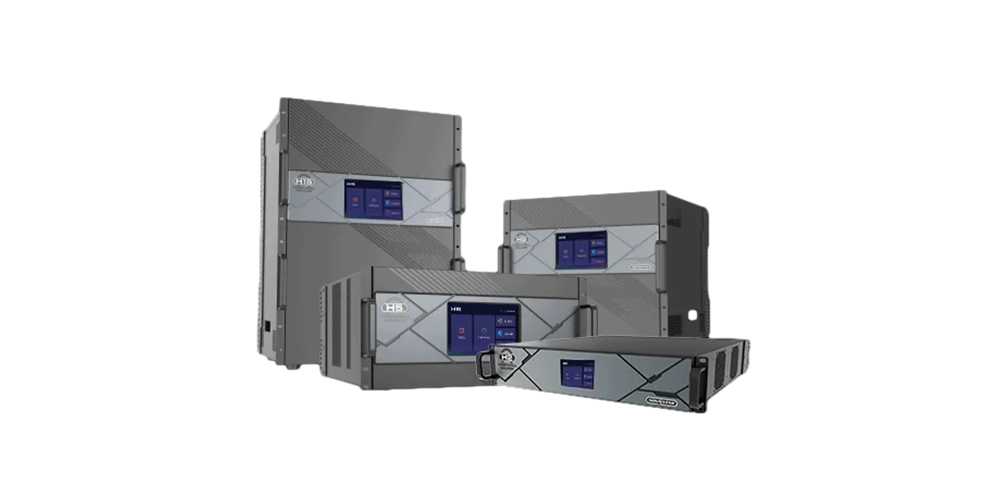

NovaStar H Series: The Ultimate Guide to High-Performance LED Video Splicing Processors

In the world of professional LED display solutions, NovaStar has consistently set benchmarks for performance and reliability. Among its standout offerings is the NovaStar H Series, a line of high-performance video splicing processors designed to cater to the most demanding applications. Whether you’re orchestrating large-scale events, managing control rooms with multiple feeds, or creating immersive retail experiences, the NovaStar H Series provides unmatched capabilities.

This guide will take you through everything you need to know about the NovaStar H Series, from its core features and modular design to practical use cases and detailed specifications.

Table of Contents

1.Top 10 LED Display Manufacturers in Slovakia
2.How to Choose the Right LED Display Manufacturer in Slovakia
3.FAQ–LED Display Manufacturers in Slovakia
4.Conclusion

The NovaStar H Series stands out in the competitive landscape of LED video processors due to its advanced technology and robust design. Here’s why it’s considered a leader:

1.1 Unmatched Pixel Handling:

From small-scale installations to mega-events, the NovaStar H Series can handle pixel capacities ranging from 41.6 million to an impressive 416 million. This ensures that no matter the size or complexity of your project, the processor delivers crystal-clear visuals without any lag or pixelation.

1.2 Simplified Workflows:

Unlike traditional systems requiring numerous controllers, the NovaStar H Series integrates signal processing, splicing, and control into a single unit. This not only reduces setup time but also cuts down on costs significantly.

1.3 Future-Proof Flexibility:

With its modular design, the H Series allows you to swap input/output cards as needed. Whether you require HDMI, fiber, or custom protocols, this flexibility ensures your system remains up-to-date without necessitating new hardware purchases.

For integrators and AV teams, the NovaStar H Series represents a long-term investment in both reliability and creative freedom.

NovaStar’s product ecosystem spans hardware, software, and accessories, providing a comprehensive suite for seamless integration and management.

2.1 True 4K@60Hz Processing

Every model in the NovaStar H Series delivers true 4K resolution (3840×2160@60Hz) with 10-bit color depth and HDR support. Adaptive scaling ensures crisp visuals even when zooming in or out, making it ideal for dynamic content displays.

2.2 Modular Design

Choose from a variety of input cards (HDMI 2.0, fiber, VGA) and output cards to match your project’s needs. For instance:

• Use H_4xfiber cardsfor long-distance signal transmission in stadiums.
• Add H_2xRJ45 preview cardsto monitor outputs in real-time.

2.3 Layer Management

Each output card supports 16 independent layers, enabling seamless overlays of graphics, videos, and live feeds. Key features include rotation, opacity control, and cross-region layouts, which are perfect for:

• Dynamic stage backdrops at concerts.
• Multi-source monitoring in control rooms.

2.4 Industrial Reliability

Built to last, the NovaStar H Series includes:

• Hot-swappable cards for easy maintenance.
• Dual power supplies to prevent downtime.
• Real-time diagnostics displayed on the front-panel LCD screen.

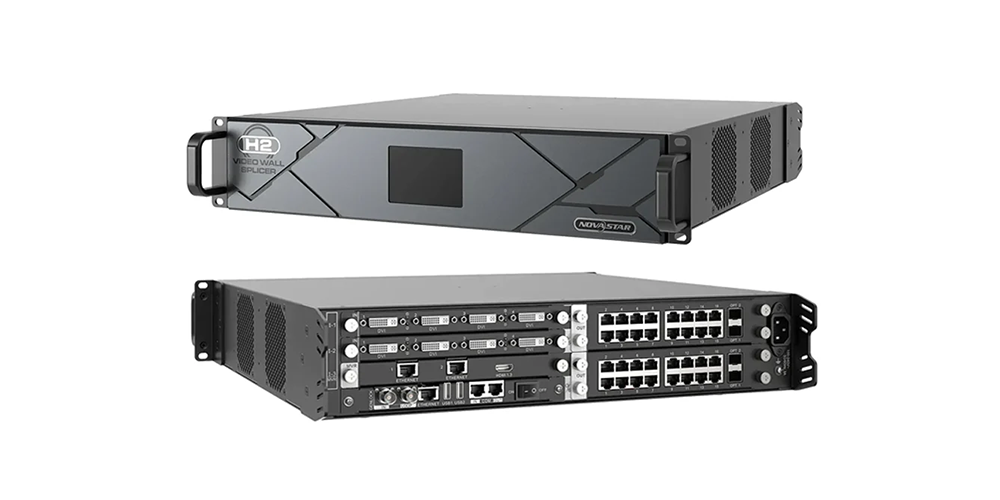

(1) NovaStar H2

Compact 2U design ideal for space-limited installations. Supports 4 input cards (HDMI, VGA, IP cameras) and hot-swappable cards for easy maintenance.

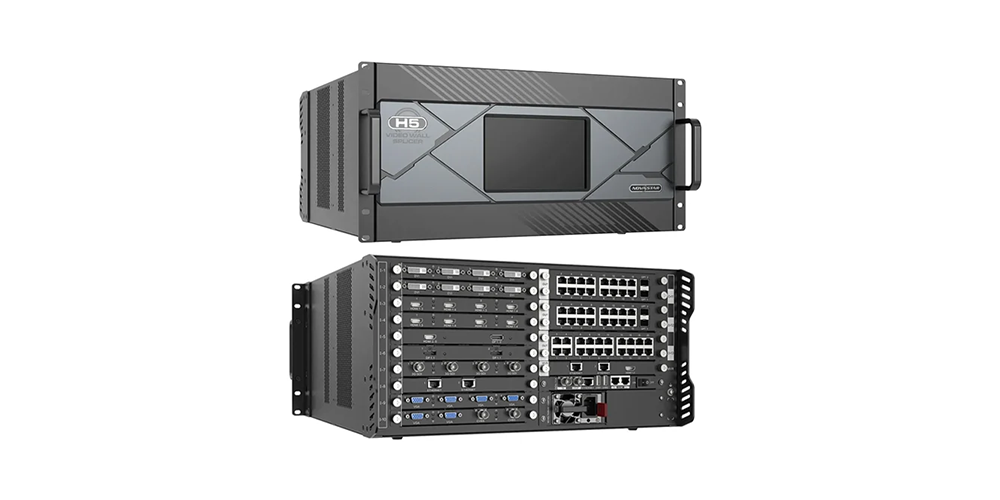

(2) NovaStar H5

Features 10 input cards for multi-source integration, such as live feeds and streaming devices. Optional redundant power supply ensures 24/7 reliability and supports 512 IP camera inputs via H_2xRJ45 IP card.

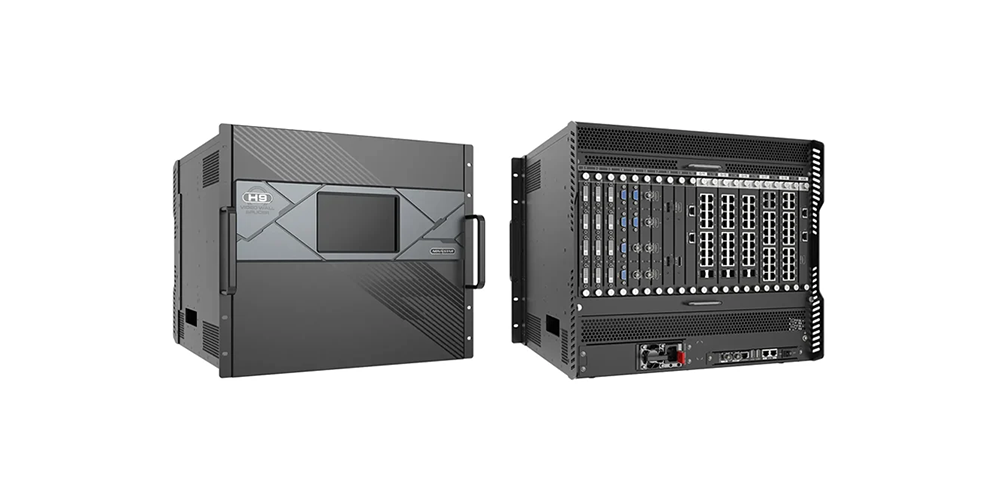

(3) NovaStar H9 (Enhanced)

Doubles output capacity to 10 cards and increases pixel density. Frame synchronization eliminates screen tearing, while supporting 16 layers per card for dynamic overlays.

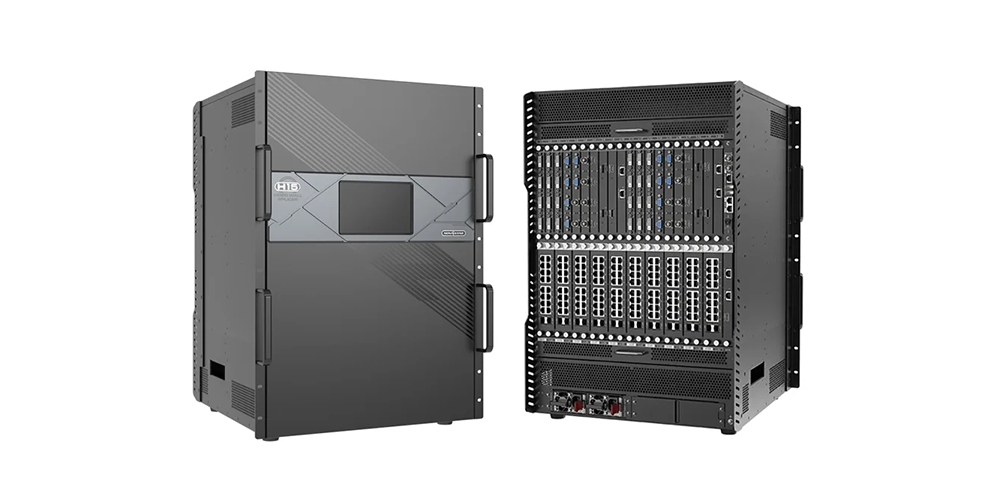

(4) NovaStar H15 (Enhanced)

Supports 16 output cards for ultra-large displays like stadium Jumbotrons. Offers 10 layers per card for simplified multi-screen control and dual power supplies as standard.

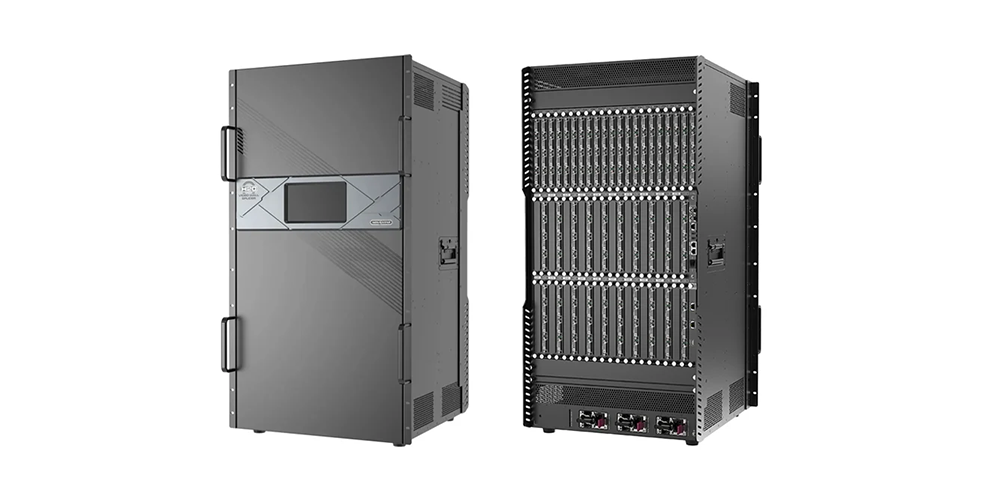

(5) NovaStar H20

Boasts 40 input cards and 20 output cards for massive scalability. The H_4xfiber sending card supports 16K×16K pixel output with 1-frame latency, making it suitable for real-time AR/VR applications.

NovaStar softwares offer tools for configuration, calibration, and remote management, ensuring smooth operation across various scenarios.

4.1 Live Events & Concerts

The NovaStar H20 processor powers immersive visuals at festivals like Tomorrowland, handling 416 million pixels across LED walls, stage floors, and overhead screens. Its 16-layer support allows live mixing of camera feeds, CGI effects, and social media streams.

4.2 Control Rooms

In security hubs or traffic centers, the NovaStar H15 Enhanced seamlessly splices 30+ camera feeds onto a single display. Operators can use preset layouts (up to 2000 saved configurations) to switch views instantly during emergencies.

4.3 Retail & Advertising

For luxury brands, the NovaStar H2 processor drives 4K LED video walls in flagship stores. Its 10-bit color accuracy ensures product visuals match real-life textures, boosting customer engagement.

While pricing varies by configuration, here’s a general range:

• H2: About $483.3 (ideal for small venues).
• H20:About $8683.3 (large installations).

Buying Tips:

• Match pixel needs to models (e.g., H9 Enhanced for 200M+ pixels).
• Budget 10–15% for spare input/output cards.
• Contact LED Display Price support team for custom quotes.

Get free resources to streamline your setup:

• NovaStar H2 Specifications
• NovaStar H5 Specifications
• NovaStar H9 Specifications
• NovaStar H15 Specifications
• NovaStar H20 Specifications
• NovaStar Software

Q1: What makes the NovaStar H Series different from other video processors?

A1: The NovaStar H Series offers true 4K@60Hz processing, modular design, and industrial-grade reliability. It supports up to 16 independent layers per card and features hot-swappable components for minimal downtime.

Q2: Can I upgrade my existing H Series setup easily?

A2: Yes, the modular design allows you to add or replace input/output cards as needed, ensuring your system stays up-to-date without requiring new hardware.

Q3: How many IP cameras can the H Series support?

A3: Depending on the model, the NovaStar H Series can support up to 512 IP camera inputs using the H_2xRJ45 IP card, making it ideal for surveillance and control room applications.

Q4: Is the NovaStar H Series suitable for outdoor use?

A4: Absolutely. With rugged build quality and options for fiber optic connections, the H Series is well-suited for outdoor installations, including sports stadiums and public spaces.

Q5: Where can I find more technical details?

A5: Detailed manuals and specifications for each model are available for download on NovaStar’s official website here.

The NovaStar H Series isn’t just another video processor—it’s a game-changer for LED display control. With True 4K clarity, modular flexibility, and industrial-grade reliability, it caters to a wide array of applications, from live events and control rooms to retail and advertising. By choosing the NovaStar H Series, you’re investing in a solution that scales effortlessly, simplifies workflows, and delivers unparalleled visual performance.

For those ready to elevate their LED projects, the NovaStar H Series is the ultimate tool. Ensure you download the user manuals and explore the full potential of these processors to maximize your setup’s efficiency and impact.
