The Novastar MCTRL4K is a cutting-edge LED display controller designed for high-performance applications, offering advanced features such as HDR, RGB gamma adjustment, low latency, and 3D support. Its robust capabilities make it an ideal choice for large-scale LED displays, including concerts, sports arenas, broadcast studios, and command centers.
This guide will walk you through the key features, technical specifications, applications, comparisons with other NovaStar controllers, and pricing details of the Novastar MCTRL4K. Let’s dive in!
Table of Contents
1.What is the Novastar MCTRL4K?
2.Technical Specifications of the Novastar MCTRL4K
3.Why Choose the Novastar MCTRL4K?
4.Typical Applications of the Novastar MCTRL4K
5.Novastar MCTRL4K Manual Download
6.Novastar MCTRL4K vs Other NovaStar Controllers
7.Novastar MCTRL4K Price
8.FAQs
9.Conclusion
1.What is the Novastar MCTRL4K?

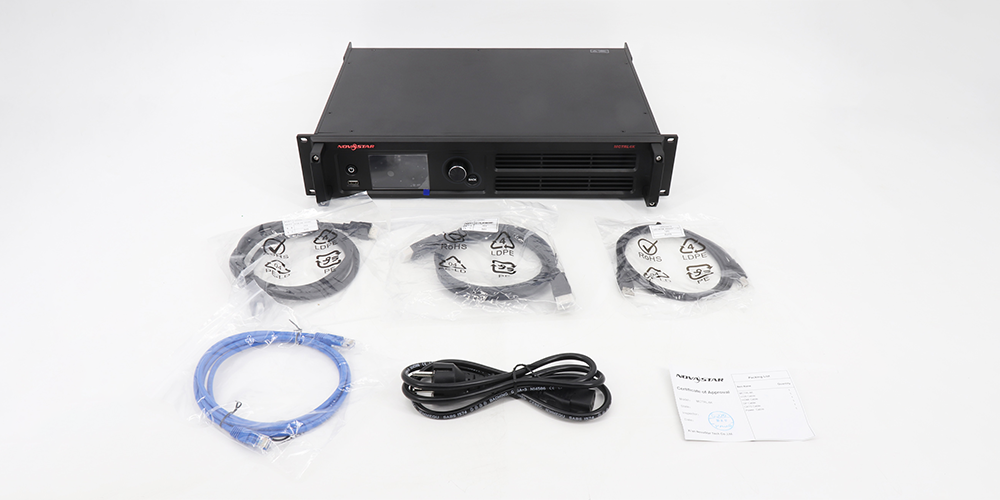

The Novastar MCTRL4K is a professional-grade LED display controller capable of handling ultra-large LED screens with ease. It supports real 4K UHD resolution (4096×2160@60Hz) and offers flexible configuration options to meet diverse project requirements.
Key Highlights:
- Single-unit loading capacity:Up to 4096×2160@60Hz (real 4K UHD).
- Custom resolutions: Supports widths or heights up to 7680 pixels.
- HDR support:Compatible with HDR10 and HLG standards.
- High bit-depth inputs: Supports 8-bit, 10-bit, and 12-bit color depths.
- Ultra-low latency: Reduces delay between input and output to <1ms.

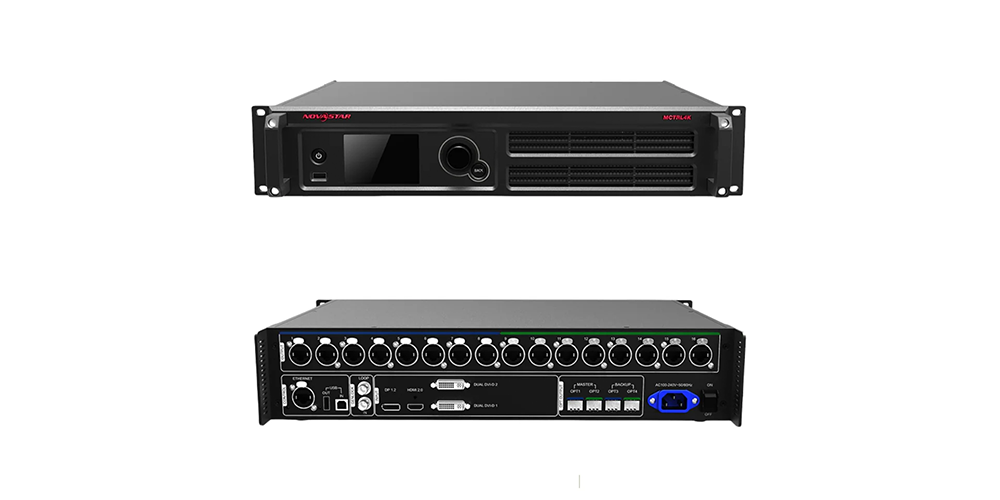

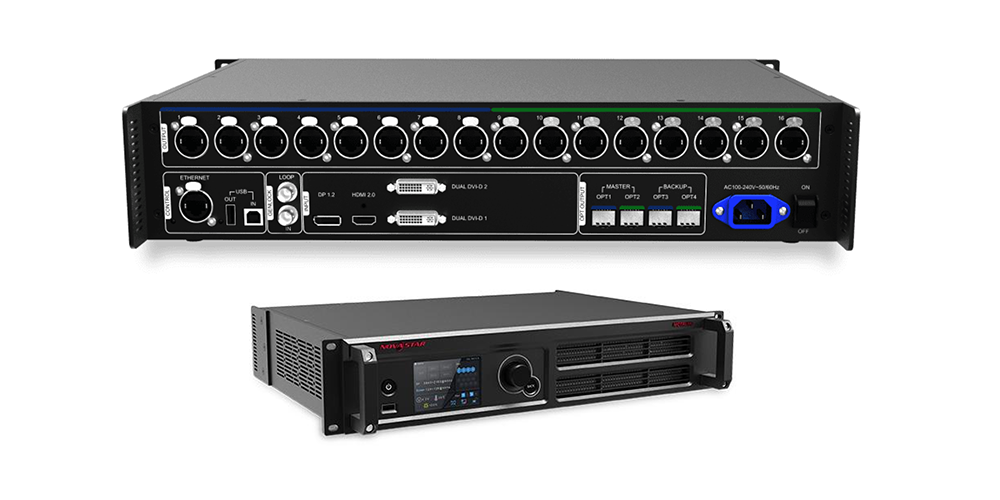

- Multiple outputs: Features 16 Neutrik Gigabit Ethernet ports and 4 optical ports for long-distance transmission.
- 3D functionality: Works with the EMT200 emitter and 3D glasses for immersive experiences.
2.Technical Specifications of the Novastar MCTRL4K
| Feature | Specification |
| Maximum Input | 4096×2160@60Hz (DP 1.2/HDMI 2.0) |
| Pixel Loading Capacity | 8.8 million pixels |
| Maximum Width/Height | 7680 pixels |
| Inputs | 1×DP 1.2, 1×HDMI 2.0, 2×Dual-DVI |
| Outputs | 16×Ethernet, 4×10G Optical ports |
| Color Depth | 8/10/12-bit |
| HDR Support | HDR10, HLG |
| Latency | <1 ms |
| 3D Function | Supported (with EMT200 emitter) |
| Power Supply | AC100-240V, 50/60Hz |
| Dimensions | 482.6 mm × 372 mm × 88.1 mm |
| Weight | 4.6 kg |
3.Why Choose the Novastar MCTRL4K?
The Novastar MCTRL4K stands out for its robust performance, advanced features, and adaptability. Here’s why it’s the top choice for professionals:
3.1 Real 4K Input and Ultra-Wide Output
Unlike many controllers that claim “4K support,” the Novastar MCTRL4K delivers authentic 4096×2160@60Hz resolution via DP/HDMI. It also supports custom configurations, allowing you to create ultra-wide or ultra-long LED walls without pixel limitations.
3.2 HDR & High Color Depth
With HDR10 and HLG support, the Novastar MCTRL4K enhances dynamic range, delivering deeper blacks, brighter highlights, and richer colors. The individual gamma adjustment for RGB ensures uniformity and eliminates white balance offsets, even in low grayscale conditions.
3.3 ltra-Low Latency
In live-event environments, synchronization is critical. The Novastar MCTRL4K reduces latency to <1ms, ensuring near-real-time performance when paired with compatible receiving cards.
3.4 High Output Capacity & Scalability
Featuring 16 Ethernet ports and 4 optical ports, the Novastar MCTRL4K can drive massive LED screens with ease. Cascading up to 10 units allows for scalability, making it suitable for giant installations like stadiums or outdoor venues.
3.5 Flexible Configuration Modes
The Novastar MCTRL4K supports both mosaic mode and multi-card mode, simplifying dual-source scenarios and enabling versatile configurations for complex setups.
3.6 Robust Build for Fixed & Rental Applications
Designed for reliability, the Novastar MCTRL4K operates in temperatures ranging from -20°C to +60°C and withstands humidity levels of 10%–90% RH. Its compact design ensures stability for both fixed installations and touring rental systems.
4.Typical Applications of the Novastar MCTRL4K
The Novastar MCTRL4K excels in a variety of professional settings, thanks to its advanced features and scalability. Below are some of its most common applications:
(1) Concerts and Live Events
For stage performances and music festivals, the Novastar MCTRL4K ensures flawless visuals synchronized with lighting and audio. Its low-latency mode prevents delays, while high refresh rates maintain smooth motion on large rental LED screens.
(2) Stadiums and Sports Arenas
Outdoor LED displays in sports venues require stable transmission and scalability. The MCTRL4K’s optical fiber outputs and massive pixel-loading capacity make it perfect for driving scoreboards, perimeter boards, and other sport LED displays.
(3) Broadcast Studios and Virtual Production
In studios or XR virtual production environments, accurate color reproduction and precise timing are crucial. The MCTRL4K’s HDR10/HLG support and 12-bit color depth make it ideal for live broadcasts, video recording, and virtual sets.
(4) Security Monitoring & Command Centers
High-resolution, ultra-wide displays are increasingly used in monitoring rooms and control centers. The MCTRL4K’s custom resolution support and low latency ensure real-time, sharp visuals for operators.
(5) Rental LED Screen Solutions
For rental companies, the Novastar MCTRL4K provides the flexibility and durability needed for repeated installations and transport. Its scalability allows multiple units to be cascaded, supporting large-scale events without compromising performance.
5.Novastar MCTRL4K Manual Download
6.Novastar MCTRL4K vs Other NovaStar Controllers
When selecting an LED controller, it’s essential to compare models to find the best fit for your project. Below is a comparison of the Novastar MCTRL4K with other popular NovaStar controllers:
| Model | Max Resolution | Output Capacity
(Pixels) |
Input Interfaces | HDR Support | Latency | Applications |
| MCTRL4K | 4096×2160@60Hz | 8.8M | DP 1.2, HDMI 2.0, Dual DVI | HDR10 / HLG | <1 ms | Large concerts, broadcast, virtual production, stadiums |
| MCTRL660 | 1920×1200@60Hz | 2.3M | DVI, HDMI 1.3a | No | ~2 ms | Small stages, fixed installations |
| MCTRL660 Pro | 1920×1200@60Hz | 2.3M | DVI, HDMI 1.4a | No | ~2 ms | Low-latency rental applications |
| MCTRL R5 | 4096×2160@60Hz | 4.1M | 5G-SDI, Dual DVI, HDMI 1.4a | HDR10 | <1 ms | High-end broadcast, virtual production |
7.Novastar MCTRL4K Price

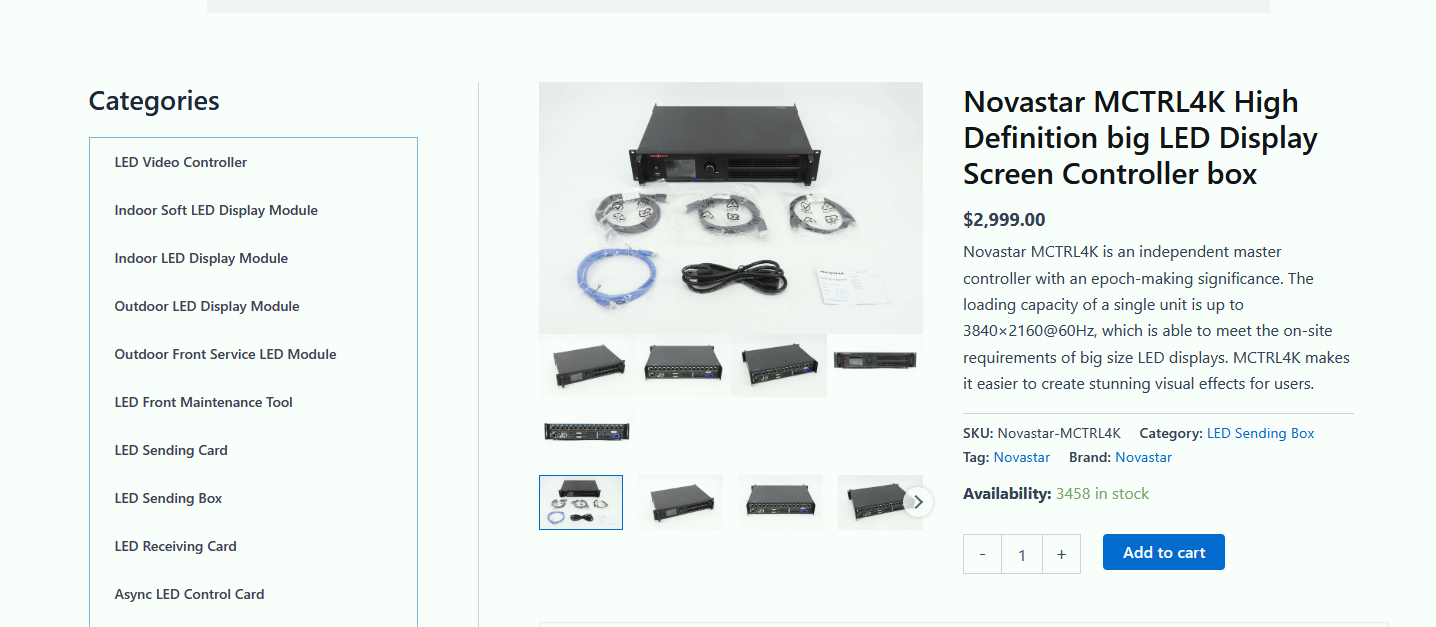

The Novastar MCTRL4K price typically ranges from $2,200 to $4,000 per unit, depending on the supplier, region, and purchase volume. As of 2025, the average price is around $3,590, though fluctuations in exchange rates may affect pricing.
For bulk orders or integrated solutions, resellers often offer competitive pricing when combined with compatible receiving cards or software licenses.
Tip: Contact us for the latest quotation—we guarantee the best price in the market!
8.FAQs
Q：What is the maximum resolution for Novastar MCTRL4K?
The Novastar MCTRL4K supports resolutions up to 4096×2160@60Hz with a maximum width or height of 7680 pixels.
Q：What are the dimensions of the MCTRL4K?
With rack rails: 482.6 x 372 x 96 mm (WxDxH)
Without rack rails: 435.6 x 330 x 89 mm (WxDxH
Q：What is the loading capacity of MCTRL4K?
A single unit features a loading capacity of up to 4096×2160@60Hz.
9.Conclusion
The Novastar MCTRL4K redefines LED display control technology with its combination of real 4K input, HDR capability, ultra-low latency, and robust output design. Whether you’re working on a concert, stadium, or broadcast studio project, the Novastar MCTRL4K ensures top-tier image performance and operational stability.
For the latest Novastar MCTRL4K price and availability, feel free to contact us. We’re here to help you find the perfect solution for your LED display needs!
