In today’s visual technology landscape, high-quality image processing is essential for delivering truly immersive and impactful content. The NovaStar HDR Master 4K video processor stands out as an advanced solution designed to elevate LED display performance with exceptional clarity and precision.
Whether used for events, stage productions, or commercial LED screens, this powerful processor ensures superior image quality, smooth playback, and reliable operation. In this technical guide, we’ll break down its key features, specifications, and core functions to help you fully understand its capabilities.
Table of Contents
1.Why Choose the Novastar CVT8-5GM?
2.Key Features of the Novastar CVT8-5GM
3.Technical Specifications of the Novastar CVT8-5GM
4.Applications of the Novastar CVT8-5GM
5.Installation Tips for the Novastar CVT8-5GM
6.Advantages of Using Multi-Mode Fiber with the Novastar CVT8-5GM
7.Conclusion

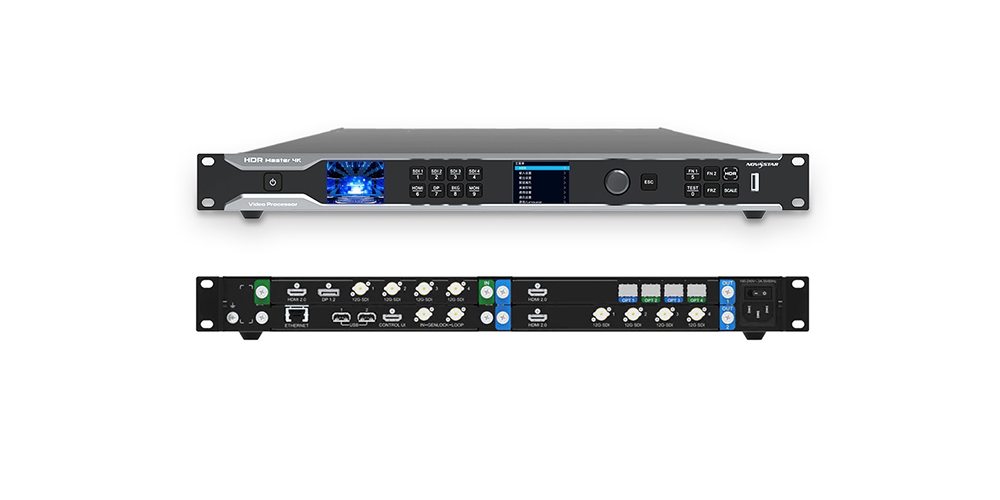

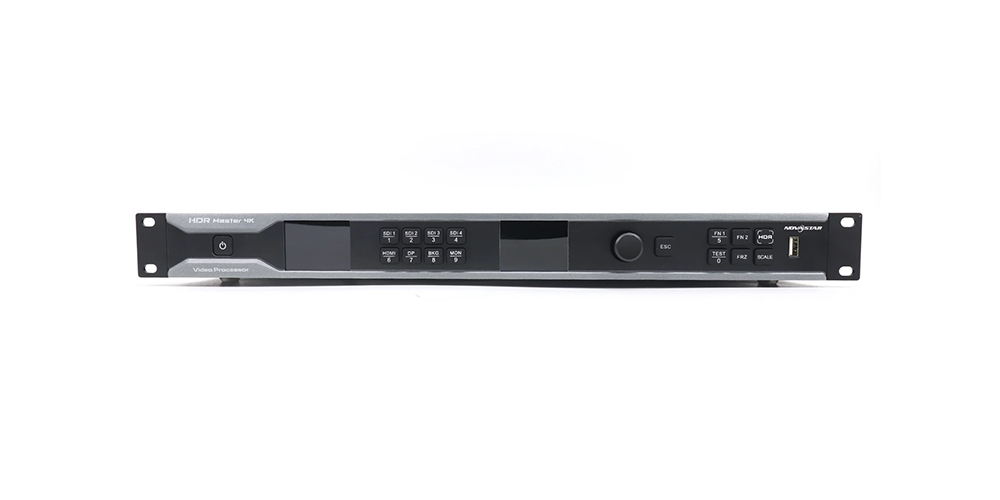

1.Novastar HDR Master 4K Video Processor
The Novastar HDR Master 4K is an award-winning video processor engineered to convert Standard Dynamic Range (SDR) content into High Dynamic Range (HDR) format. This processor leverages advanced algorithms and scaling technologies to deliver exceptional image quality, wider color gamuts, deeper color depths, and larger dynamic ranges.
Key highlights include:
- Full 4K input and output connectors.
- Free conversion between SDR and HDR10/HLG formats.
- Abundant connectivity options, including HDMI 2.0, DP 1.2, and 12G-SDI via swappable cards.
- Compact design with remarkable input/output density.
This processor is ideal for professionals seeking cutting-edge solutions for high-end rental setups, stage control systems, and small-pitch LED displays.
2.What Are SDR and HDR?
Before diving deeper into the capabilities of the Novastar HDR Master 4K, it’s essential to understand the difference between SDR and HDR:
SDR (Standard Dynamic Range): Traditional video imaging standard with limited brightness levels and color depth. While functional, SDR lacks the vibrancy and detail required for modern displays.
HDR (High Dynamic Range): A groundbreaking advancement in imaging technology that offers higher luminance, richer colors, and finer details in both bright and dark areas. HDR enhances the realism of visuals, making them more immersive.

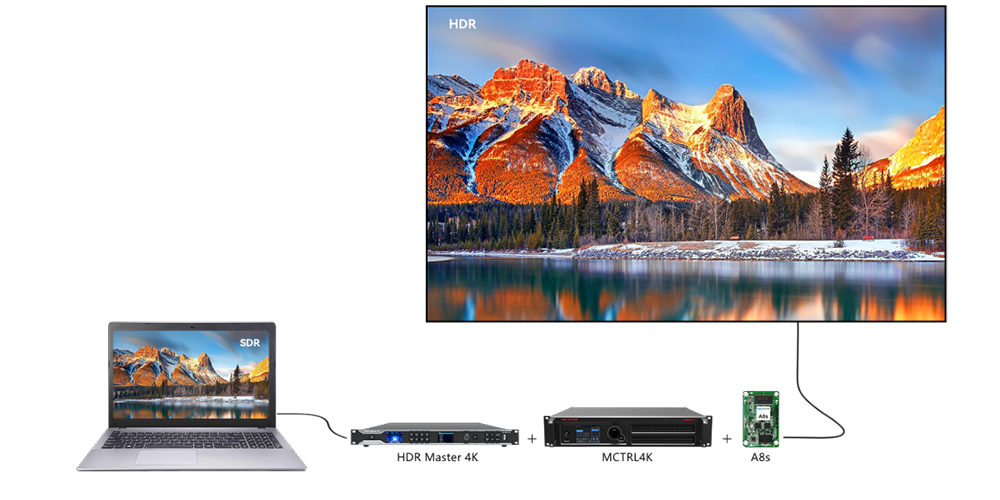

The Novastar HDR Master 4K bridges the gap between SDR and HDR by converting standard content into HDR-like visuals, ensuring every display achieves lifelike quality.
3.Notable Features of the Novastar HDR Master 4K Video Processor
The Novastar HDR Master 4K is packed with innovative features designed to enhance image quality and operational flexibility:
(1) Image Quality Enhancement
Equipped with NovaStar’s proprietary SuperView III scaling algorithm, this processor eliminates issues like data loss, rough edges, and blurring. It also allows users to adjust contrast gain and low grayscale gain for optimal output quality.
(2) Screen Scaling
When the resolution of the input source doesn’t match the physical resolution of the LED screen, the Novastar HDR Master 4K scales the image seamlessly, ensuring smooth playback without distortion.
(3) Signal Conversion
The processor supports free conversion between SDR, HDR10, and HLG formats. Additionally, it facilitates signal conversion across multiple interfaces, including HDMI 2.0, DP 1.2, and 12G-SDI.
(4) Input Hot Backup
For uninterrupted operation, the processor includes an input hot backup function. If one input source fails, the system automatically switches to a backup source, preventing screen blackouts.
(5) Layer Settings
Users can customize layers, apply masks, crop inputs, and adjust opacity to create dynamic visual effects tailored to specific needs.
4.Specifications of the HDR Master Nova 4K Processor
Here are the key specifications of the Novastar HDR Master 4K:
| Category | Specification |
| Input Resolution | Up to 4K×2K@60Hz |
| Output Resolution | Up to 8K×1K@60Hz |
| Connectors | HDMI 2.0, DP 1.2, 12G-SDI |
| Dynamic Range | SDR, HDR10, HLG |
| Bit Depth | 8-bit, 10-bit, 12-bit |
| Power Consumption | Max. 120W |
| Dimensions | 482.6 mm × 442.5 mm × 50.5 mm |
| Weight | Net: 7.5 kg; Gross: 12.1 kg |
| Operating Temperature | 0°C to 45°C |
With these robust specifications, the Novastar HDR Master 4K caters to demanding applications while maintaining reliability and performance.
5.How Does the Novastar HDR Master 4K Video Processor Work?
The Novastar HDR Master 4K works by analyzing SDR content and enhancing its dynamic range, color gamut, and bit depth to meet HDR standards. Here’s how it operates:

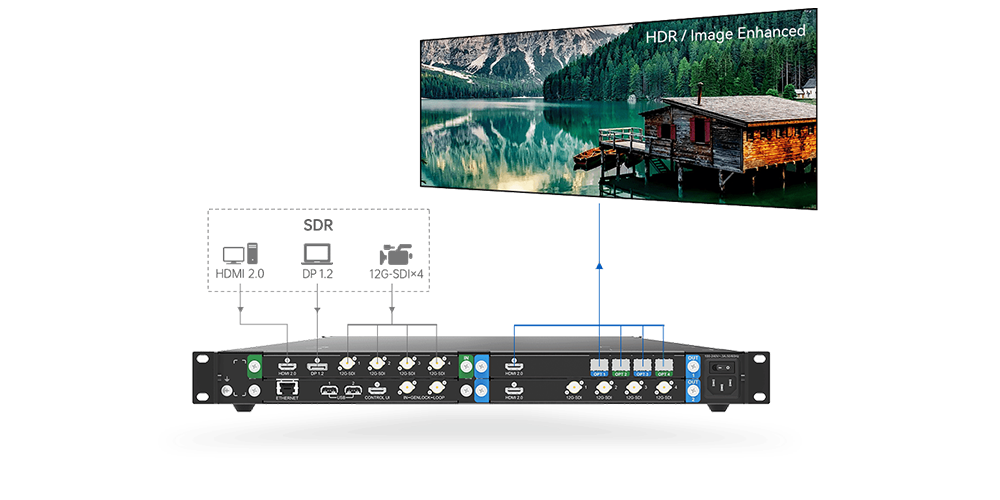

- SDR to HDR Conversion: The processor converts SDR content into HDR10 or HLG formats, enriching colors and improving brightness levels.
- Image Quality Enhancement: Even if your display doesn’t support HDR, the processor’s enhancement function boosts the dynamic range and color gamut for an HDR-like effect.
- Output Customization:Users can adjust output resolutions, color spaces, sampling rates, and bit depths to suit their specific requirements.
- Flexible Connectivity: With multiple input/output options, the processor adapts to various workflows, from short-distance HDMI connections to long-distance optical fiber transmissions.
By combining advanced algorithms with versatile connectivity, the Novastar HDR Master 4K ensures flawless performance in any setup.
6.FAQ
Q1: Is the Novastar HDR Master 4K suitable for rental LED displays?
Yes, its flexibility, high performance, and low latency make it ideal for rental LED screens used in events and concerts.
Q2: Does it support SDR content?
Yes. It can process both SDR and HDR signals and convert between them when needed.
Q3: What industries benefit most from this processor?
Broadcasting, live events, XR studios, control rooms, and high-end advertising applications.
Q4: Is it difficult to operate?
No. With NovaStar’s control software, users can easily configure and manage the system.
Q5: Can it handle large LED video walls?
Yes. It is designed to support large-scale LED display systems with high pixel capacity.
7.Conclusion
The Novastar HDR Master 4K video processor is a game-changer for anyone seeking top-tier image processing capabilities. Its ability to convert SDR content into HDR, coupled with advanced scaling and customization options, makes it an indispensable tool for professionals in the LED display industry. Whether you’re managing large-scale events, creating immersive stage designs, or optimizing commercial displays, the Novastar HDR Master 4K delivers unmatched performance and reliability.
If you’re ready to take your visual projects to the next level, consider integrating the Novastar HDR Master 4K into your workflow. For more information or inquiries, feel free to reach out to us!
