Novastar MX6000 Pro video wall controller :Features & Function Overview

Novastar MX6000 Pro video wall controller delivers exceptional performance with its 8K support, low latency, and advanced features like real-time monitoring, multi-layer control, and precise color correction.This article explores the MX6000 Pro’s key features, specifications,Function and use cases.Unlock your new LED display control solution now!

catalogue

1.What is the Novastar MX6000 Pro video wall controller?

2.Specifications of Novastar MX2000 Pro video wall controller

3.How Novastar MX6000 Pro Enhances Image Quality and Performance

4. Input and Output Card Options for MX6000 Pro video wall controller

5.Real-Time Monitoring & Multi-Layer Support for Novastar MX6000 Pro

6.Understanding MX6000 Pro’s Load Capacity and Bandwidth Options

7.Applications and Use Cases for Novastar MX6000 Pro Controller

8.FAQs

9.conclusion

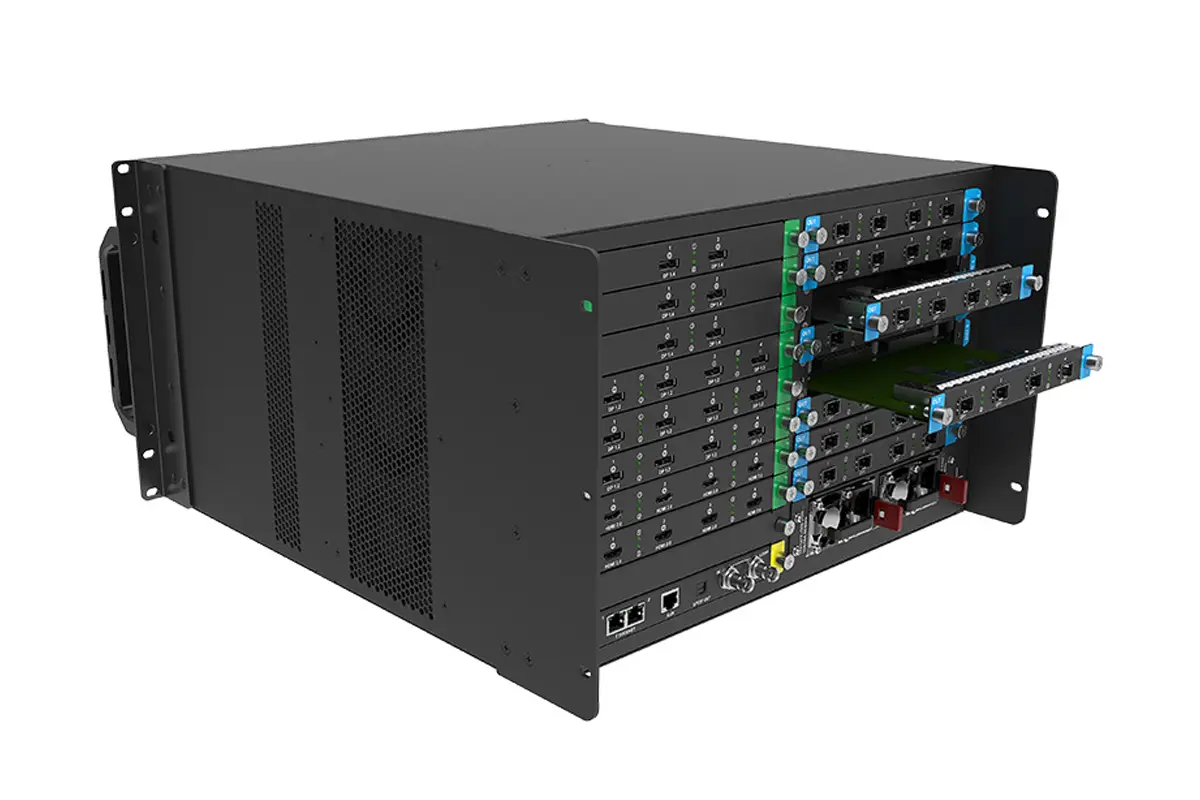

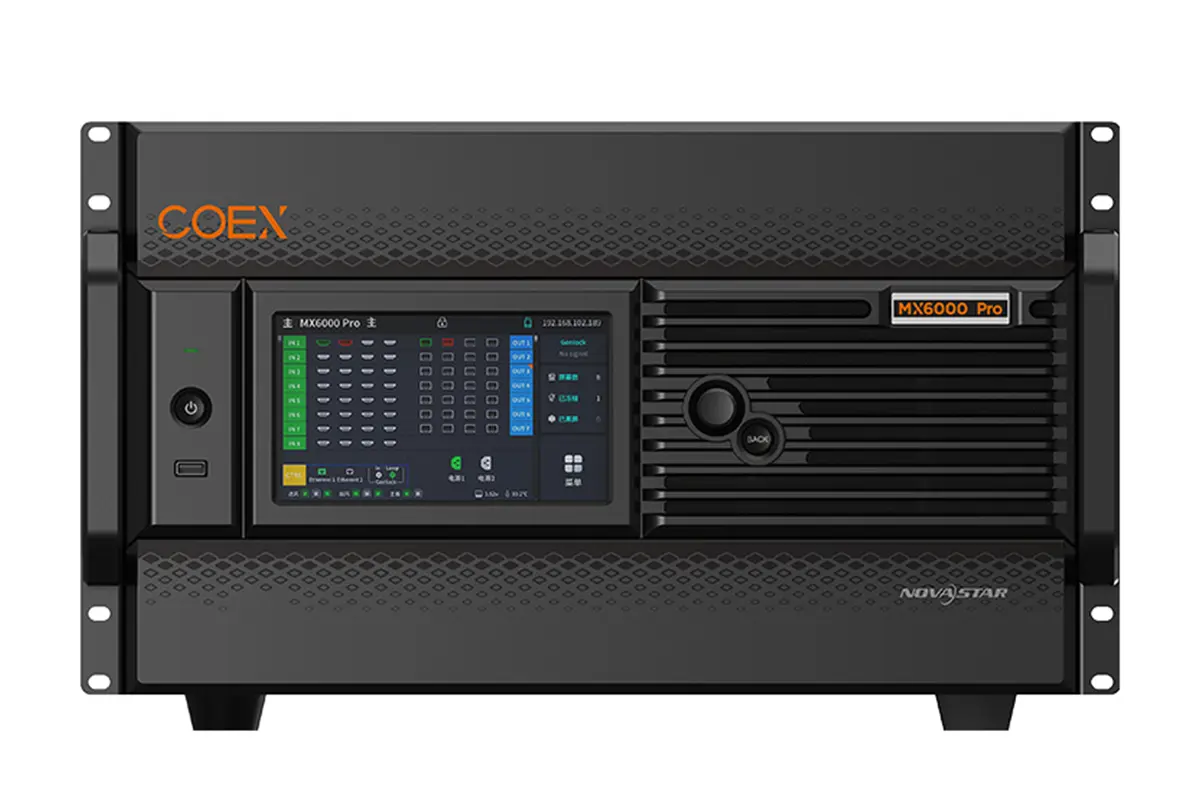

MX6000 Pro is a professional-grade video wall controller engineered for large-scale LED displays. It supports resolutions up to 8K, making it ideal for applications requiring ultra-high-definition visuals. Designed with flexibility and scalability in mind, the MX6000 Pro features a modular card-based architecture that allows users to configure input and output cards based on specific project requirements. Its compact 6U design houses up to 32x 4K or 8x 8K video inputs, with a maximum load capacity of 141 million pixels.

As part of the NovaStar COEX ecosystem, the MX6000 Pro integrates seamlessly with other components, including fiber converters and receiving cards, to deliver stable and high-quality performance.

Below is a detailed breakdown of the MX6000 Pro’s technical specifications, highlighting its robust capabilities:

Feature	Specification
Input Card Slots	8 slots (supports 7 types of input cards)
Output Card Slots	8 slots (supports 2 types of output cards)
Maximum Load Capacity	141 million pixels
Supported Resolutions	Up to 8K (7680×4320@30Hz)
Frame Rate	Up to 360 Hz (dependent on hardware configuration)
Color Depth	12-bit, 10-bit, and 8-bit supported
HDR Support	HDR10, HLG, SMPTE ST 2084, SMPTE ST 2086
Latency	0-frame latency (less than 1 ms)
Ethernet Ports	1G/5G bandwidth options
Power Supply	Dual power supply backup (100-127V~/200-240V~, 15A/10A, 50/60Hz)

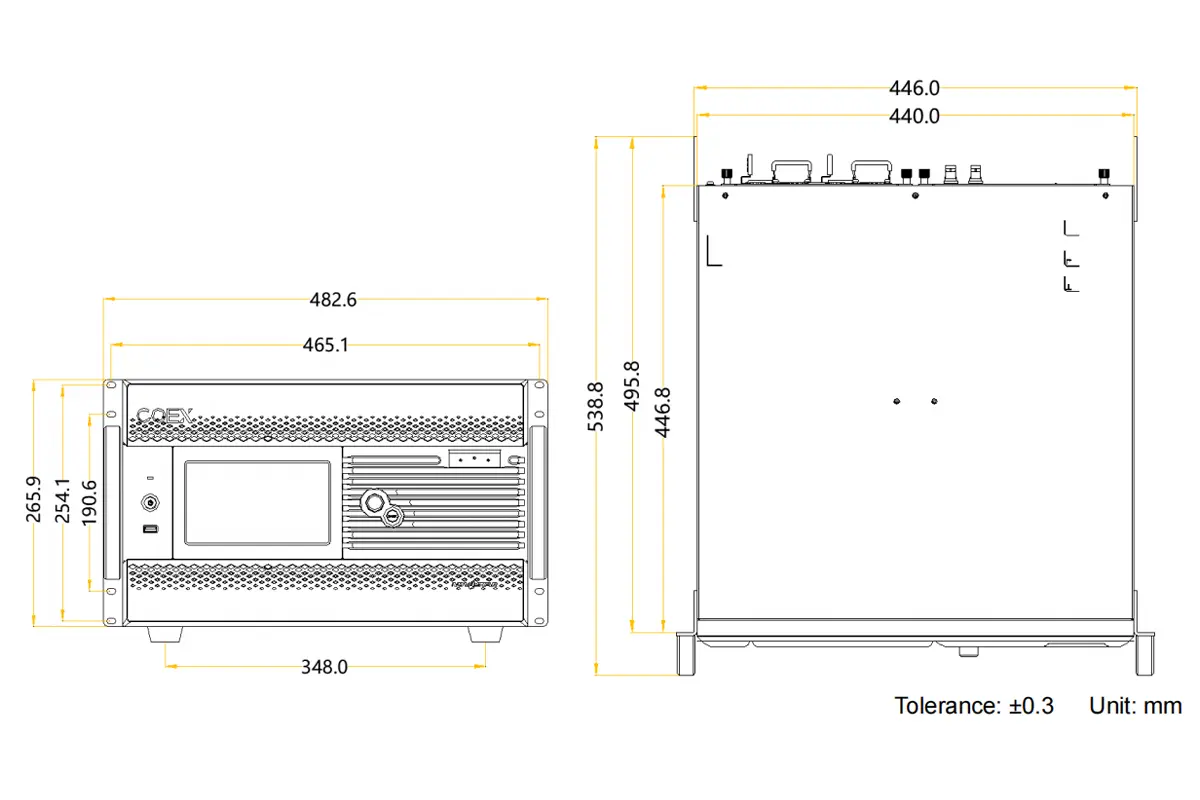

Dimensions	482.6 mm × 282.9 mm × 538.8 mm (Height includes foot pads)
Weight	31 kg (without cards)

The MX6000 Pro video wall controller excels in delivering precise color reproduction and

• enhanced image quality. Key features include:
  12-Bit Color Depth: Ensures smooth gradients and accurate color representation, essential for professional-grade displays.
• 14-Channel Color Correction: Allows fine-tuning of hue, saturation, and brightness for black, white, and 12 standard colors derived from RGB.
• 3D LUT Support: Enables users to apply custom color mapping using .cube files with 17×17×17 accuracy.
• Dynamic Booster: Analyzes each frame in real-time to improve contrast and detail while reducing power consumption.

With support for HDR10 and HLG, the novastar coex MX6000 Pro ensures vibrant and lifelike visuals. Additionally, its ability to handle frame rates up to 360 Hz makes it suitable for fast-paced content, such as sports broadcasts and e-sports events.

When paired with NovaStar’s calibration tools, the MX6000 Pro video wall controller achieves uniformity across all grayscales, dramatically improving image clarity and consistency.

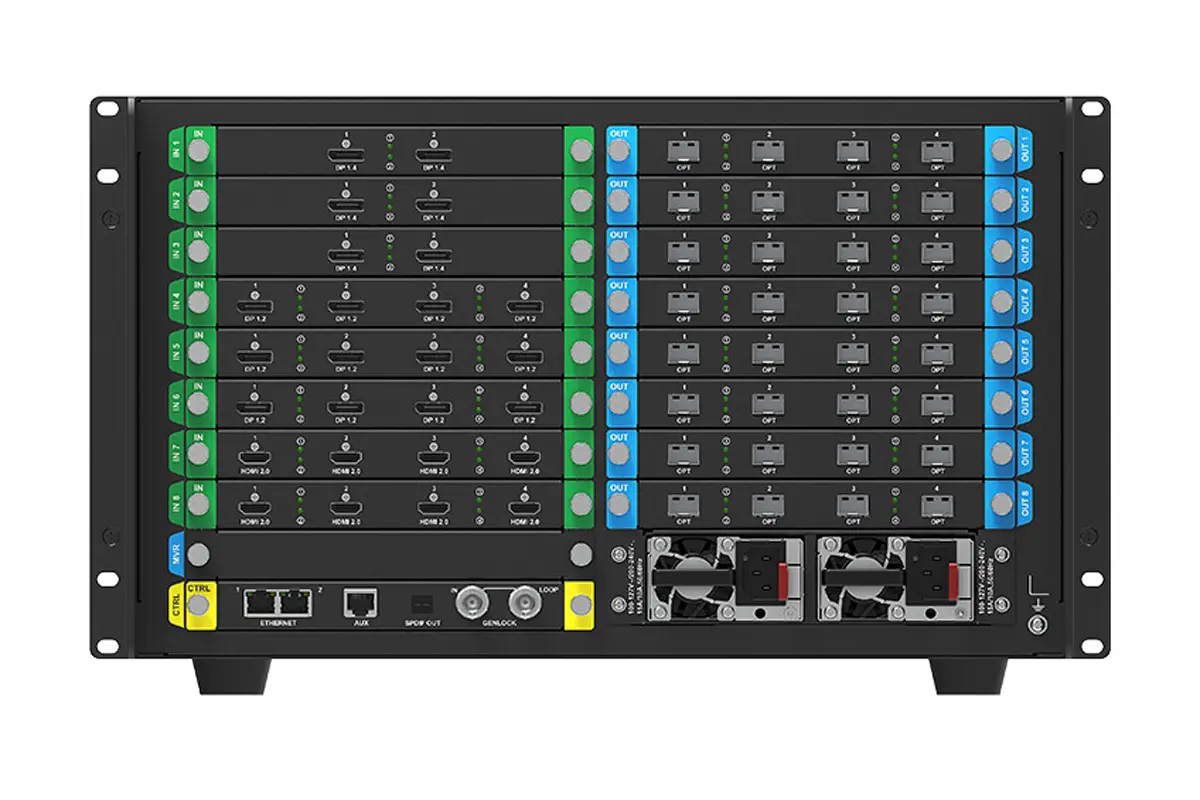

MX6000 Pro supports up to seven different types of input cards, catering to diverse video sources:

Input Card Type	Ports	Max Resolution	Frame Rate
4K HDMI 2.0 Input Card	4x HDMI 2.0	4096×2160@60Hz	Up to 240 Hz
4K DP 1.2 Input Card	4x DP 1.2	4096×2160@60Hz	Up to 240 Hz
8K HDMI 2.1 Input Card	2x HDMI 2.1	8192×4320@30Hz	Up to 240 Hz
8K DP 1.4 Input Card	2x DP 1.4	7680×4320@30Hz	Up to 240 Hz
4K 12G-SDI Input Card	4x 12G-SDI	4096×2160@60Hz	Up to 60 Hz
VoIP Cards	SMPTE ST 2110, NDI	Varies by source	Varies by source

For output, the MX6000 Pro LED display controller offers two primary options:

• MX_4x10G_Fiber Output Card: Supports 1G transmission, capable of loading 650,000 pixels per Ethernet cable.
• CX_1x40G_Fiber Output Card: Supports 5G transmission, capable of loading 2,600,000 pixels per Ethernet cable.

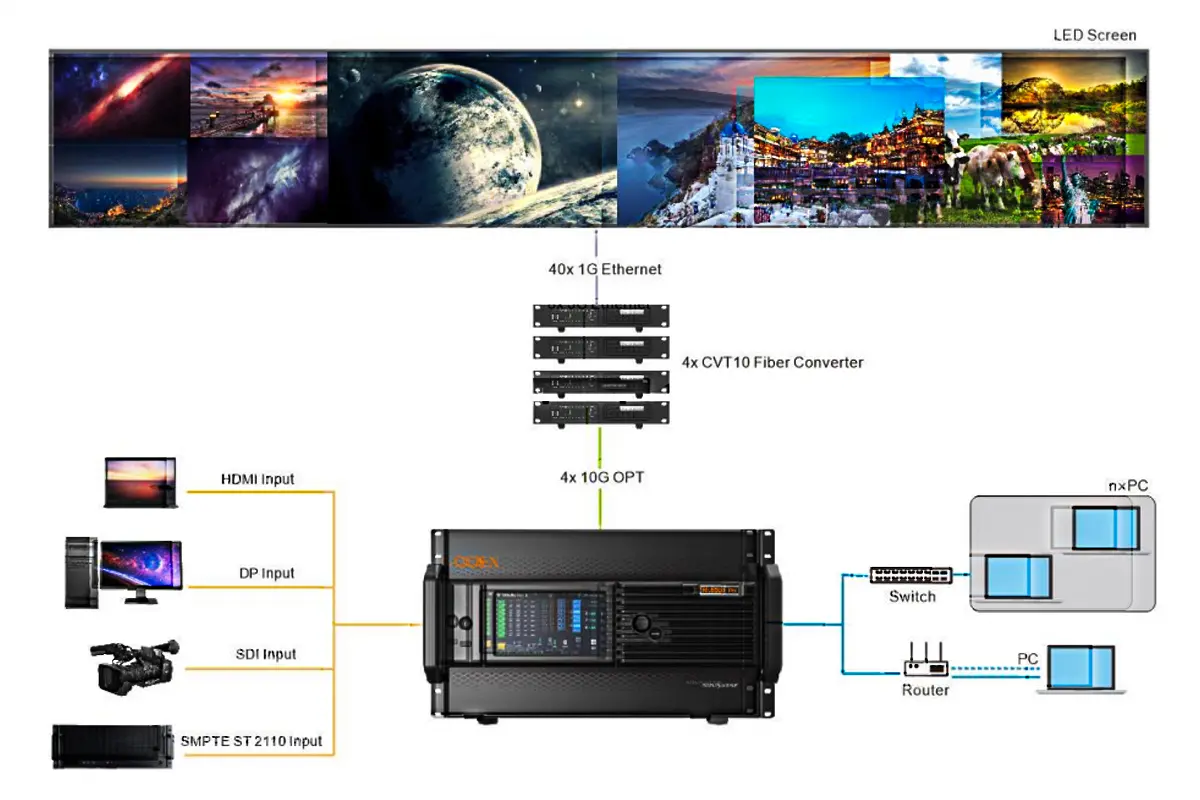

These flexible configurations allow users to build either 1G solutions or 5G solutions, depending on their bandwidth requirements.

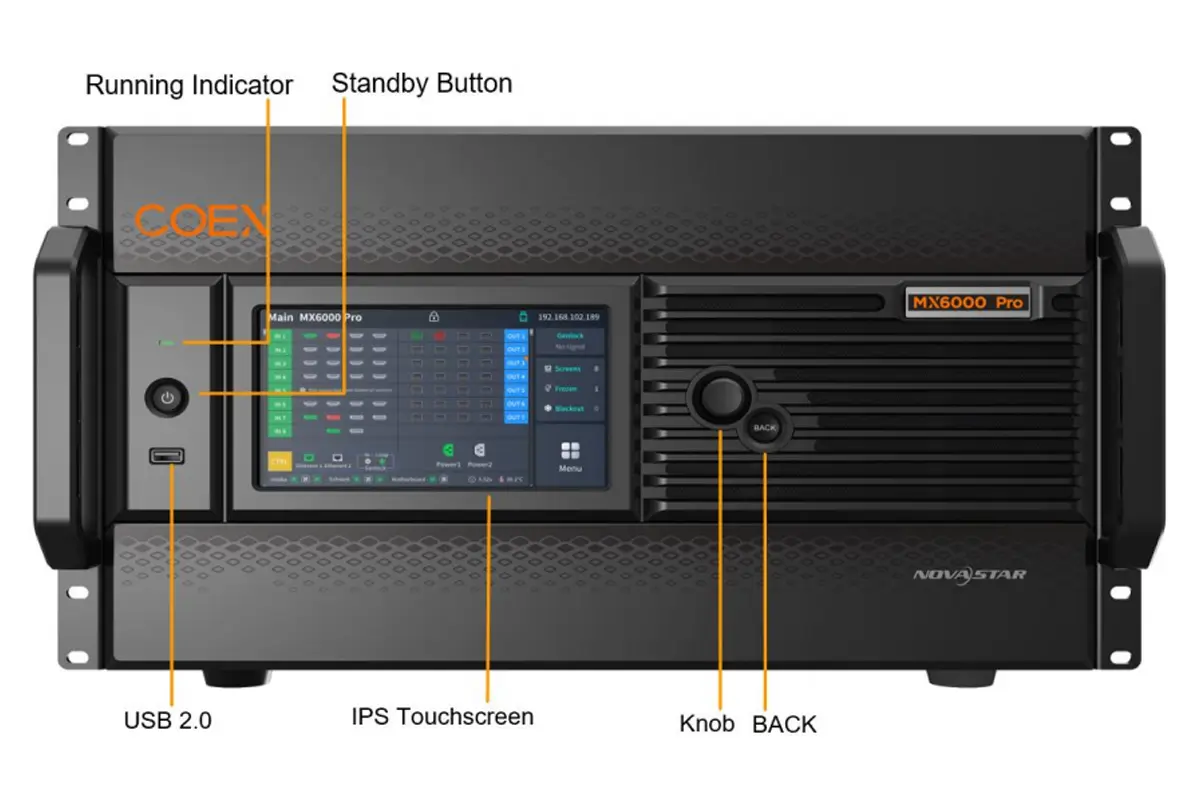

One of the standout features of the MX6000 Pro is its ability to provide real-time previews and monitoring of both video source inputs and LED screen outputs. This ensures that operators can quickly identify and resolve any issues, maintaining seamless performance during live events.

MX6000 Pro LED display controller supports up to 32x 4K layers, enabling complex multi-layer compositions. Each layer can be scaled independently using four modes: custom, pixel-to-pixel, snap-to-canvas, and fill-screen. Additionally, the Layer Roaming feature allows layers to span multiple output cards, providing unmatched flexibility in content presentation.

The MX6000 Pro’s impressive load capacity and bandwidth options make it adaptable to various installation scenarios. Below are the maximum load capacities per Ethernet port for both 1G and 5G solutions:

Frame Rate / Bit Depth	8-Bit	10-Bit	12-Bit
60 Hz	659,722 px	494,792 px	329,861 px
120 Hz	329,861 px	247,396 px	164,931 px

Frame Rate / Bit Depth	8-Bit	10-Bit	12-Bit
60 Hz	2,592,000 px	2,073,000 px	1,728,000 px

The versatility of the MX6000 Pro video wall controller makes it suitable for a wide range of applications, including:

This novastar coex controller Ideal for concerts, conferences, and exhibitions where high-resolution visuals are critical. Its real-time scaling and seamless backup ensure uninterrupted performance even under intense live production pressures. A music festival main stage or a corporate keynote, the controller handles multi-screen layouts and dynamic content with ease.

Perfect for TV production and virtual production environments requiring low latency and precise color management. The support for 12G-SDI and SMPTE ST 2110 IP video inputs makes it compatible with professional broadcast workflows. Features like HDR10 and frame rate adaptation ensure that content is displayed with broadcast-grade consistency and quality.

This LED display controller supports advanced features like shutter fit and frame multiplication for immersive extended reality experiences. These functions eliminate visual artifacts during camera capture, making virtual backgrounds appear seamlessly real. Combined with its 360Hz refresh rate, the MX6000 Pro is a reliable backbone for real-time graphics rendering in virtual production stages.

Suitable for museums, control rooms, and corporate lobbies needing reliable long-term performance. The system’s hot backup capabilities and remote monitoring via VMP software reduce downtime and maintenance costs. Its ability to drive high-density 8K displays makes it ideal for detailed visualizations in command centers or artistic installations in public spaces.

Novastar MX6000 Pro redefines professional display control through its intelligent integration of advanced technology and user-centric design. Ready to elevate your visual presentations? Contact our team today to discover how this advanced video wall controller can transform your display capabilities and deliver exceptional visual impact for your audience.
