A jumbotron screen is a large video display used to show live action, replays, scores, announcements and sponsor content to a crowd. The big screen in a stadium is often called a jumbotron, video board or stadium LED screen. Most new systems use modular direct-view LED cabinets, so the display can be sized for the venue rather than bought as one fixed-size television.
This guide is for venue owners, event teams and buyers comparing a permanent screen with a rental system. Start with the farthest and nearest viewer, the screen location, the content you need to show and who will operate it. Those four decisions determine the useful size, pixel pitch, brightness, structure and control system.

Quick answer: Ask for a proposal that separates LED hardware from processing, structure, power, installation, freight, spares and support. A headline price without that scope is not a reliable project budget.
1. What is a jumbotron screen?
“Jumbotron” began as a name for Sony’s large video display system. In everyday use, people now use it for the giant screen at a sports venue or concert. A modern LED jumbotron is a tiled display: many cabinets form one image, with a processor mapping video and graphics to the screen’s actual pixel dimensions. For more background on the term, see our jumbotron definition and alternatives.
A stadium screen can carry live camera feeds, replays, score graphics, crowd prompts, wayfinding and advertising. A center-hung arena display, an end-zone board and a temporary concert IMAG screen all serve different sightlines. The cabinet, mounting and operation plan must suit the application.
2. How does an LED jumbotron work?

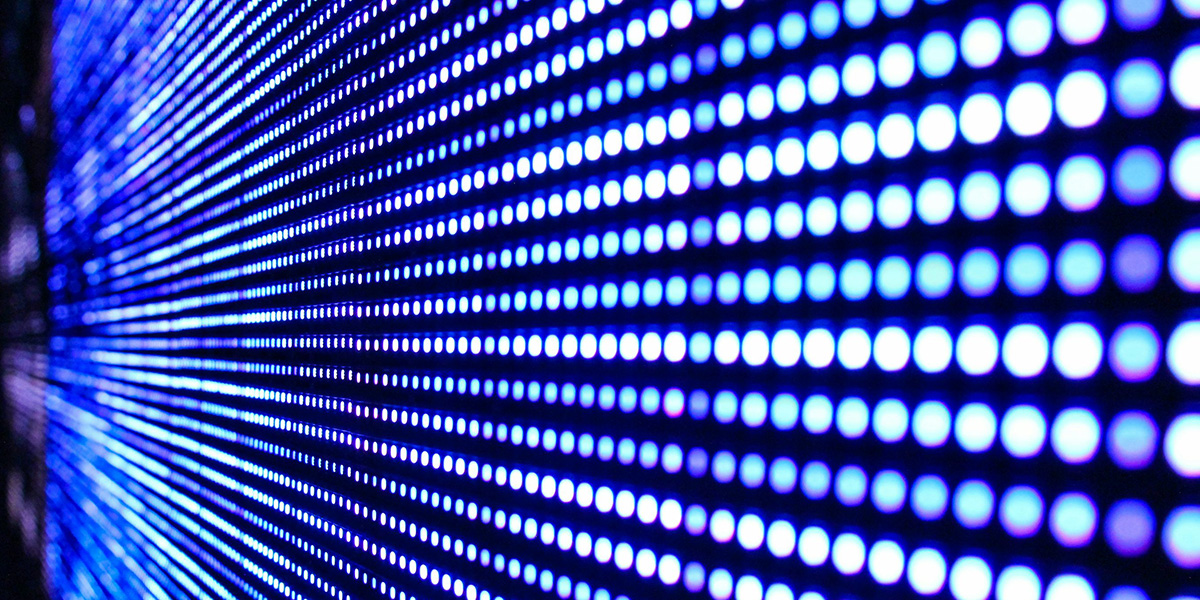

An LED display is assembled from modules inside cabinets. Each pixel combines red, green and blue light to produce the image. Receiving cards, power supplies and a video processor distribute and map the signal. The venue also needs a playback or control workflow for cameras, score data, sponsor assets and emergency messages.
Native resolution follows physical size and pixel pitch. For example, a 12 m × 6 m display at 6 mm pitch has about 2,000 × 1,000 pixels, assuming the cabinet layout supports those dimensions. The calculation is screen width or height in millimeters divided by pitch in millimeters. A finer pitch increases pixel count and cost; it does not improve the viewing experience automatically when the crowd is far away.
01. Design for the active video window
A processor can accept a 4K input while the assembled screen contains far fewer native pixels. The production team therefore needs the exact pixel canvas, not just the input format. A 12 m by 6 m P6 planning example gives roughly 2,000 by 1,000 pixels, a 2:1 aspect ratio. A 16:9 camera feed will need a deliberate crop, letterbox or composition; stretching it changes people’s proportions. Reserve space for the scoreboard, clock, captions and sponsor positions before requesting artwork.
Ask the designer for three sample frames: live action with a score strip, a replay with a clear label, and an emergency or wayfinding message. Review each from the farthest planned seat and from a side section. If the smallest text cannot be read, increase the text size or change the layout before paying for more pixels. Record the approved safe areas so later content does not hide vital information at the cabinet edges.
02. Map the signal and recovery path
Draw every source from camera or scoring system through switching, processing, sending hardware and the cabinet chain. Identify the person who can change inputs and the person who approves sponsor content. If an event depends on the screen, request a tested fallback source, spare signal cables and saved processor settings. Redundant data routes can protect against a cable fault, but they cannot replace a failed power supply or an inaccessible cabinet. Commission the complete path with the real operators.

3. How to choose jumbotron screen specifications
| Decision | What to ask for | Why it matters |
|---|---|---|
| Screen size and aspect ratio | Venue drawing, seating sightlines and planned video layout | A large board still fails if seats have blocked views or text is too small. |
| Pixel pitch | Nearest intended viewer and required detail | Pitch sets native pixels per meter; match it to viewing distance and content. |
| Brightness | Measured specification for the proposed model and the site’s daylight conditions | Outdoor sunlight and indoor arenas need different brightness plans. |
| Weather protection | Front and rear IP ratings, exposure and service plan | An IP rating describes enclosure protection, not the safety of the whole installation. |
| Video performance | Refresh rate, camera test footage and signal-chain diagram | Live broadcasts can reveal flicker or processing problems that static demos miss. |
| Structure and access | Stamped structural design, loads, maintenance access and local approvals | Support steel, wind loads and safe service access are project-specific. |
| Reliability | Power/data redundancy, spare modules and response commitments | The show must continue when a component fails. |
Request a full-size sample or a filmed test under conditions similar to the venue. Check both moving video and the smallest score or sponsor text you intend to display. Do not assume a generic “outdoor” label settles brightness, waterproofing or structural requirements.
01. Survey the seats before choosing pitch
Mark the closest occupied position, the farthest seat, major side angles and any obstructed sections on a venue plan. Screen height and position control whether spectators can see the action; pitch controls how much detail fits into that area. There is no single viewing-distance formula that proves a design will work. Ask for a content mockup at the actual native resolution and judge readable type from representative positions. Document which seats were tested and whether the display is intended for detailed scores or broad live images.
02. Test brightness and cameras at operating settings
An outdoor jumbotron screen needs visibility under the site’s daylight conditions and a controlled nighttime setting. Request brightness data for the proposed configuration, then test the planned dimming schedule. A high maximum rating does not show whether dark scenes, faces and sponsor colors remain balanced at night. For broadcast, test the actual camera frame rates and shutter settings with the proposed processor and panels. A 3,840 Hz headline refresh figure alone does not guarantee clean footage.
03. Approve service access and weather boundaries
Ask whether modules, power supplies and receiving cards are serviced from the front, rear or both. Reserve the required clearance and safe working access in the structural plan. Check front and rear ingress ratings separately, including connectors and the installed cable route. Local engineers must review wind loads, rigging, grounding and approvals for the complete structure. The display manufacturer’s cabinet rating is only one input to that review.

4. Where are jumbotron screens used?
The same jumbotron screen specification rarely suits every venue. A main stadium board must make action and scores readable across a seating bowl; a concert IMAG wall gives distant guests a close view of a performer; a fan-zone display may be moved between sites. For each use, identify the furthest viewer, the smallest required text and the responsible operator. Place a mockup on the proposed structure before buying so the board does not block a sightline or conflict with lighting and audio equipment.

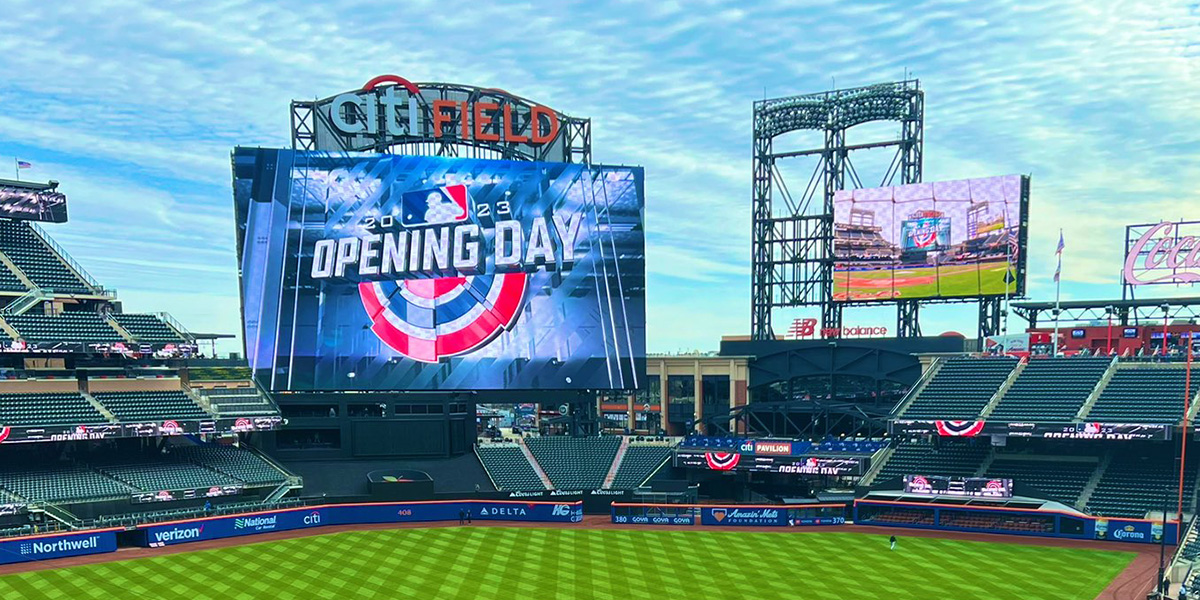

01. Sports stadiums and arenas
A main video board can combine replays, scores, statistics, crowd content and sponsor inventory. The operator needs a defined source-switching and emergency-message workflow. Field-side stadium perimeter LED displays are a separate product category with different placement and safety needs.

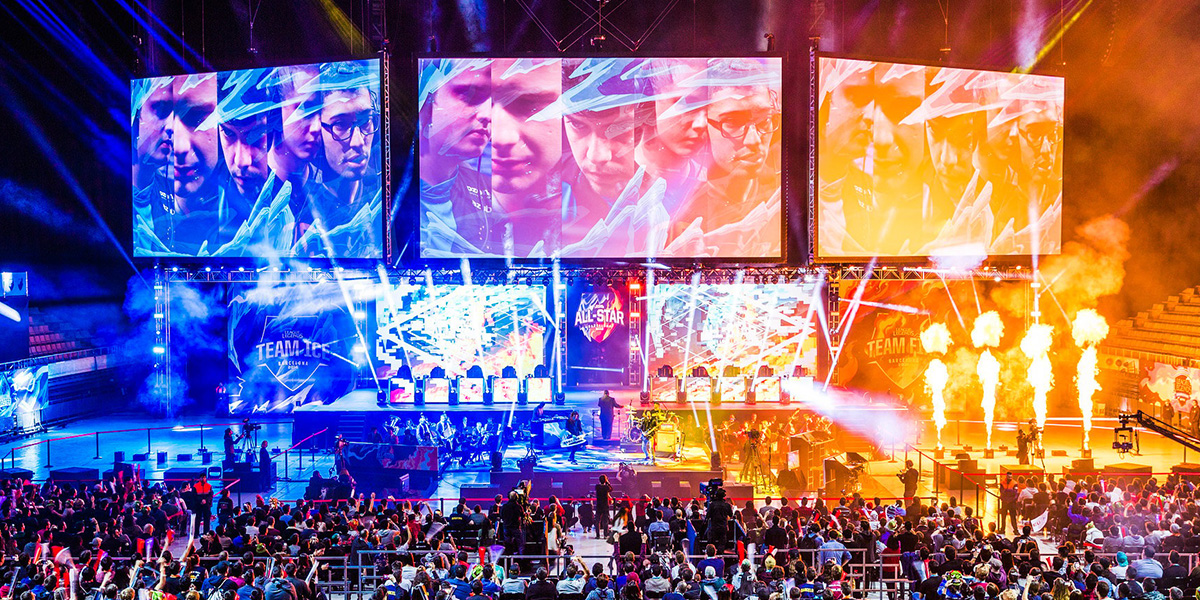

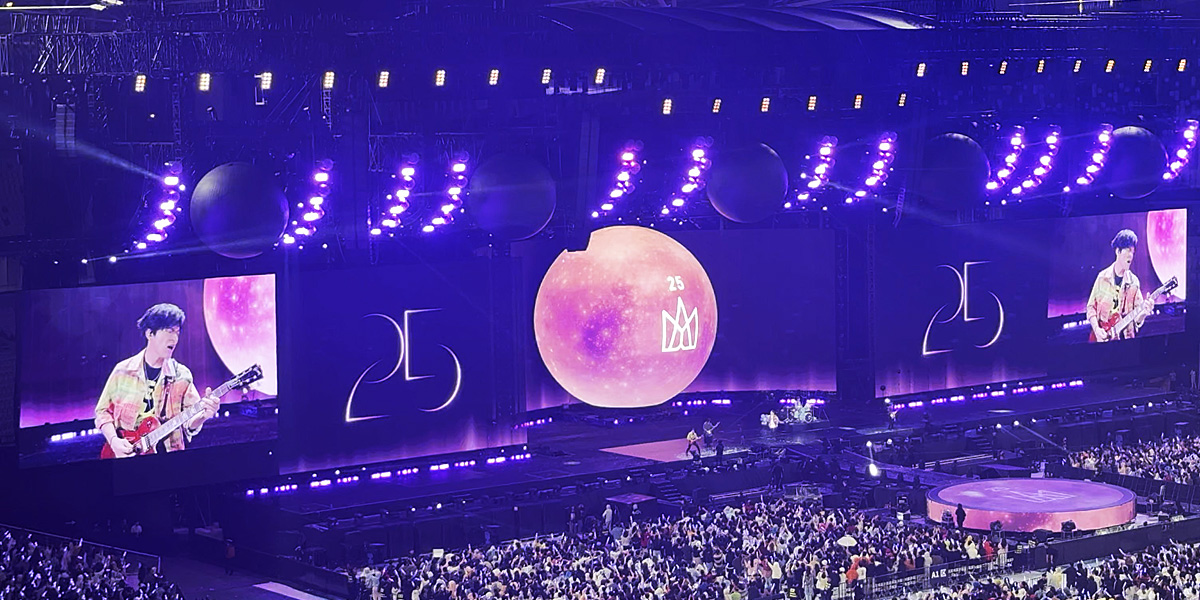

02. Concerts and temporary events
Event screens help distant viewers follow performers and presenters. A touring system prioritizes fast assembly, repeatable cabling and transport protection. EagerLED’s rental LED display options show cabinet formats for repeated assembly; confirm the proposed size and specification against your venue.

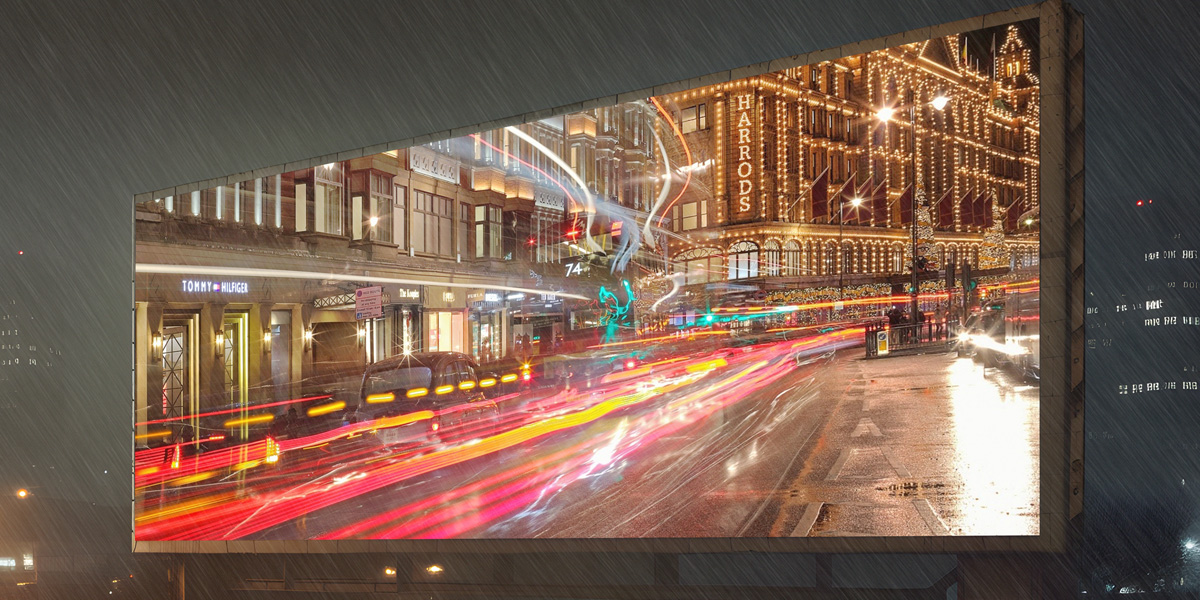

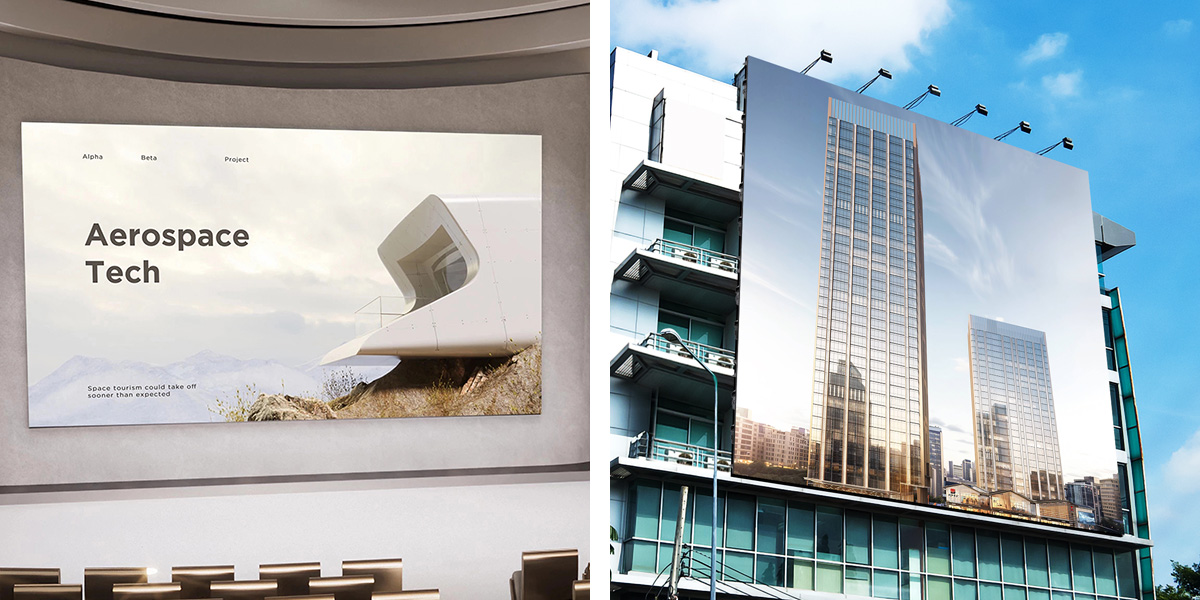

03. Fan zones, public events and advertising
For a fan zone or outdoor movie night, plan viewing area, daylight, audio, power distribution and local approvals together. A permanent advertising display additionally needs a content schedule and safe access for maintenance. See EagerLED’s stadium LED screen planning guide for a venue-focused example.
5. What affects jumbotron screen cost?
01. Separate capital work from display hardware
A permanent jumbotron screen budget usually spans multiple contracts. The LED cabinets and processor may come from one supplier, while a local team designs the steel, foundations, access platform and electrical distribution. Ask each bidder to price the same active area and native resolution, then list freight, site labor, testing, training and spares separately. A quotation that omits the support structure can look inexpensive while leaving the largest project risk unpriced. For an outdoor jumbotron screen, ask which party owns weather sealing at the cabinet, cable and building interfaces. Record every exclusion beside the number rather than relying on a verbal assurance.
02. Model running cost with actual operating hours
Request maximum power for electrical design and a clearly described typical-use estimate for the operating budget. As an illustration, a 72 m² jumbotron screen averaging 200 W/m² during its planned content would draw 14.4 kW. If it runs for five hours, that is 72 kWh before control equipment and other venue loads. The 200 W/m² value is an assumption, not a product rating; actual consumption changes with brightness, content and cabinet design. Add routine inspections, replacement modules, calibration and staff time to a multi-year estimate. Ask for a tested shutdown procedure so energy savings do not introduce restart problems before an event.
Price comparisons start with a shared bill of quantities. Ask each bidder to state cabinet count, active area, native pixel count, processor and input cards, spare parts, control software, warranty, shipping terms and commissioning responsibility. Treat a quoted screen price and a venue-ready project price as different scopes. If structural steel, permits or electrical distribution will be supplied locally, name the responsible contractor in the comparison.
There is no dependable single price for “a jumbotron.” Cabinet quantity, pixel pitch, outdoor protection and the control package change the hardware quote. Structure, engineering, electrical work, freight, installation, commissioning, permits, operator training, spare parts and warranty terms change the installed cost. Currency, location and timing matter too.
Ask suppliers to identify whether a figure means LED panels only, a complete display package or a fully installed system. Any price range without a quote date and itemized scope should not be treated as a current offer. For an actionable budget, send the venue location, target screen dimensions, indoor or outdoor setting, nearest and farthest viewing distances, intended content, installation date and expected operating hours with your quote request.
6. Should you buy or rent a jumbotron screen?
Get the rental offer in writing for the exact event dates and screen dimensions. A rented jumbotron screen may be quoted as bare cabinets, a configured display package or a staffed service with rigging and operation. Ask who supplies the processor, transport cases, power distribution, spare cabinet and technician. If weather forces a pause, the agreement should state who decides when the jumbotron screen is shut down and how postponement affects cost. For a purchased system, request an equivalent plan for storage, maintenance and trained operators. Compare those complete responsibilities rather than simply dividing purchase price by one event fee.
Renting suits a one-time festival or a tour whose venue sizes change. Ownership can suit a fixed stadium or a production company that uses the same cabinets often enough to maintain staff, cases, storage and spare inventory. Decide with a realistic annual event calendar. Include the labor for assembly, testing and teardown for each event, and allow for days when equipment is unavailable for inspection or repair. A low purchase price is not a usable break-even estimate without those operating assumptions.
| Question | Rent | Buy |
|---|---|---|
| Use pattern | One-off or occasional events | Recurring events or permanent venue use |
| Initial commitment | Event fee and setup | Hardware plus installation and commissioning |
| Operations | Confirm crew, transport and on-site support in the rental contract | Plan storage or fixed access, spares and maintenance |
| Control | Confirm source formats and operator responsibilities | Define a repeatable in-house content workflow |
Compare total costs over the period you actually expect to use the screen. For renting, include every event’s screen, transport, rigging, labor and operator charges. For buying, include installation, power, staffing, maintenance, spares and eventual replacement. Break-even event count equals up-front ownership cost ÷ (per-event rental cost − per-event ownership operating cost), provided that difference is positive. Obtain real quotes before using the result.

7. Jumbotron quote checklist
Give every bidder the same site drawing and three representative content files. Ask them to return a scaled jumbotron screen elevation with cabinet count, total installed weight, native pixel dimensions and service direction. Mark any element supplied by another contractor. A complete jumbotron screen proposal should also name the input and output interfaces, processing capacity, spare quantities and commissioning tests. Where the board will be filmed, ask for a camera rehearsal at the expected brightness and shutter settings. For a temporary jumbotron screen, confirm the support and teardown method at each venue. These drawings and tests make competing quotations comparable and expose missing interfaces before equipment ships.
Before sign-off, define an acceptance test that uses the venue’s own content. Include a complete replay and score sequence, a sponsor clip, solid-color and dark-gradient patterns, the agreed camera test, controlled dimming and a supervised recovery from a lost signal. Record the native canvas, processor settings and test positions. Give the operating team the configuration archive, a labeled cabinet map and a named service contact. These deliverables make later faults easier to isolate and reduce dependence on a single technician.
- Provide a venue plan, screen location and viewing distances.
- State screen dimensions, aspect ratio and the smallest content viewers must read.
- Specify indoor or outdoor exposure, operating hours and camera or broadcast use.
- Request the proposed cabinet model, pitch, native resolution, brightness and front/rear IP ratings.
- Ask for the processor, input formats, score or camera integration and any redundancy.
- Separate hardware, support structure, engineering, electrical work, freight, permits, installation and commissioning in the quote.
- Confirm training, spare parts, warranty coverage, response times and access for repairs.
- Approve a content test and a clear acceptance checklist before final sign-off.
For related installation and supplier questions, see our LED screen supplier checks. EagerLED can propose a system once the venue requirements and scope are clear.

Jumbotron screen FAQs
01. What is the big screen in a stadium called?
People commonly call it a jumbotron, stadium video board or stadium LED screen. The specific system may be center-hung, end-zone mounted or installed elsewhere in the venue.
02. Is a jumbotron the same as an LED video wall?
A modern jumbotron is usually a large LED video wall built from modular cabinets. “Jumbotron” describes its crowd-facing role; “LED video wall” describes the display technology and assembly.
03. How much does a jumbotron screen cost?
Cost depends on size, pitch, location, structure and the services included. Compare itemized quotes with the same scope. A panel-only figure cannot be compared directly with a fully installed venue system.
04. What pixel pitch should a stadium jumbotron use?
Choose pitch from the closest intended viewer, screen dimensions and required text detail. Calculate native resolution for the proposed layout and test the content at representative viewing distances before ordering.
05. Can I rent a jumbotron for a concert or event?
Yes. Rental LED systems suit temporary events, provided the proposal includes transport, rigging, power, crew, content inputs and on-site support. Confirm those items with the rental provider.
Plan your screen with EagerLED
Share your venue drawing, intended use, dimensions and project schedule with EagerLED. We can help define the jumbotron screen specification and an itemized scope for your project.
