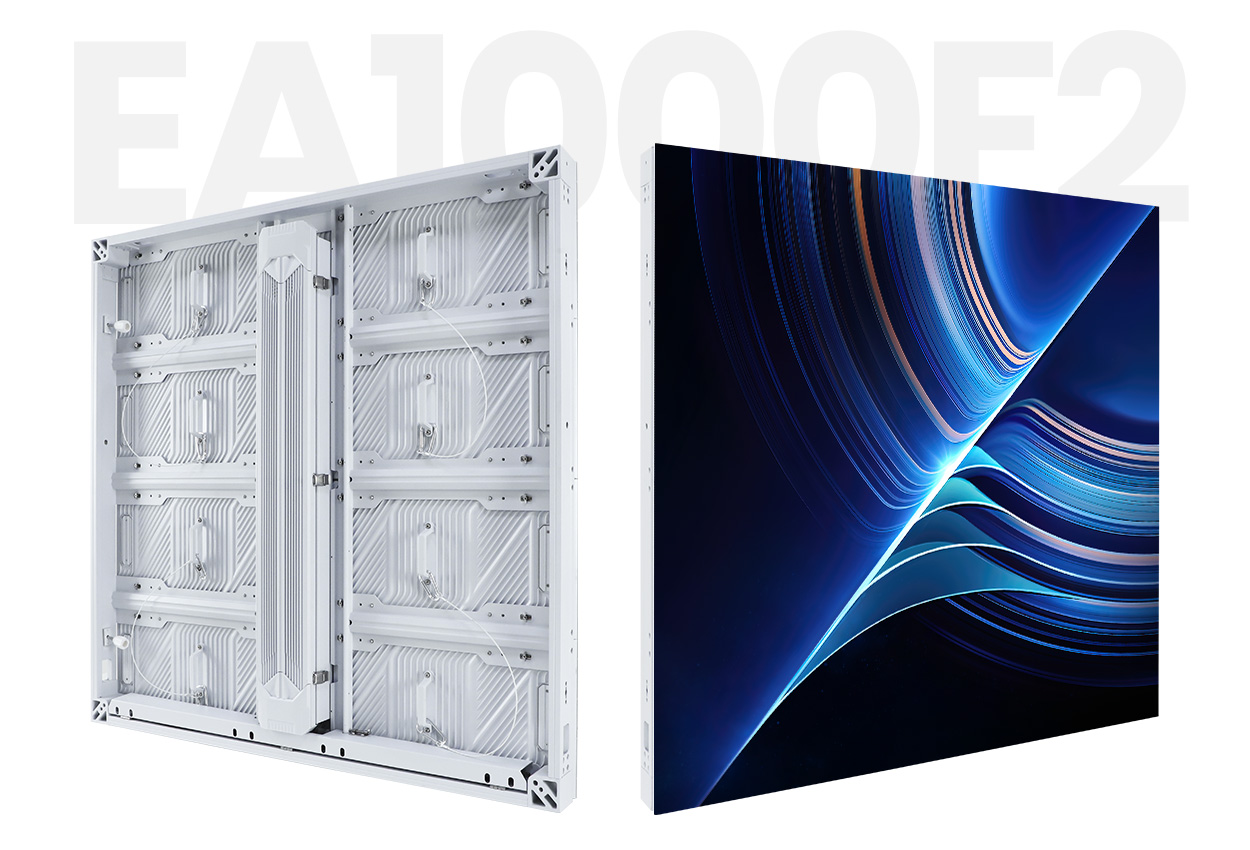

What Is the EA1000F2 Outdoor Advertising LED Screen?
EA1000F2 is a fixed outdoor advertising LED screen for commercial buildings, roadside billboards and large-format digital signage. Seven pixel-pitch configurations from P2.97 to P10.42 deliver 5,000 or 6,500 cd/m² brightness and a ≥3,840 Hz refresh rate. A 500 × 250 mm module platform, front/rear service access and optional corner cabinets let system designers match image detail, viewing distance, maintenance access and installation geometry. Configuration values vary by model; confirm the applicable specification table below before ordering.

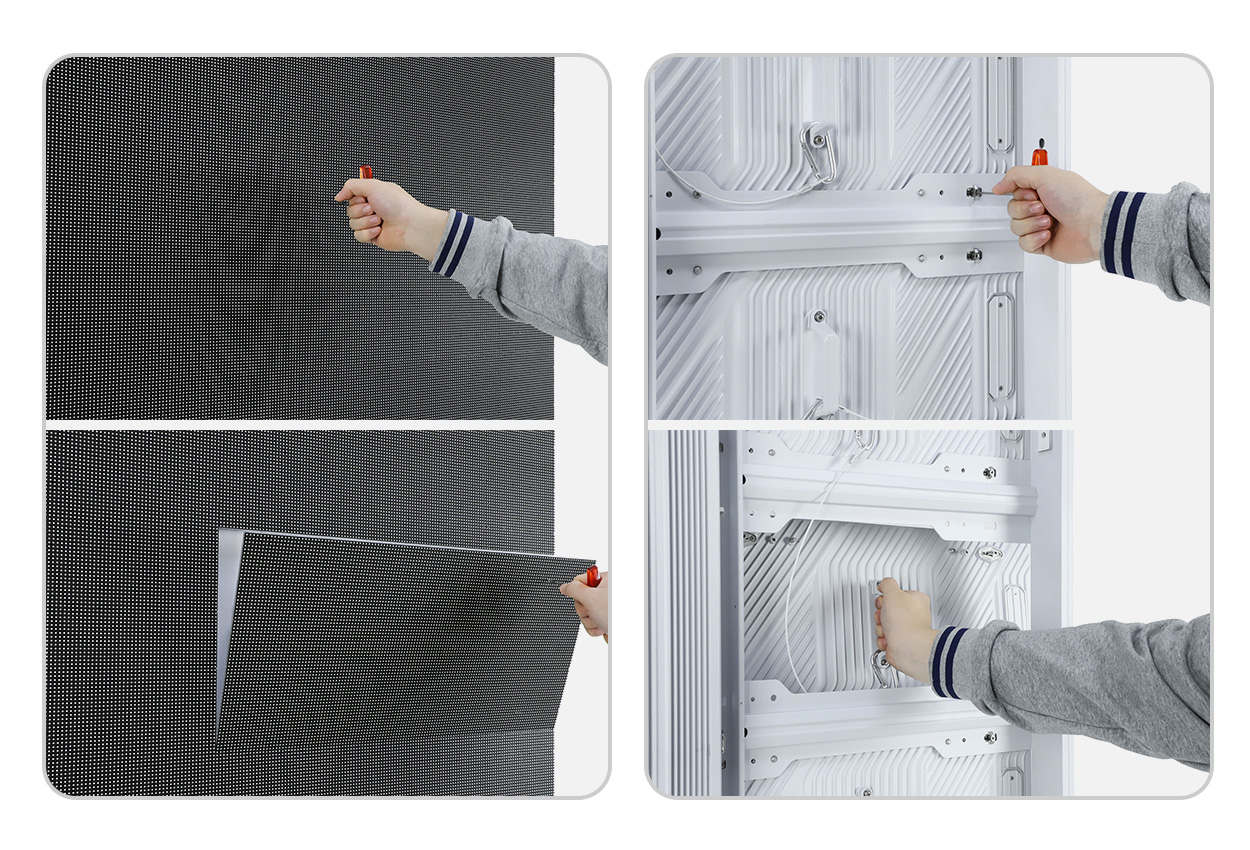

How Does Front and Rear Service Work?
EA1000F2 LED modules can be installed and removed from either the front or rear of the cabinet. This dual-service design lets technicians choose the access method that fits the site, including wall-mounted projects with limited rear clearance and structures with dedicated rear service space.

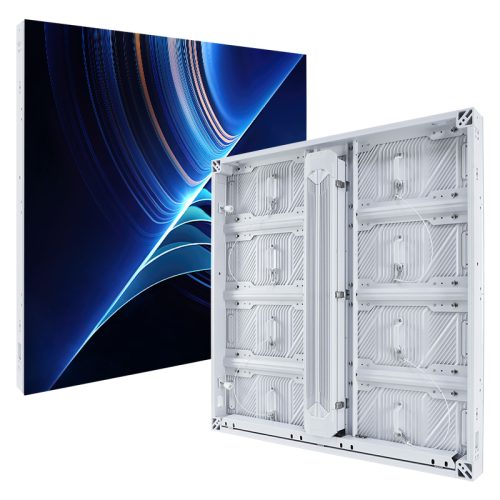

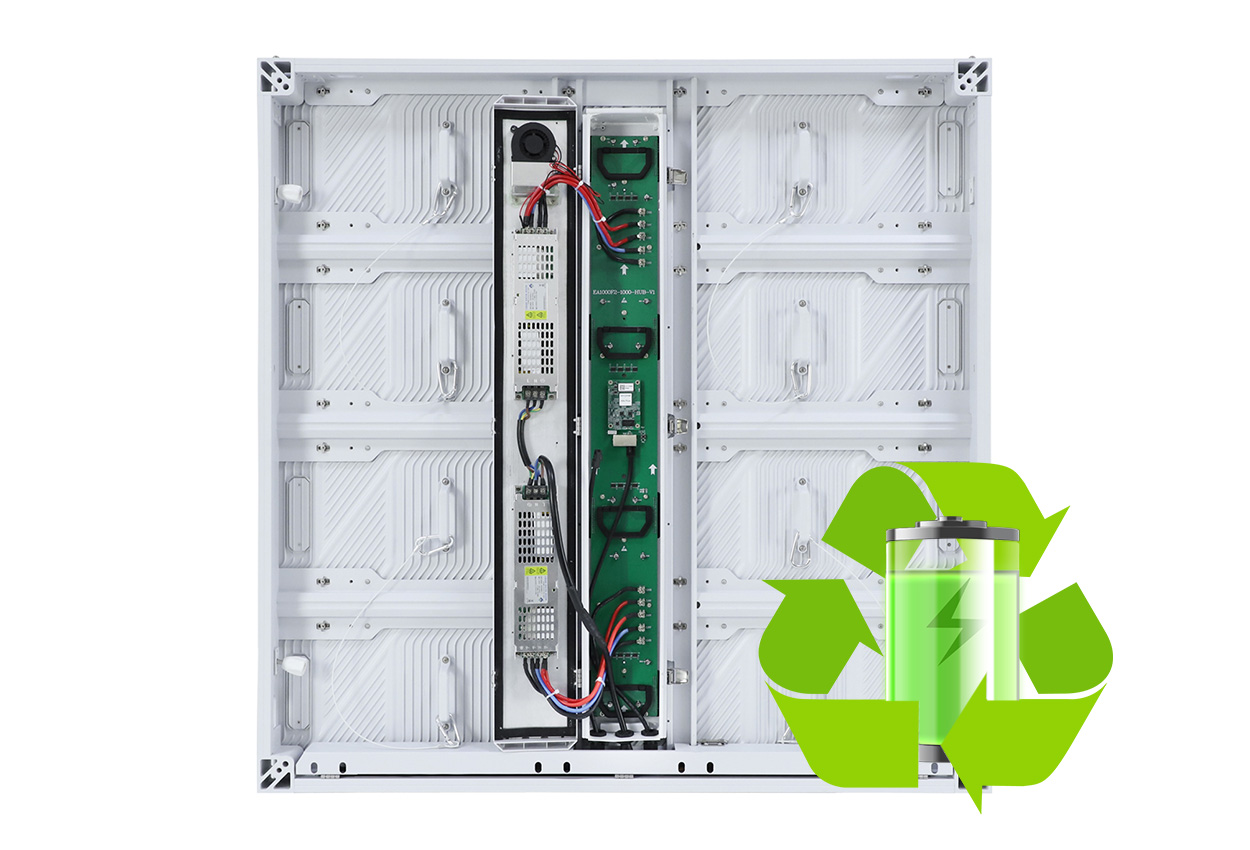

1000 × 1000 mm Aluminum Cabinet Details

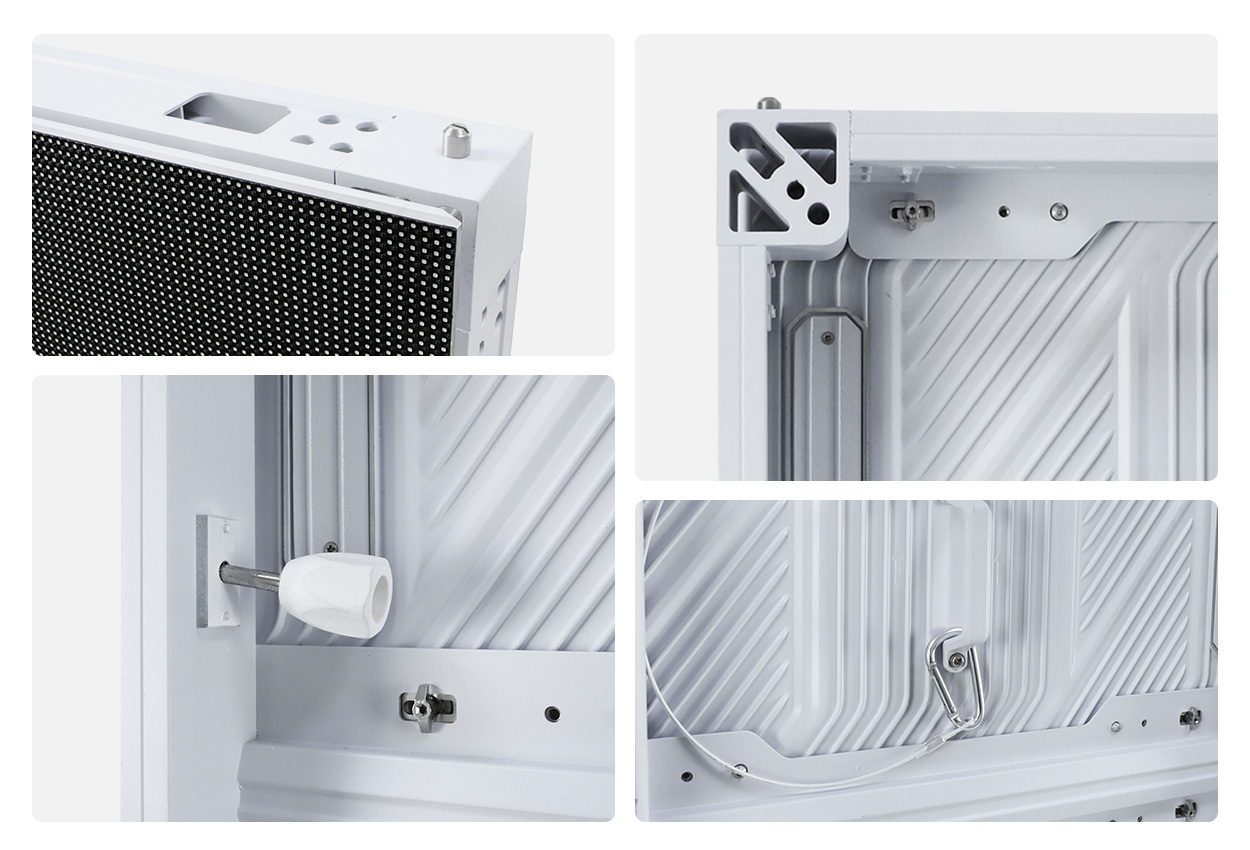

The 1000 × 1000 mm aluminum cabinet weighs 28.4 kg. Quick locks and positioning posts align adjacent cabinets during assembly, while module safety tethers provide secondary retention during installation and service.

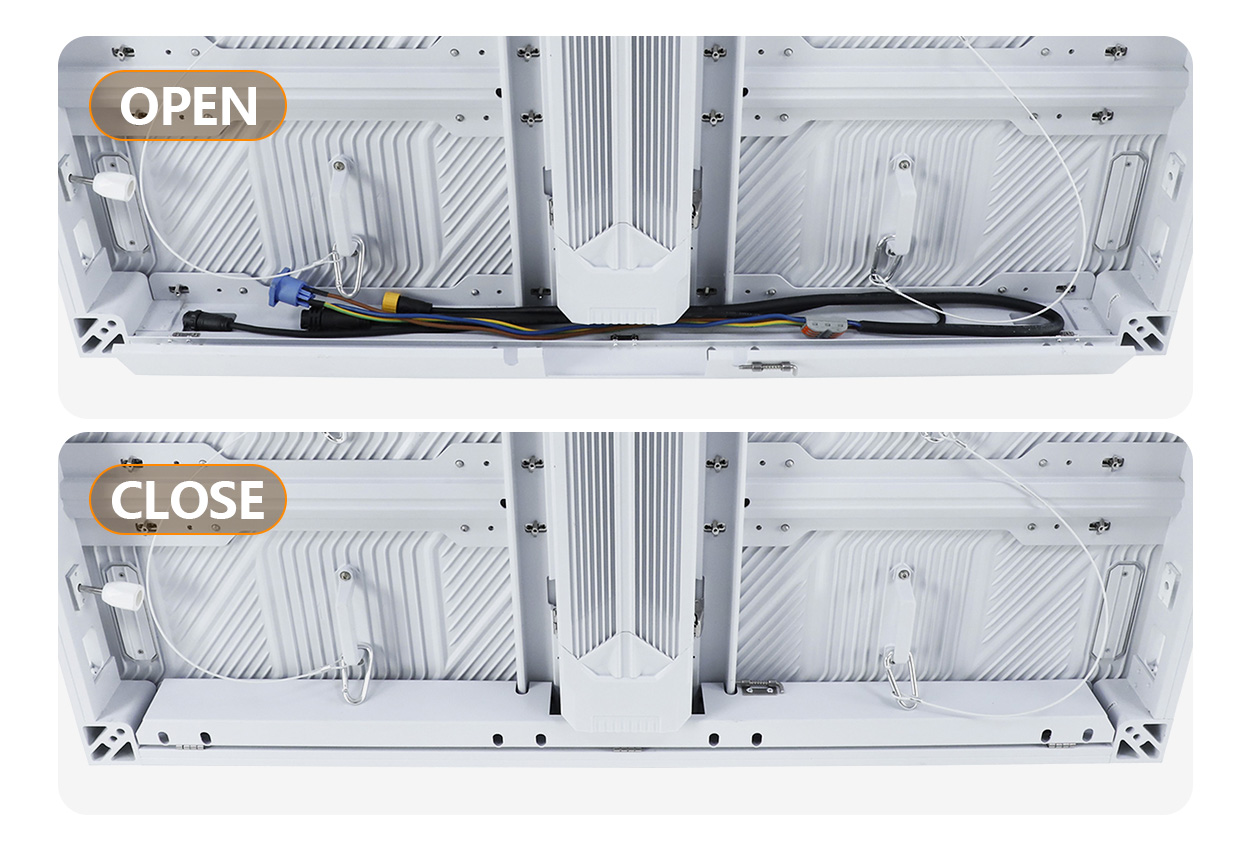

Hard-Connected Module Design
Hard-connected LED modules reduce exposed internal cabling and keep power and data connections organized inside the cabinet. The result is a cleaner service area with fewer loose connections to manage during module replacement.

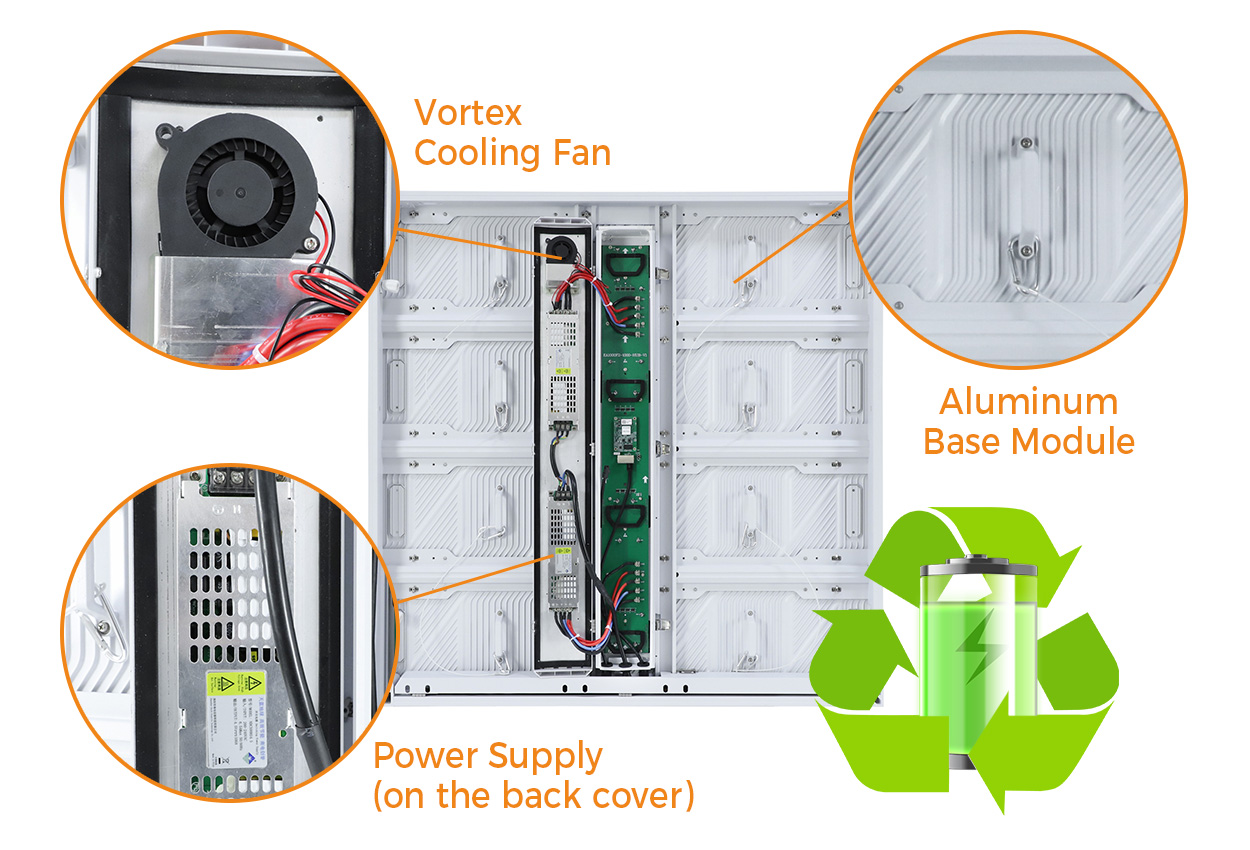

Thermal Management for Outdoor Operation
Aluminum module baseplates and vortex cooling fans move heat away from the LED modules. The power supply mounts directly against the cabinet door panel with thermal paste, creating a defined heat-transfer path for outdoor operation.

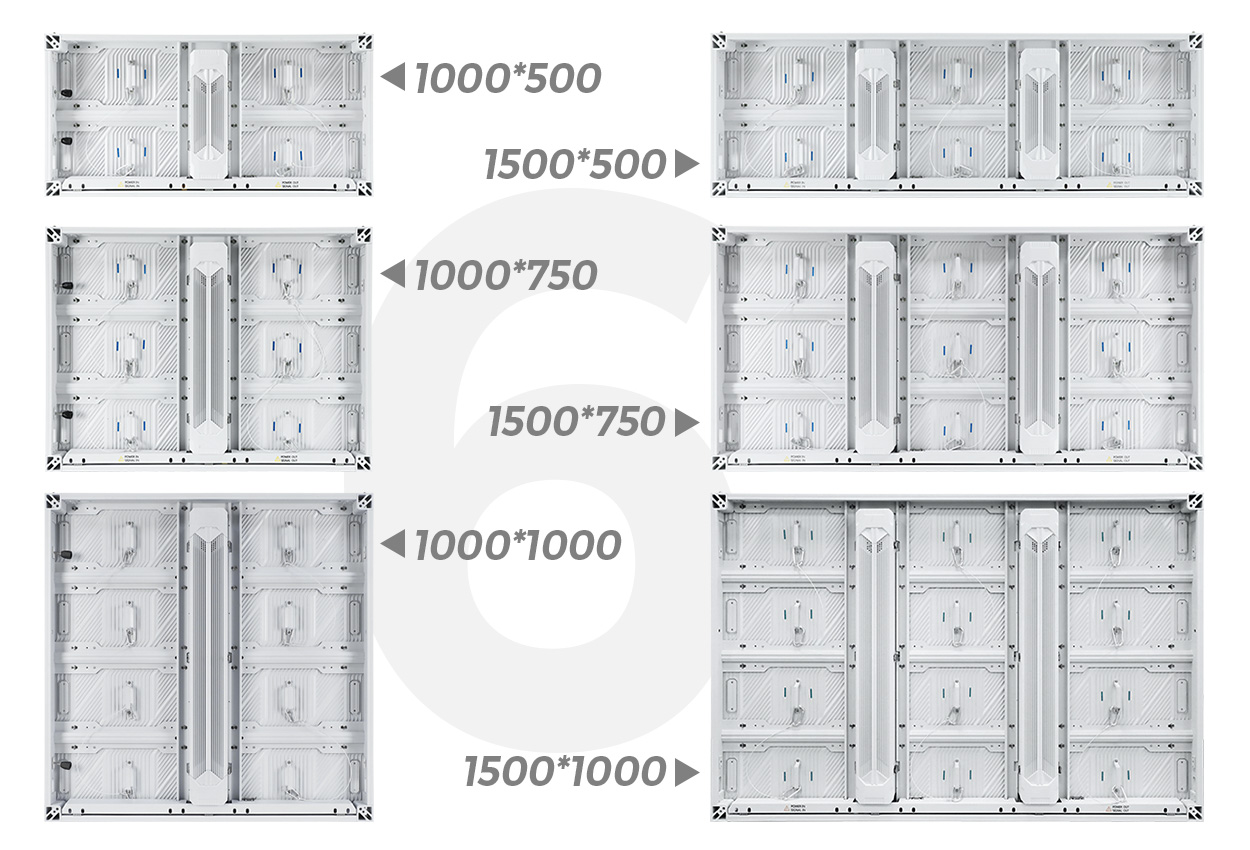

Six Cabinet Sizes Available

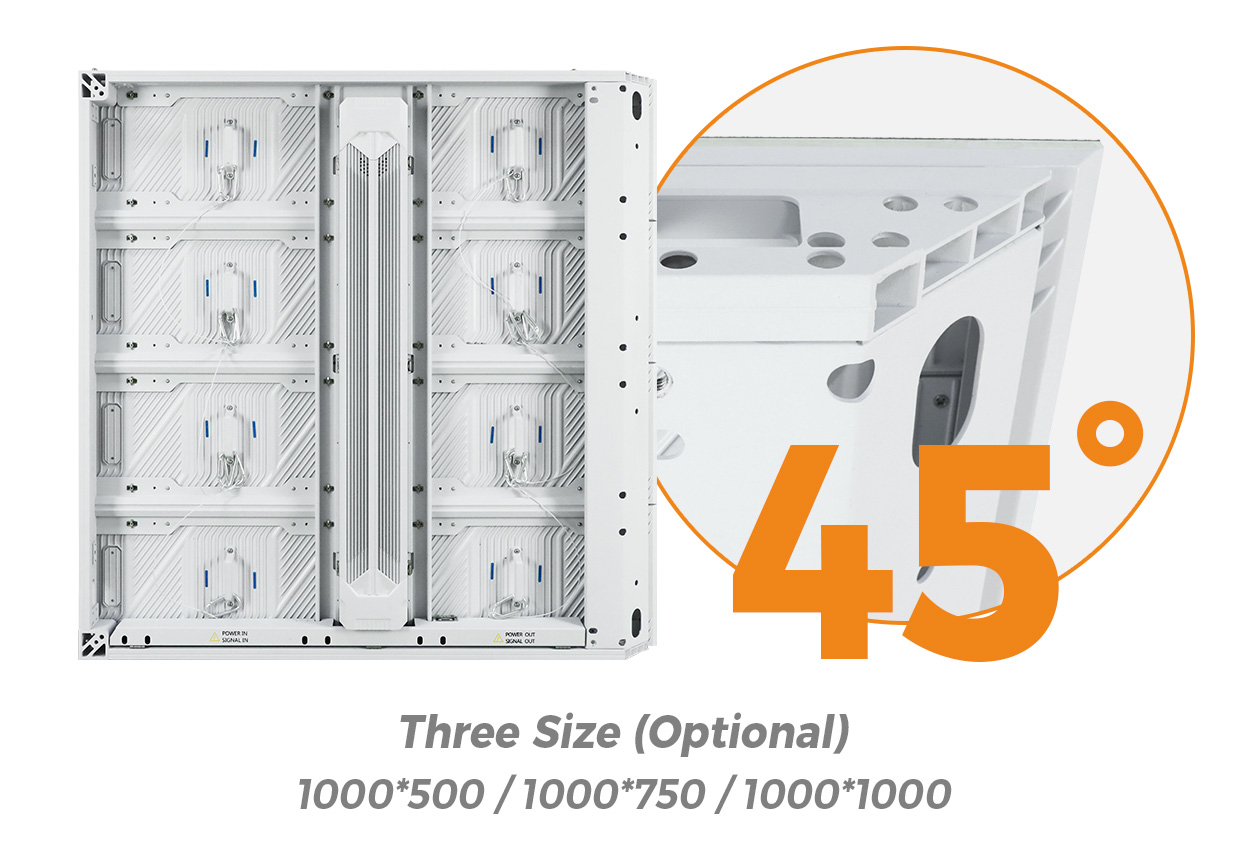

45° Beveled-Edge Cabinet (Optional)
Optional 45° beveled-edge cabinets are available in three sizes and pair to form a 90° outside corner. They are intended for building corners and right-angle advertising displays where content must continue across two faces.

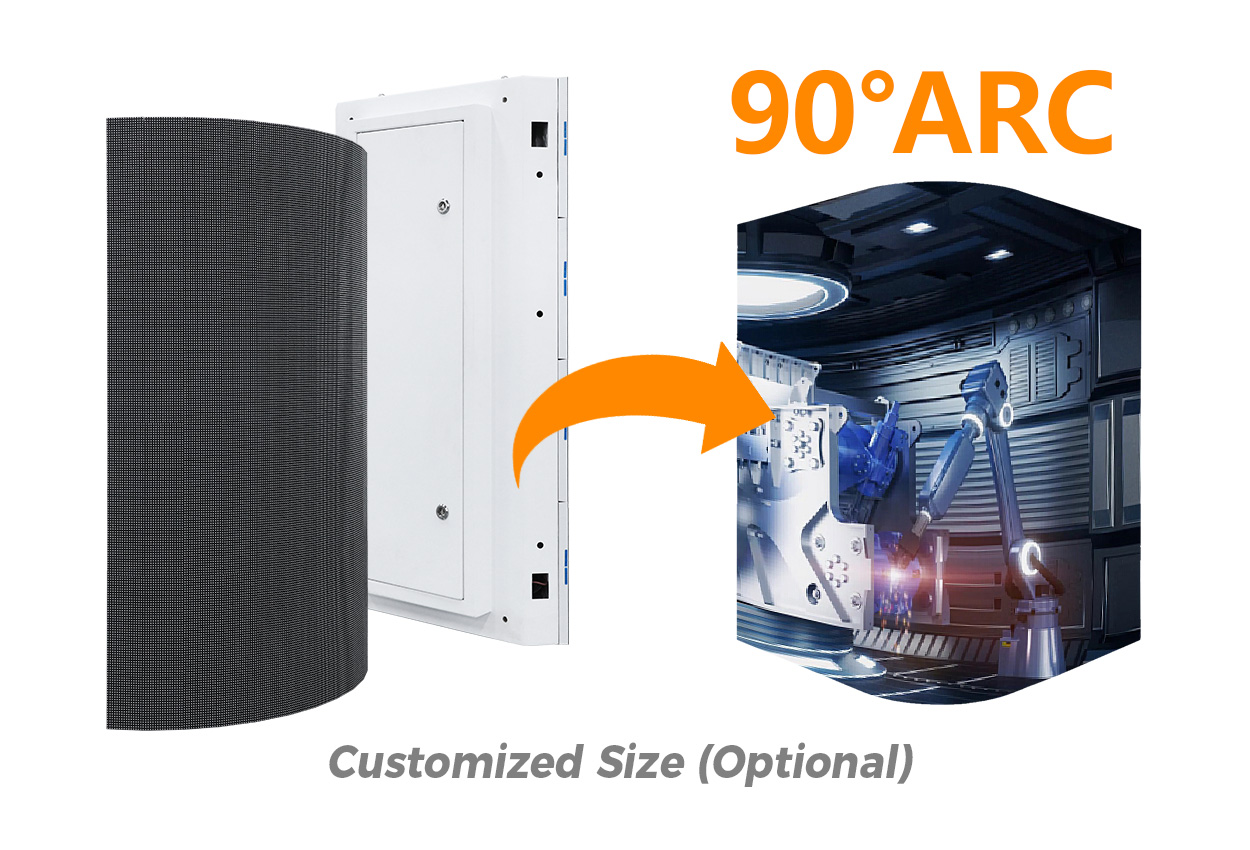

90° Curved Cabinet (Optional)
Optional 90° curved cabinets are available in three sizes for rounded-corner LED installations. The curved surface can support wraparound content and glasses-free 3D campaigns when the content is produced for the planned viewing position.
Outdoor Advertising LED Screen Performance
EA1000F2 models deliver 5,000 or 6,500 cd/m² brightness, a ≥3,840 Hz refresh rate, 16-bit grayscale and a 140° viewing angle. Published configurations list AC 90–264 V input and a -20 to +60°C working-temperature range. Pixel pitches from P2.97 to P10.42 let specifiers balance image detail, viewing distance and project budget; final electrical design should follow the selected model and local requirements.

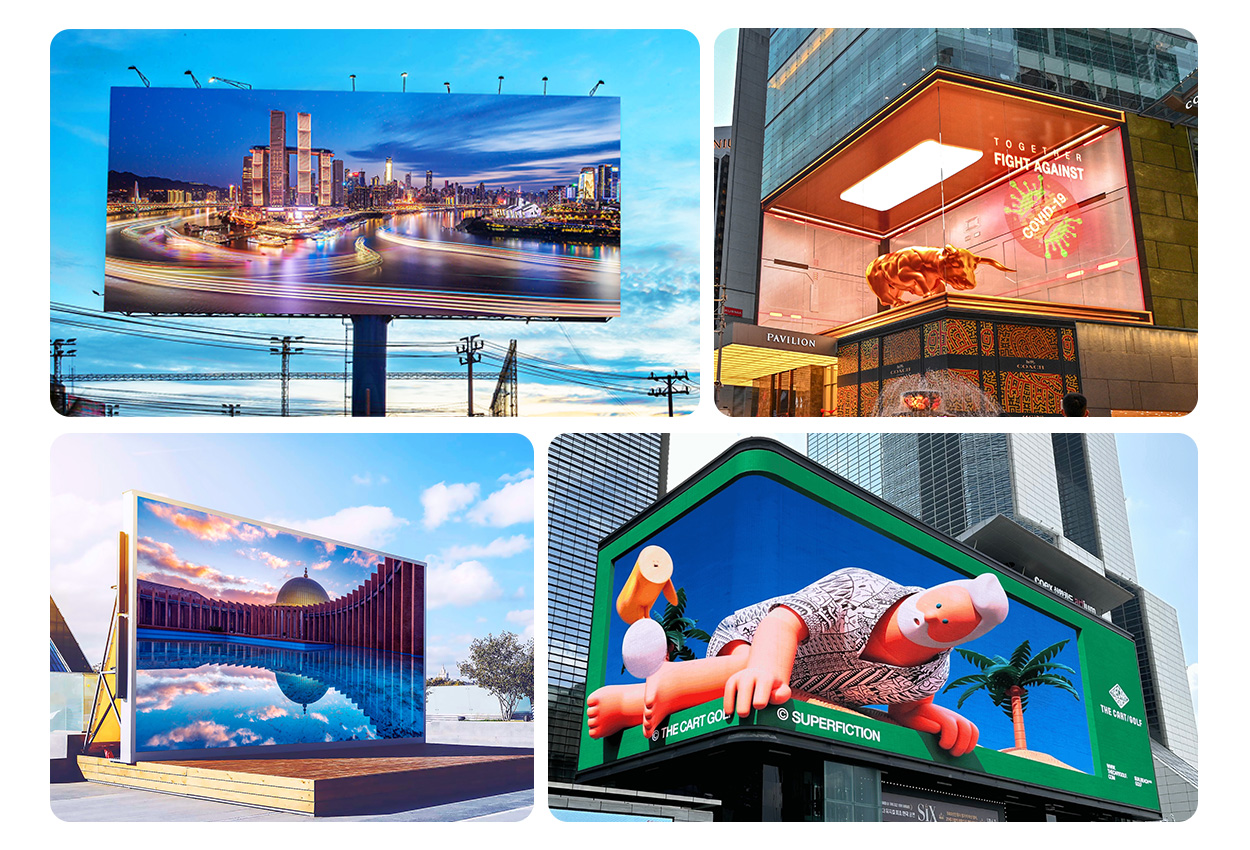

Outdoor Advertising LED Screen Applications
Use EA1000F2 for fixed outdoor installations such as shopping centers, commercial building façades, roadside digital billboards and landmark media displays. For project selection, compare pixel pitch, brightness, cabinet geometry, viewing distance and front/rear service access before ordering. Explore EagerLED’s commercial LED display solutions or contact the engineering team for configuration guidance.
