EA250WH5 Ultra-Thin Indoor LED Display Wall

30 mm cabinet | front service | seven pixel pitches
  • Full front-service access
  • 30 mm ultra-thin cabinet
  • Six cabinet sizes available
  • Right-angle and column configurations
  • Direct HUB module connection
  • ≥3840 Hz refresh and 14/16-bit grayscale options
  • Wall-mounted, suspended or column installation
Get Quote Now!
Linkedin

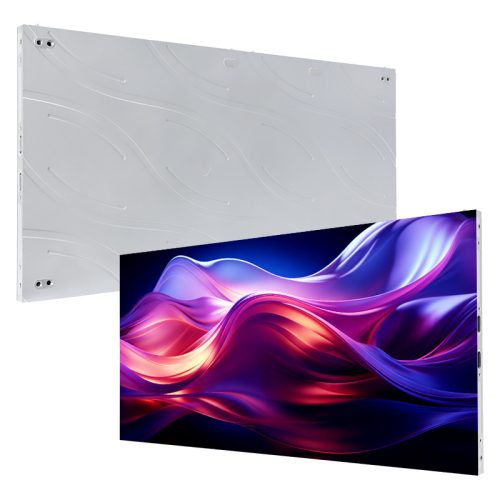

Indoor LED Screen Panel cabinet front and rear construction

Customized New LED Display Solutions for You

    EA250WH5 Indoor LED Display Wall

    The EA250WH5 is an ultra-thin indoor LED display wall built for space-limited permanent installations. Its 30 mm cabinet, full front-service design and direct HUB module connection simplify installation and maintenance. Seven pixel pitches from P1.25 GOB to P3.91, six cabinet formats and a ≥3840 Hz refresh rate support fine-detail video walls, retail signage, corporate spaces, churches and home cinemas.

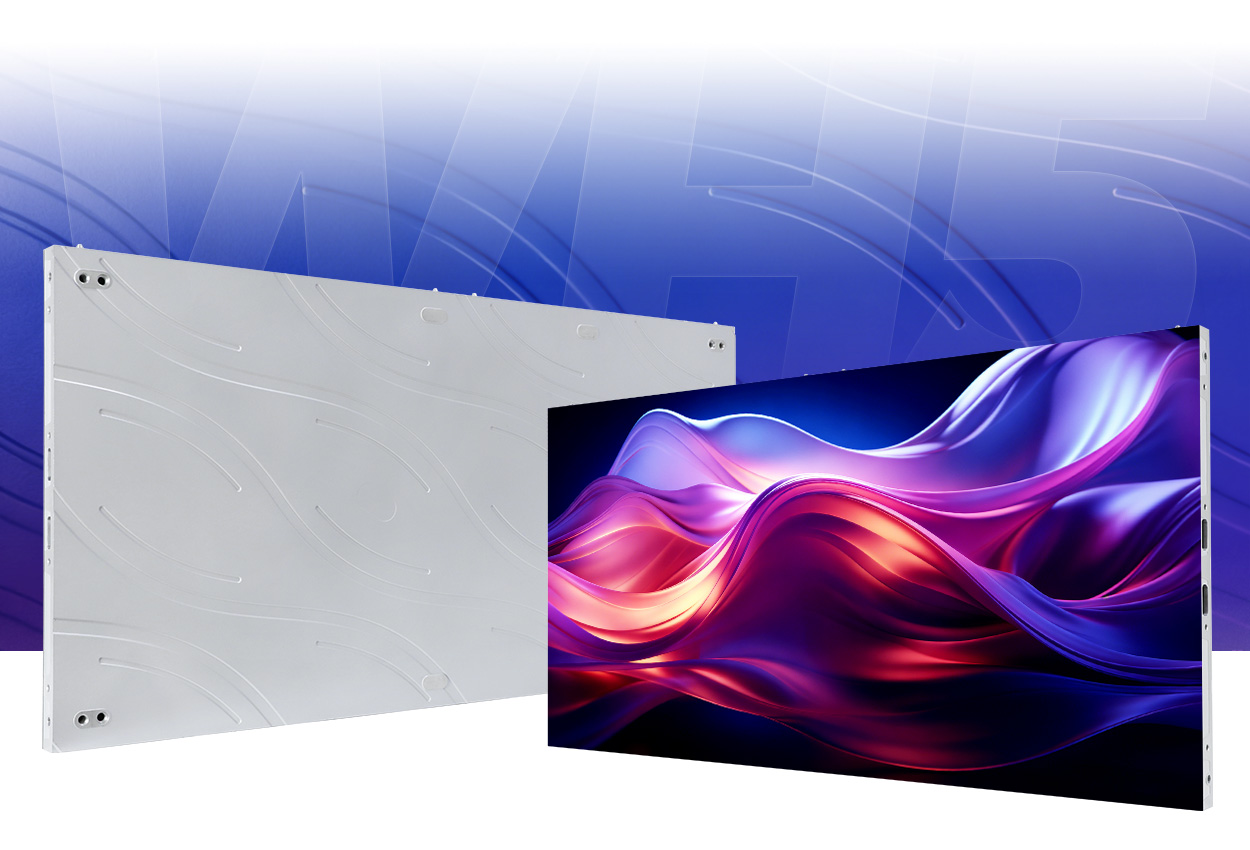

    EA250WH5 ultra thin indoor LED display wall cabinet

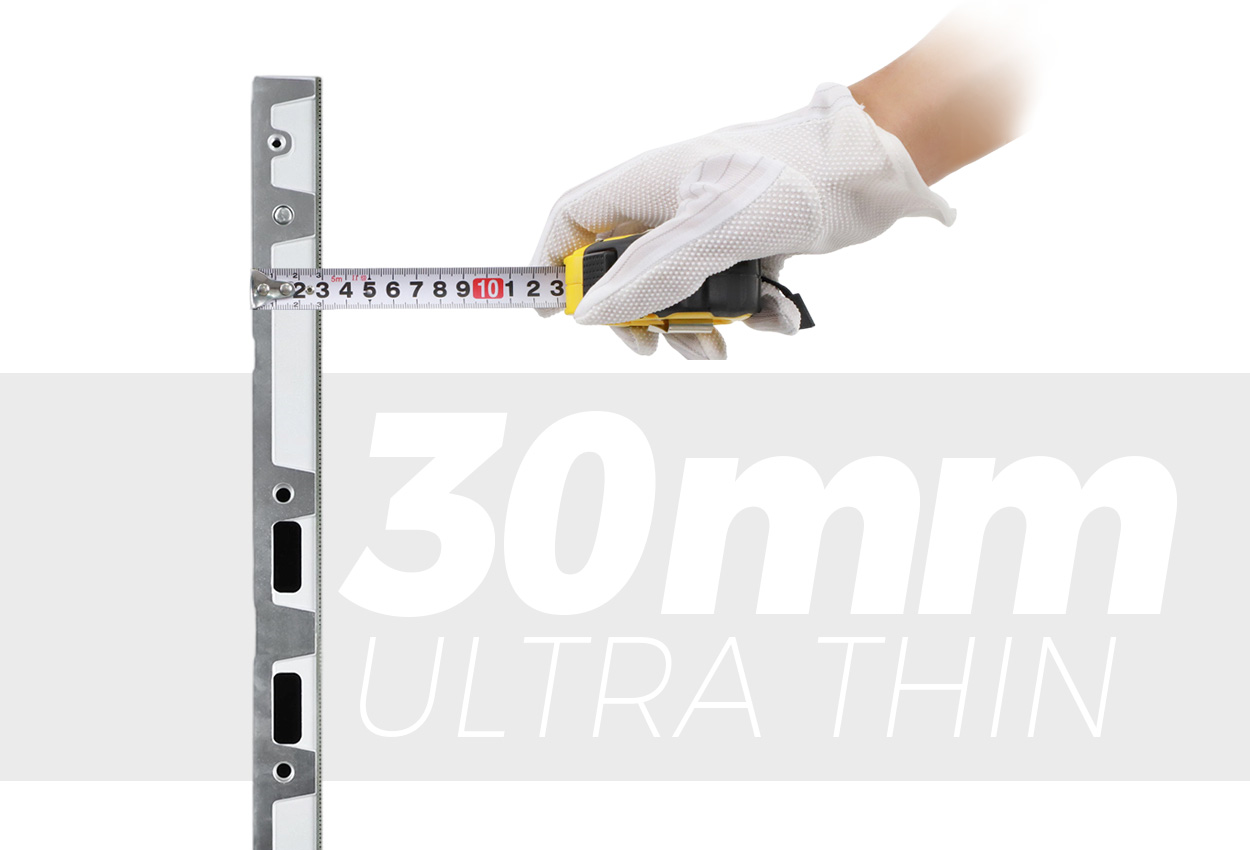

    30 mm Ultra-Thin LED Cabinet

    The cabinet is only 30 mm deep, helping the EA250WH5 fit close to an interior wall where installation depth is limited. Cabinet weights range from 3.0 kg to 10.5 kg across the six available formats, based on the published product specifications.

    30 mm ultra thin EA250WH5 LED cabinet profile

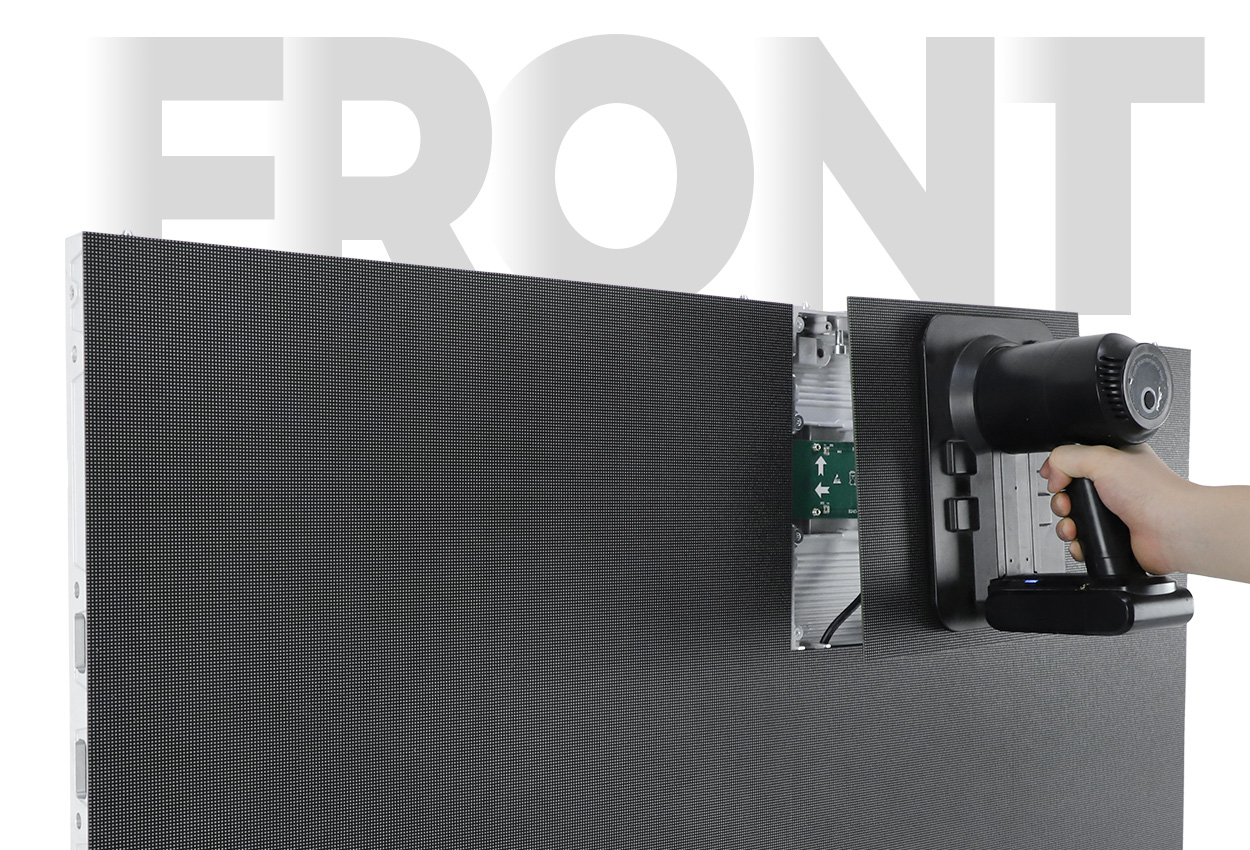

    Full Front-Service Access

    LED modules, power supplies and control components can be accessed from the front. This allows the display to sit close to the wall and avoids the rear maintenance aisle required by conventional rear-service cabinets.

    Front service access for EA250WH5 LED modules

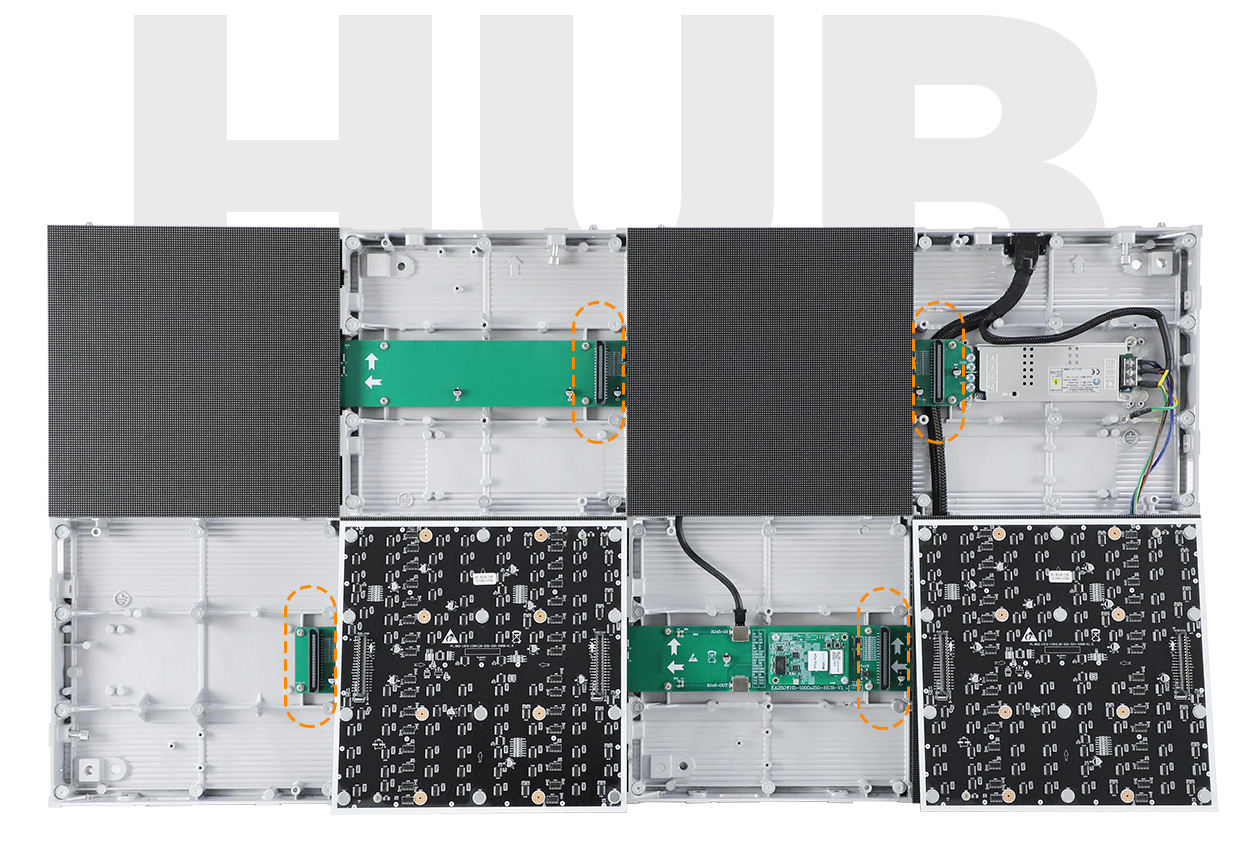

    HUB Connection

    EA250WH5 LED module adopts a Direct HUB module connection, eliminating the need for separate power cords and other cables, making installation more efficient and convenient.

    EA250WH5 direct HUB connection inside the LED cabinet

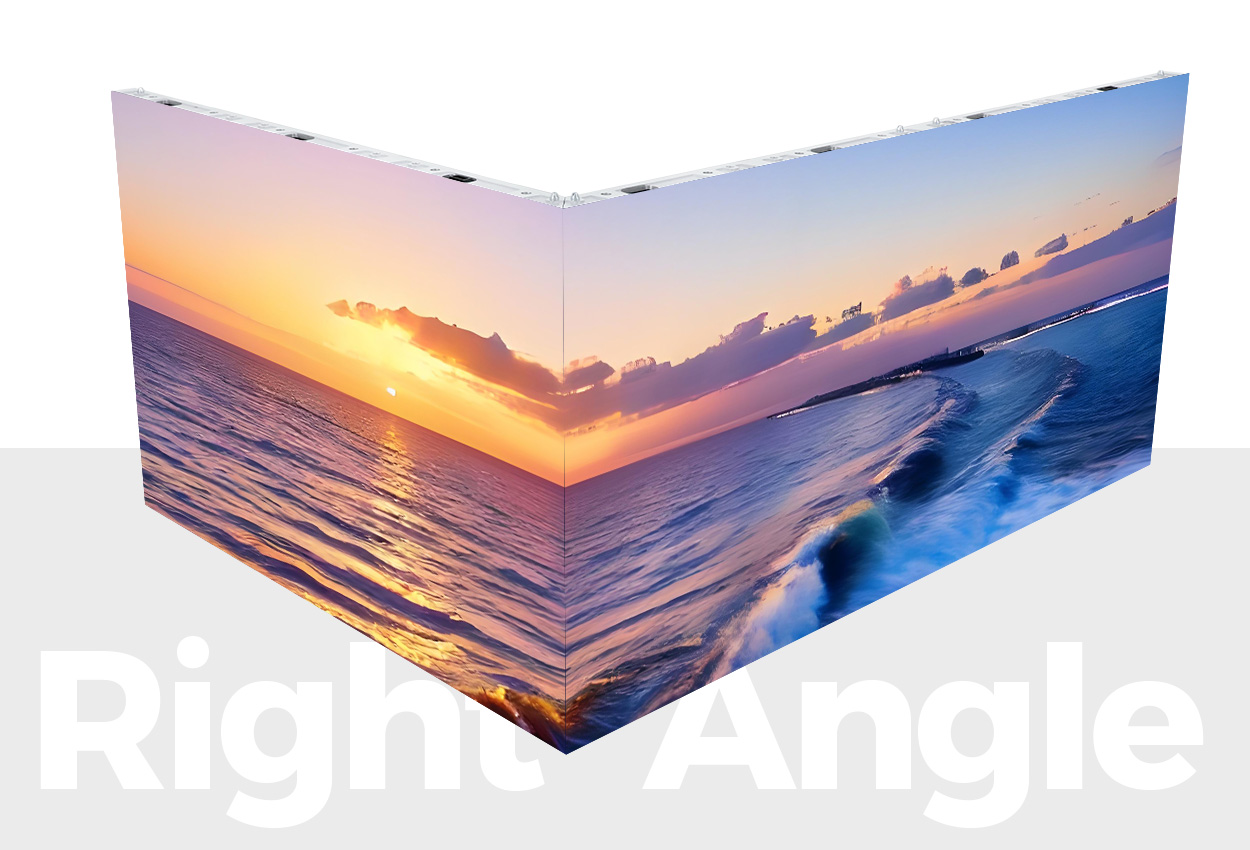

    Right-Angle and Column Configurations

    The cabinet system supports flat video walls, right-angle corners and column-style configurations. Integrators can use these formats for architectural features, retail displays and other indoor installations that extend beyond a standard flat screen.

    EA250WH5 right angle indoor LED wall configuration

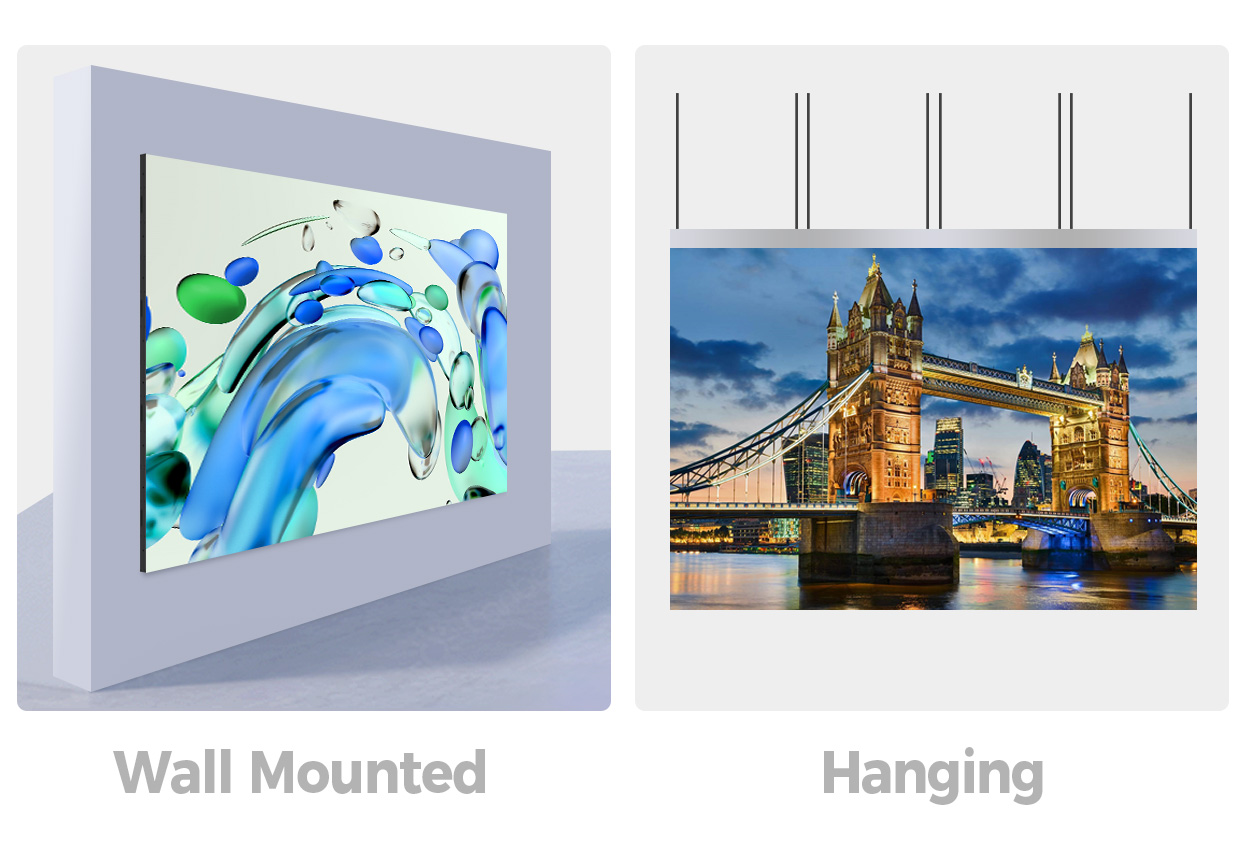

    Flexible Installation Methods

    Choose wall mounting for a close-fit permanent video wall, suspended installation where floor space must remain clear, or column mounting for an architectural display. The full front-service design keeps routine access on the viewing side in each configuration.

    EA250WH5 wall mounted and suspended installation options

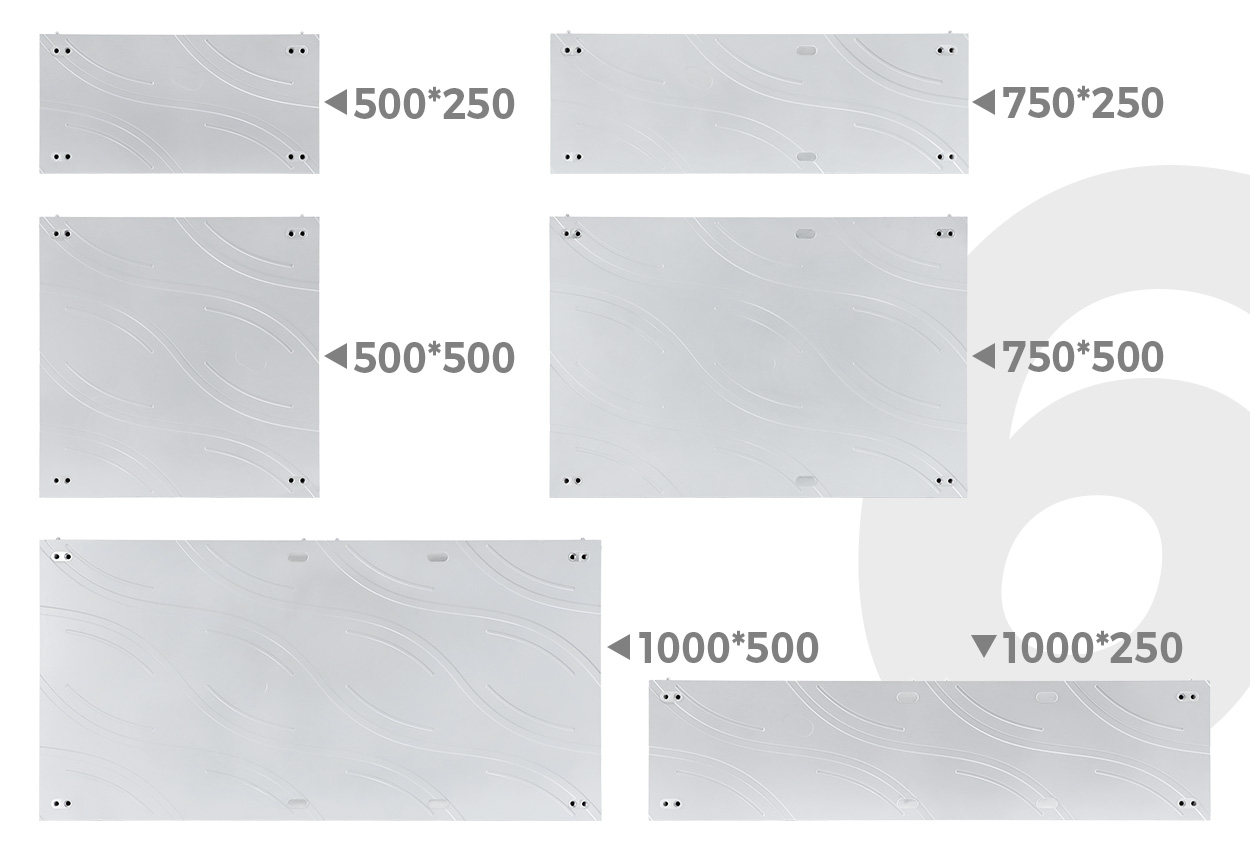

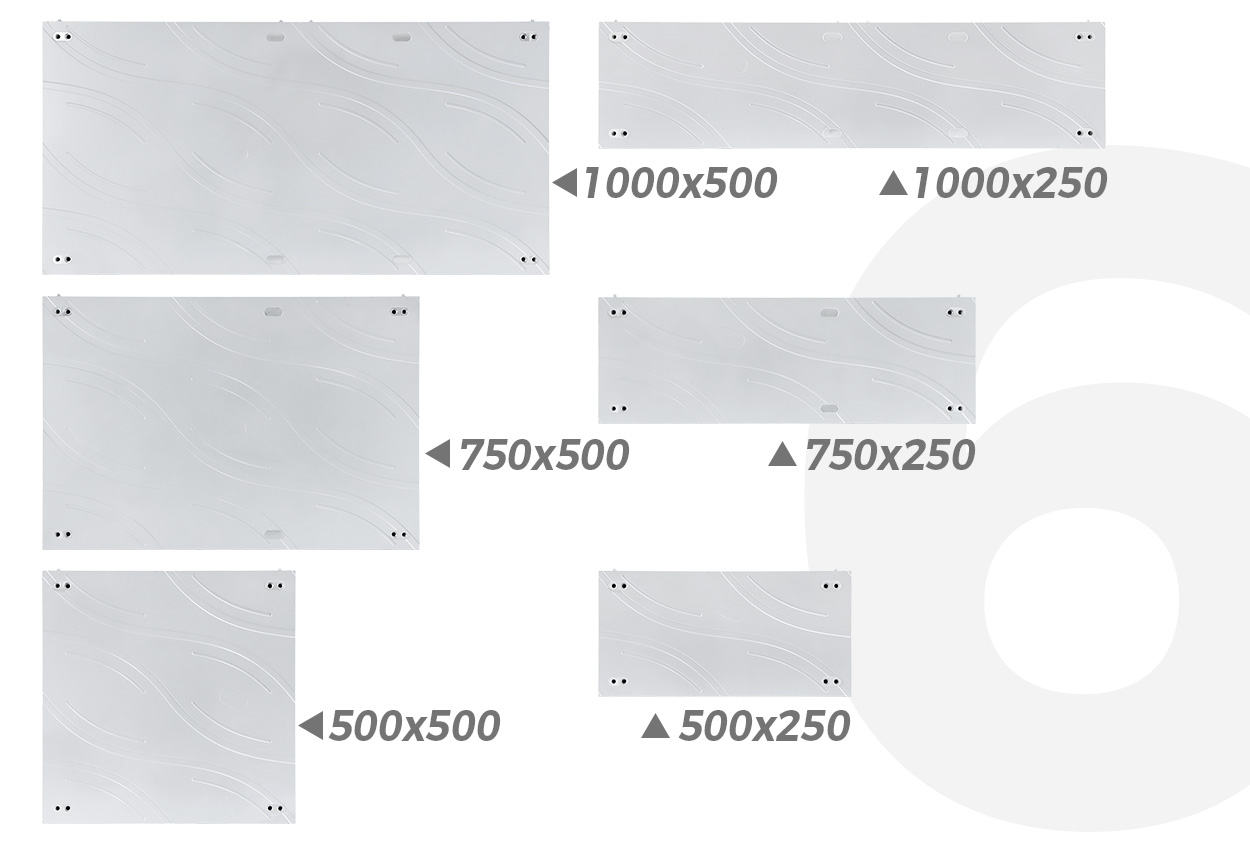

    Six Cabinet Sizes from 500 × 250 mm

    Built around 250 × 250 mm LED modules, the series offers six cabinet sizes: 500 × 250 mm, 750 × 250 mm, 1000 × 250 mm, 500 × 500 mm, 750 × 500 mm and 1000 × 500 mm. Mixing compatible cabinet formats helps match the video wall to the available surface while maintaining a consistent module grid.

    Six EA250WH5 cabinet sizes based on 250 × 250 mm modules

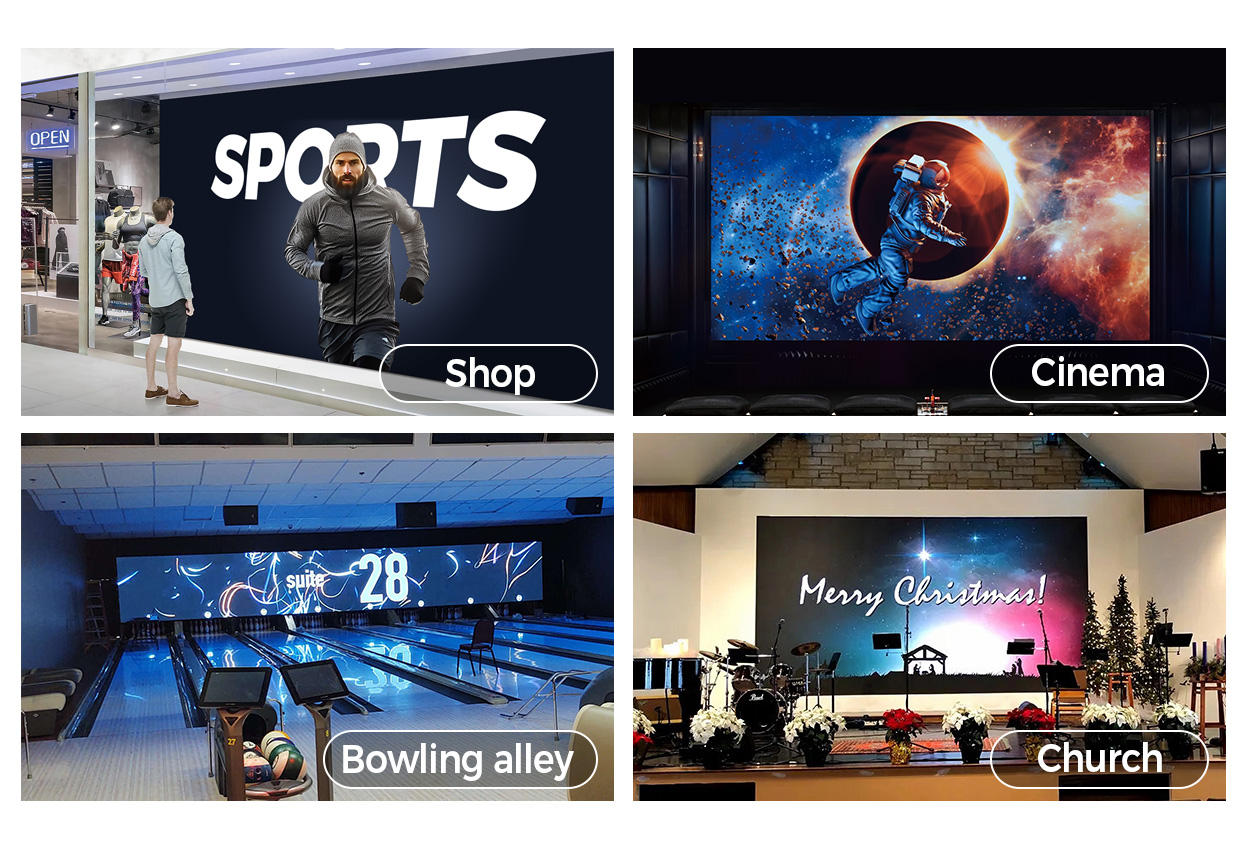

    Indoor Applications and Pixel Pitches

    Select from P1.25 GOB, P1.56 GOB, P1.95 GOB, P2.5, P2.6, P2.97 or P3.91 according to viewing distance and detail requirements. The published configurations provide 600–750 cd/m² brightness, a 160° viewing angle and a ≥3840 Hz refresh rate for indoor retail, corporate, control-room, church and home-cinema applications. Final specifications depend on the selected pixel pitch; confirm the project configuration with EagerLED before ordering.

    EA250WH5 indoor LED display wall application

    Customized New LED Display Solutions for You

      EA250WH5 Indoor LED Display Wall Specifications
