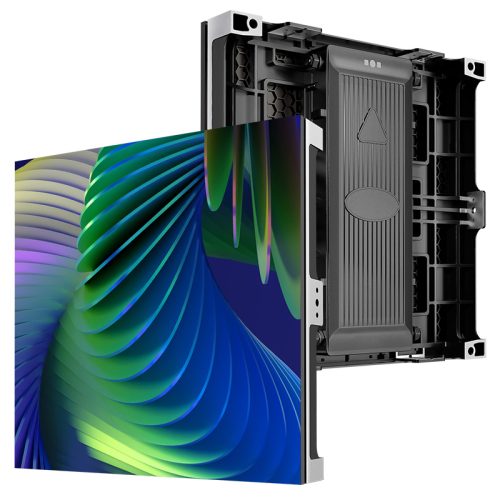

EA500RF2 Indoor GOB Floor LED Display
The EA500RF2 is an indoor GOB floor LED display designed for rental stages, exhibitions, conferences and immersive venues. Its 500 × 500 mm die-cast aluminum cabinet weighs 11.1 kg and supports pixel pitches from P1.52 to P2.6. Front-access maintenance, an IP54-rated front face, load capacity above 800 kg/m² and optional interactive sensors help production teams build durable floor screens for temporary events. Choose the pixel pitch according to viewing distance and content detail; the specification table below compares all five configurations.
Cabinet Design

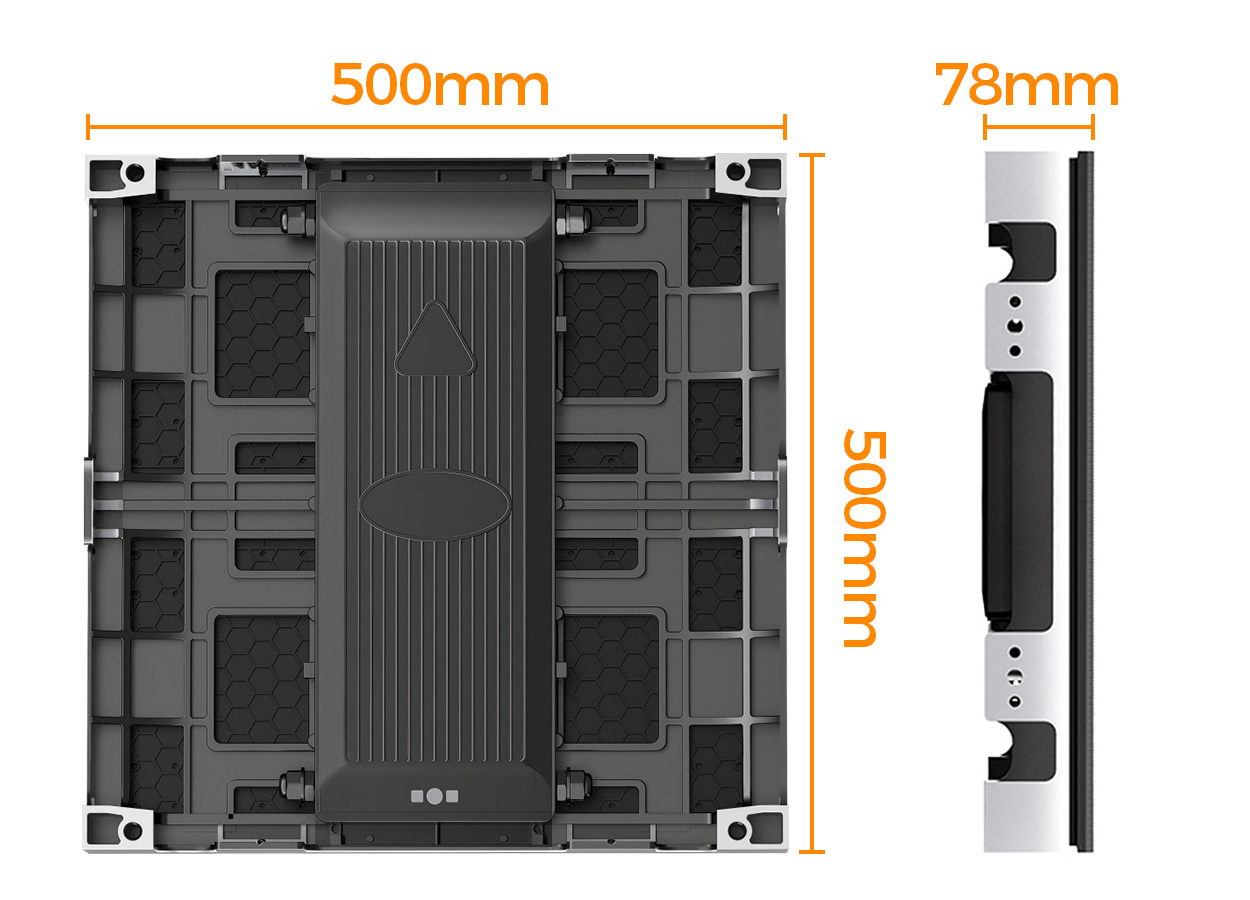

Each EA500RF2 cabinet measures 500 × 500 × 78 mm and weighs 11.1 kg. The compact square format simplifies screen-size planning and supports repeatable rental installation. Die-cast aluminum construction helps maintain cabinet alignment and a flat walking surface, while the 250 × 250 mm module format standardizes service parts across all five pixel-pitch options.
Front Service

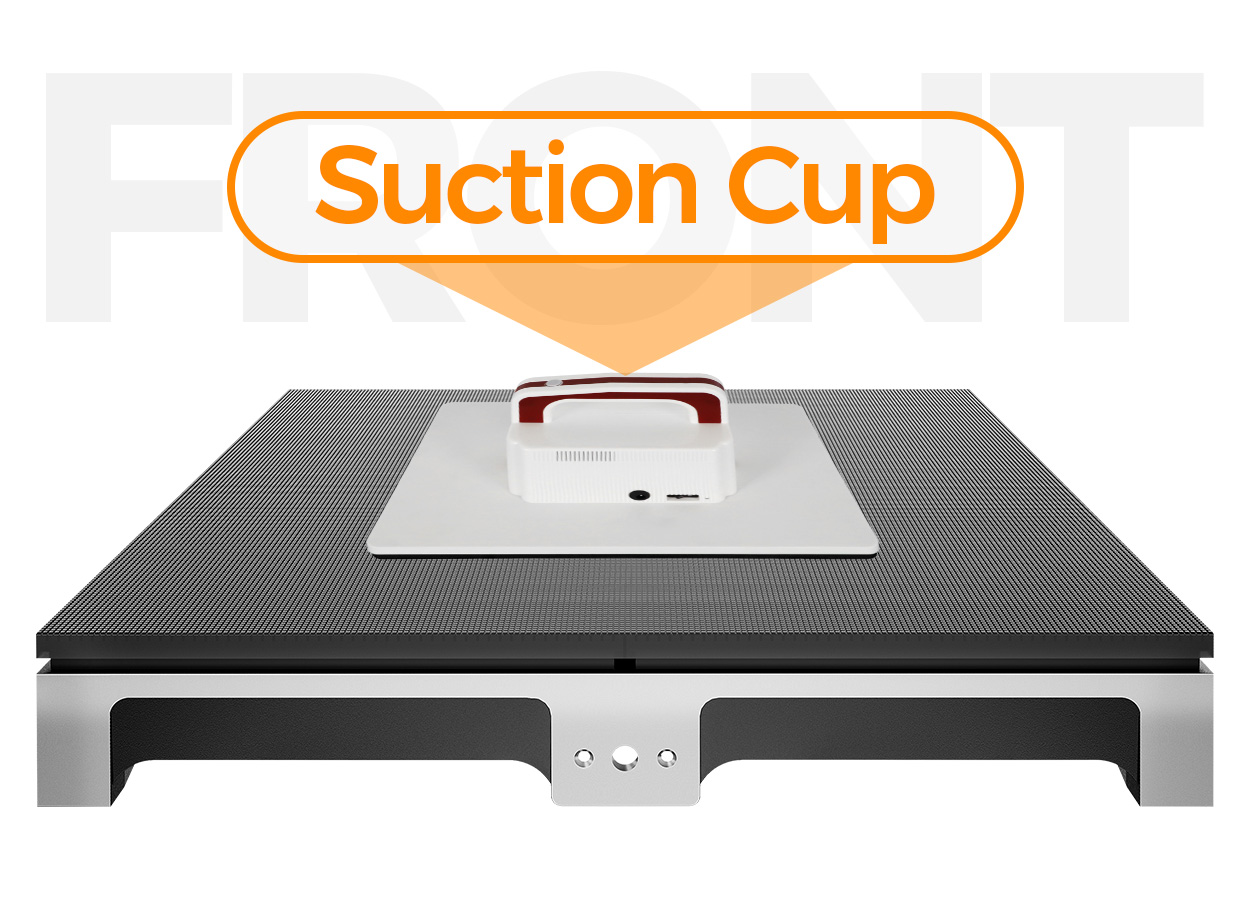

Front-service access allows technicians to remove and replace LED modules with a vacuum suction tool from the display surface. This is useful when the rear of the floor screen is blocked by the support structure or venue layout. Faster module access reduces the time needed for inspection and helps rental crews keep the display available between rehearsals, performances and exhibition sessions.

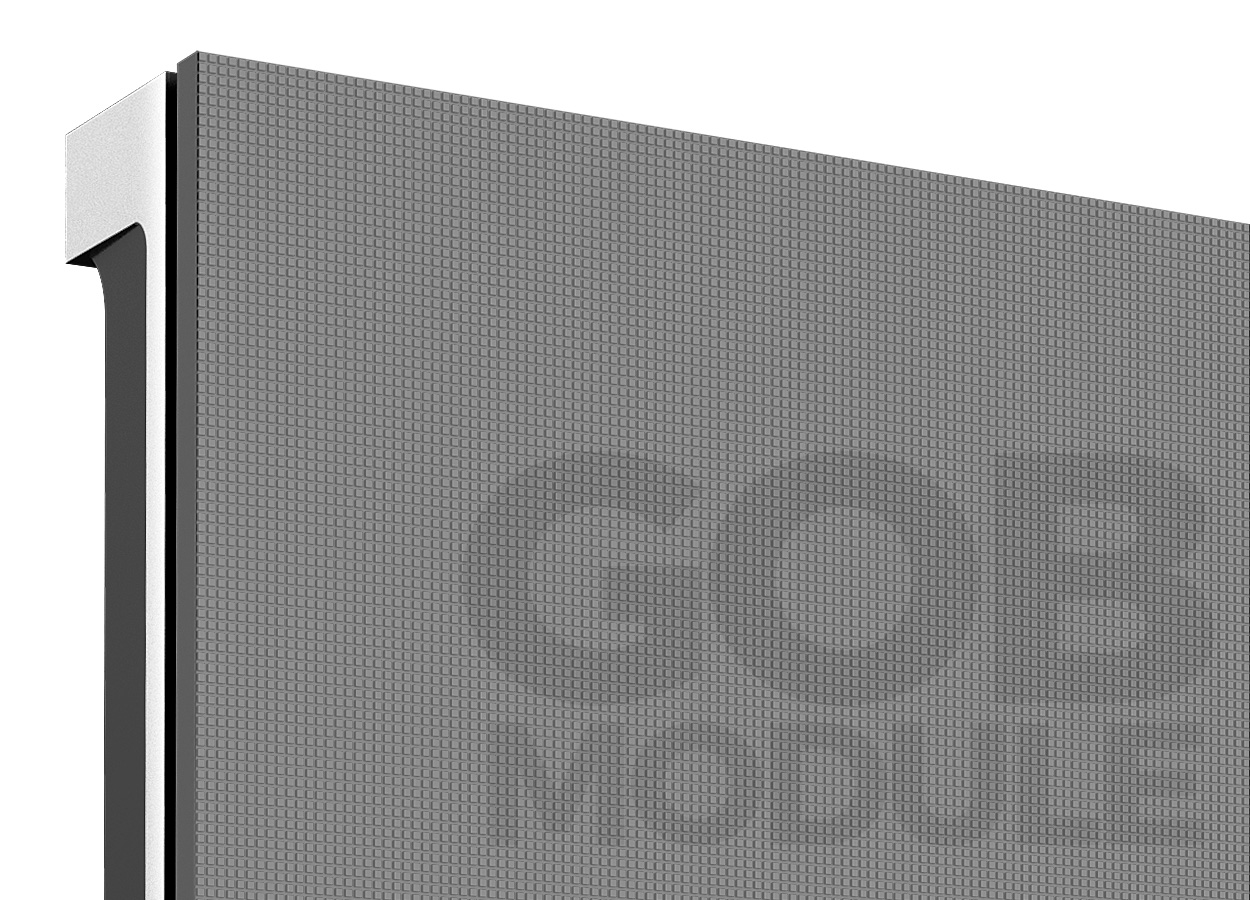

GOB LED Module

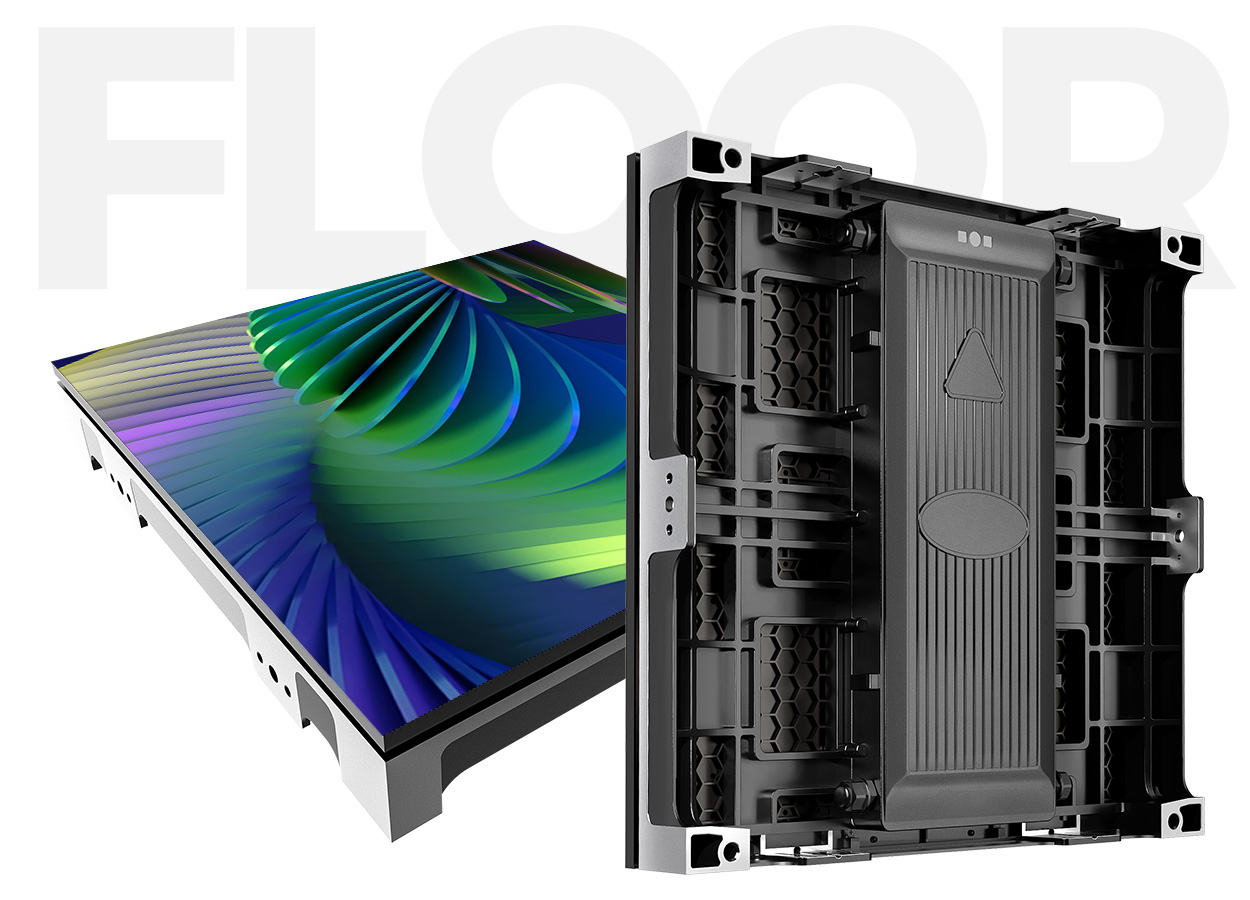

GOB (Glue on Board) technology applies a protective resin layer over the LED module. On the EA500RF2, this surface protection is paired with a sealed rear cover, an IP54-rated front and IP43-rated rear. The design is intended to reduce exposure to dust, splashes and direct contact in indoor floor applications. Protection ratings describe enclosure resistance, not permission for outdoor use or standing water; this model is specified for indoor installation.
High Load-bearing Capacity
EA500RF2 panels are rated for a load capacity above 800 kg/m², supporting performers and event traffic when the screen is installed on the specified floor support system. The rating applies to a correctly assembled structure; project teams should confirm subfloor conditions, load distribution and venue safety requirements before use. This combination of structural support and a protected GOB surface makes the display suitable for demanding rental floors.
Convenient Installation

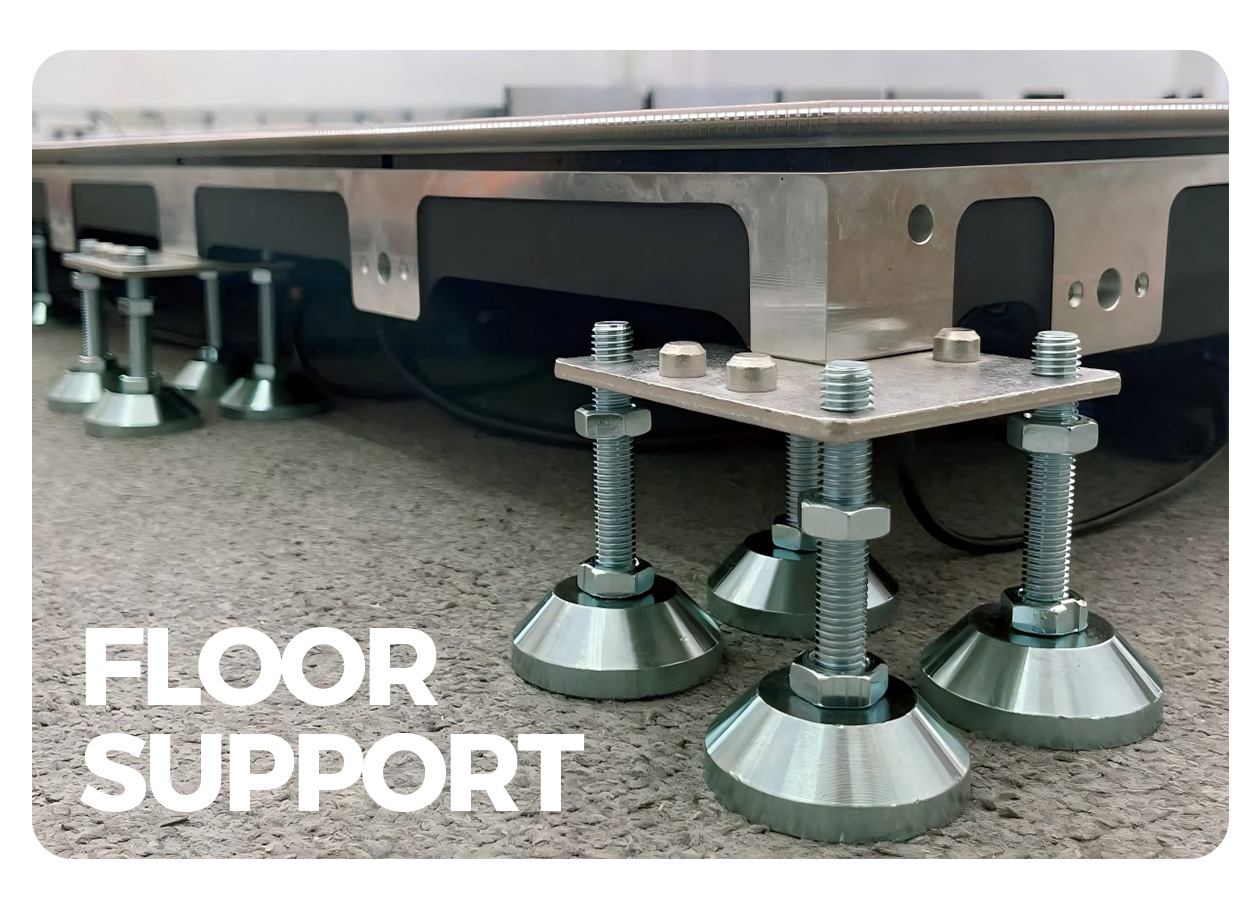

The 500 × 500 mm cabinets assemble on a dedicated floor support structure, allowing crews to build a flat screen area in repeatable half-meter increments. Each cabinet weighs 11.1 kg, which supports handling during rental setup and teardown. Before power-up, verify cabinet locks, support leveling, cable routing and surface alignment. For video capture, the published specification lists a refresh frequency of at least 3480 Hz across every pixel-pitch option.
Interactive Induction (Optional)
Optional sensor chips can detect steps or touch and send real-time position data to compatible interactive content. This enables responsive effects for product launches, museum exhibits, stages and branded activations. Interaction is optional, so buyers should specify the sensor package, media server and content workflow when requesting a quote. A non-interactive configuration can be selected for standard playback projects.
Wide Application

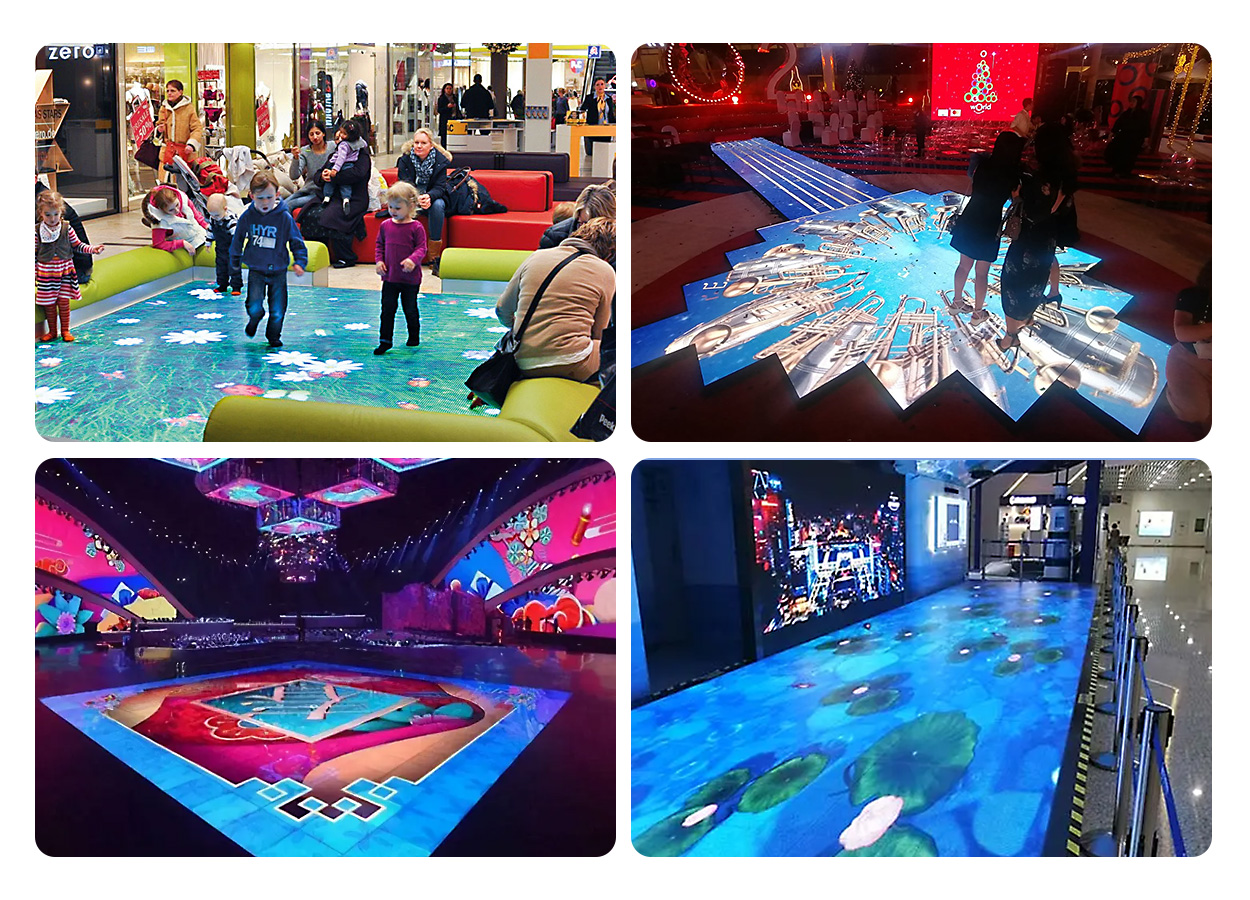

The EA500RF2 is designed for indoor rental stages, theaters, hotels, concert halls, exhibitions and shopping malls. P1.52 or P1.86 can suit close-viewed, detail-rich content, while P2.5 or P2.6 can suit larger floors viewed from farther away; the final choice depends on viewing distance, camera use, budget and screen size. For accurate configuration, share the installation dimensions, expected audience distance, event schedule and whether interactive effects are required.
