EA1000TiF2 Fixed Indoor Transparent LED Screen
Get a Custom Indoor Transparent LED Screen Solution

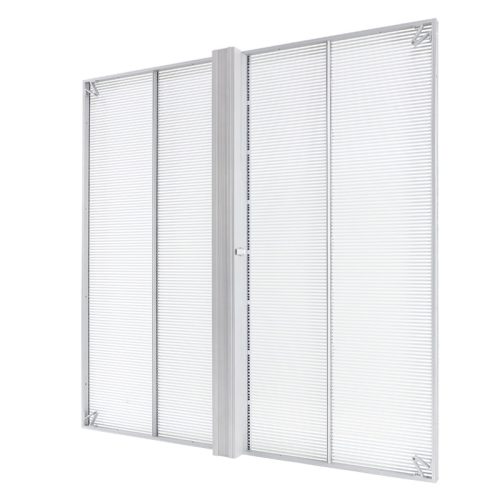

EA1000TiF2 Indoor Transparent LED Screen Overview
The EagerLED EA1000TiF2 is a fixed indoor transparent LED screen designed for retail windows, glass walls, showrooms, and commercial interiors. It delivers 60% transparency with brightness up to 5000 cd/m², a 140° viewing angle, and a refresh rate of at least 3840 Hz. The 6.7 kg aluminum cabinet and rear-access design simplify fixed installation and routine service.

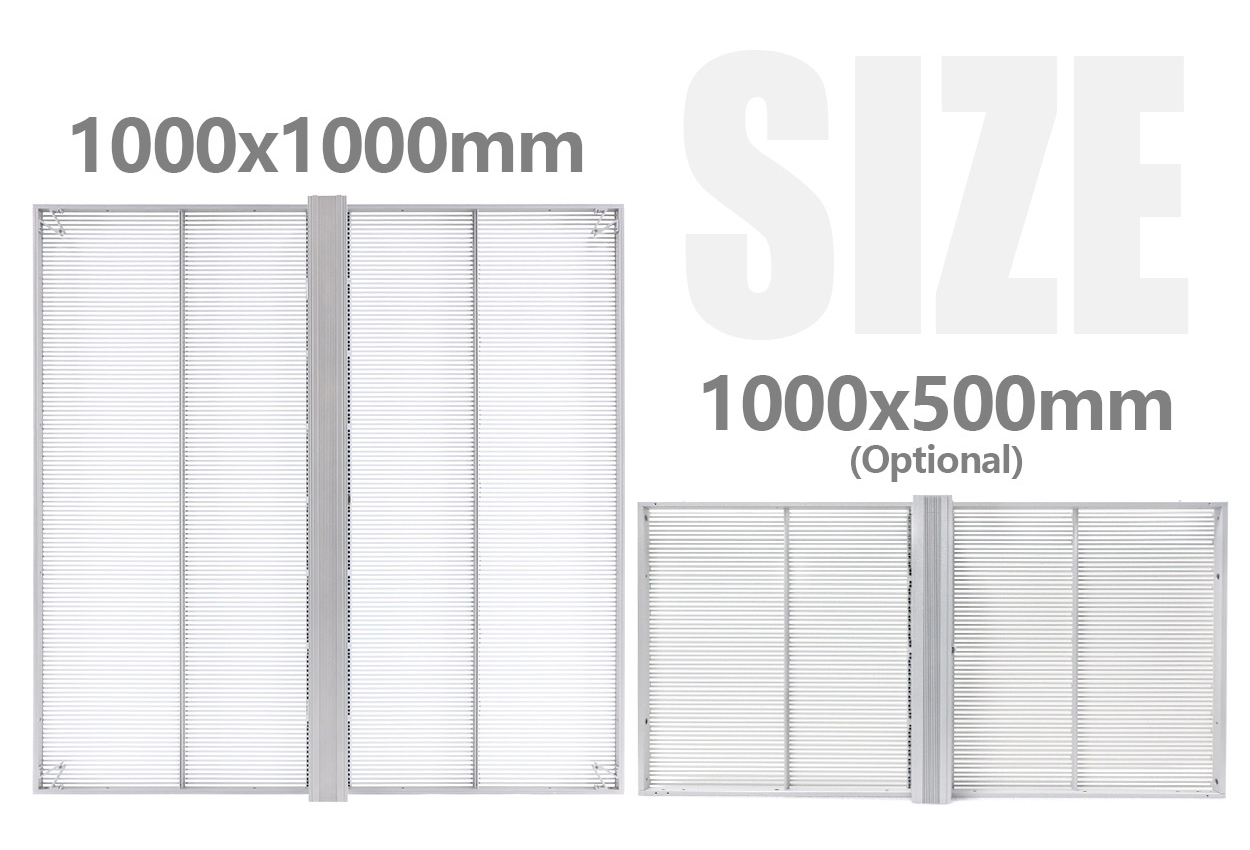

Two Cabinet Sizes for Flexible Installation
EA1000TiF2 offers 1000 × 1000 mm and 1000 × 500 mm cabinet options for different indoor installation areas. The modular cabinet formats help installers plan screen width and height for retail windows, glass partitions, exhibition spaces, and commercial interiors.

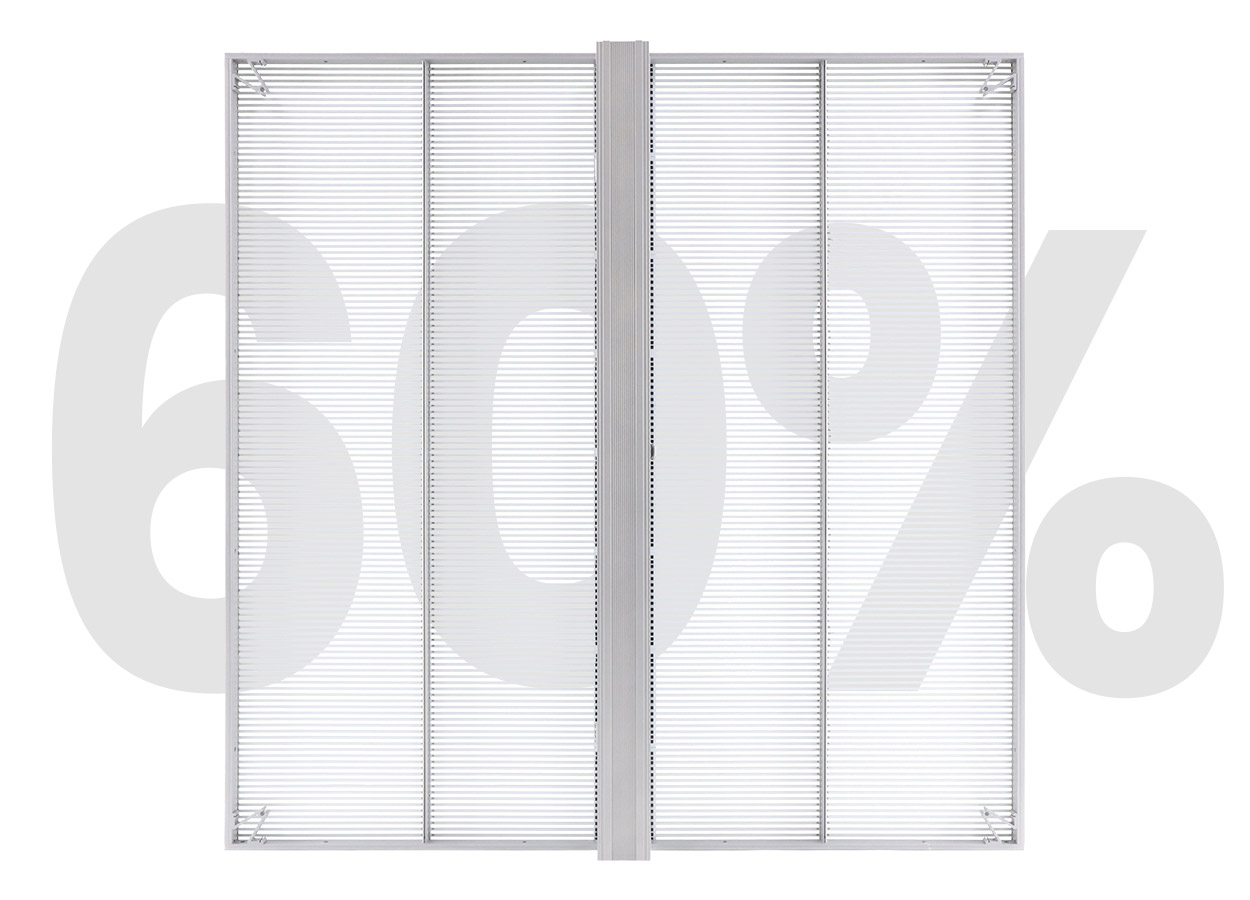

60% Transparency for Glass Installations
With 60% transparency, the EA1000TiF2 keeps sightlines and ambient light visible through the installation while presenting digital content across the glass surface. This balance suits indoor spaces where the display must attract attention without completely blocking the view behind it.

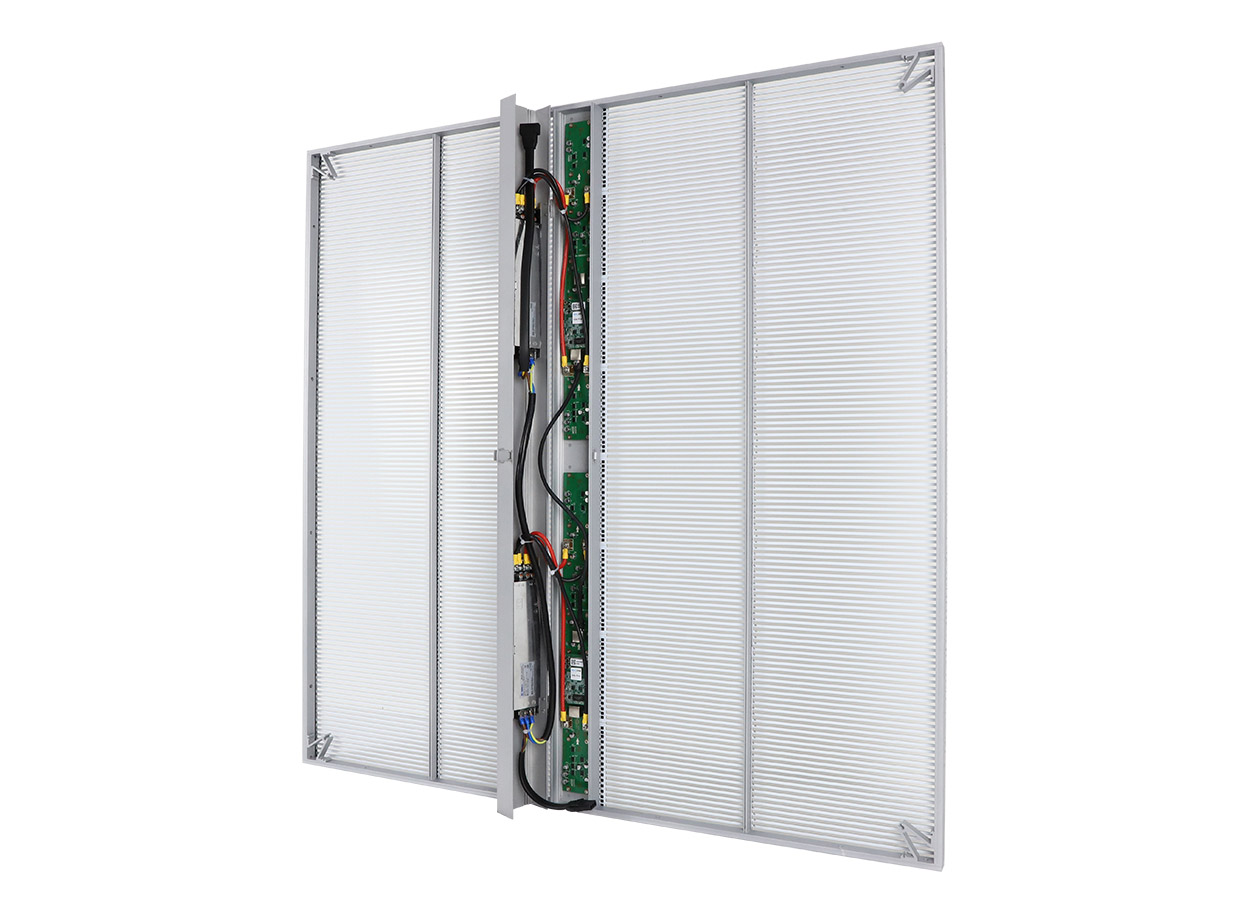

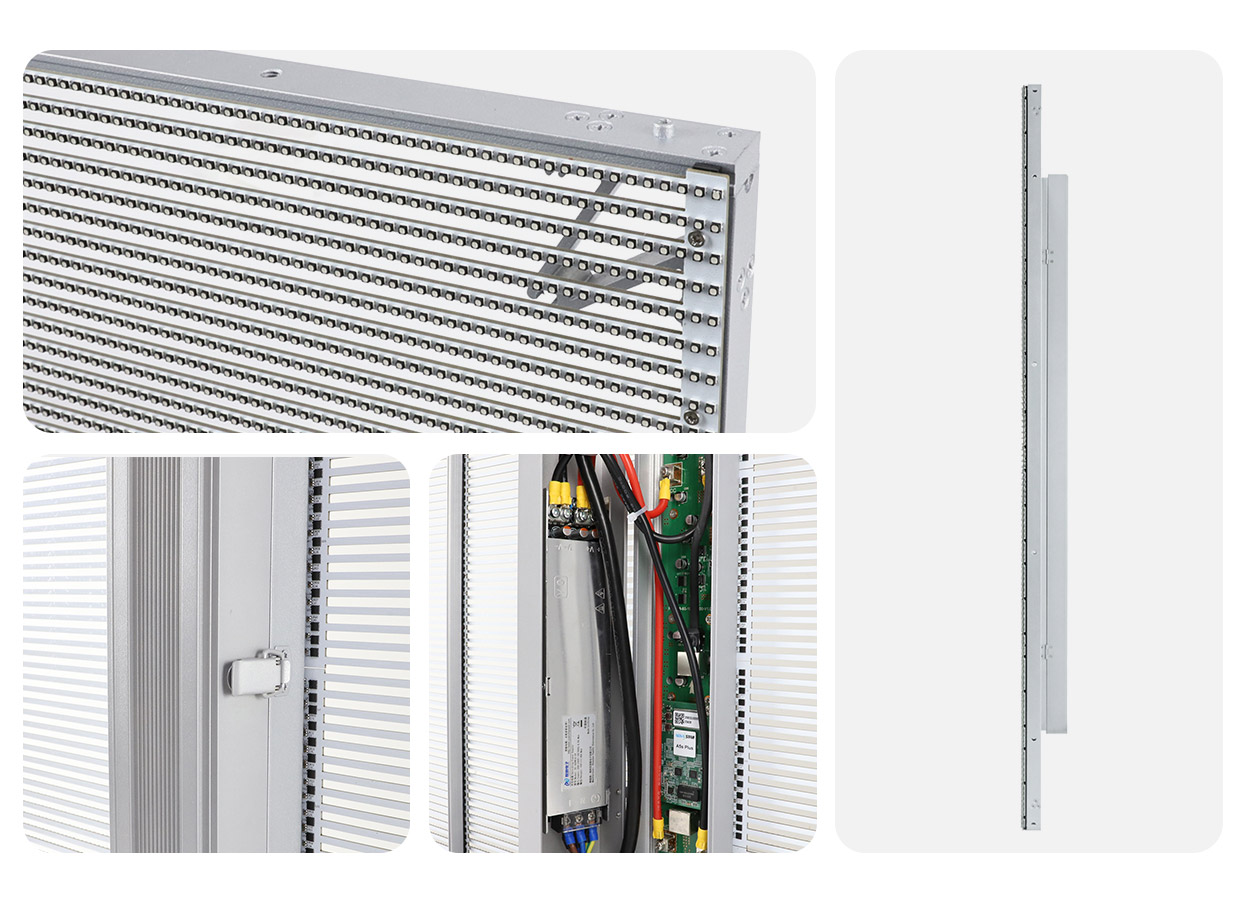

Rear-Access Maintenance
The openable rear cover provides direct access to the cabinet interior for routine inspection and service. Its rear-access structure is designed for fixed indoor installations where maintenance is planned from behind the screen.

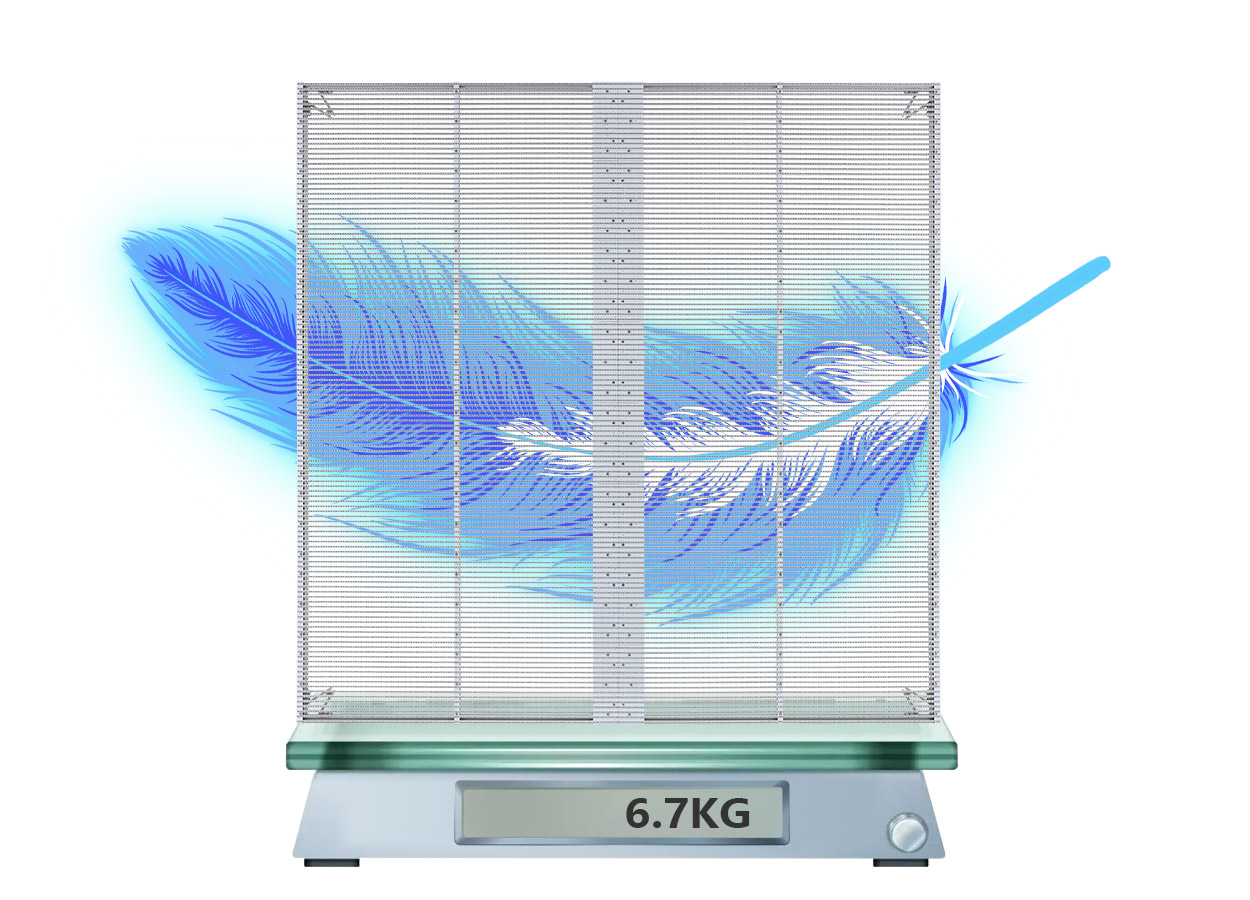

6.7 kg Lightweight Aluminum Cabinet
The 1000 × 1000 mm EA1000TiF2 cabinet weighs 6.7 kg and uses an aluminum frame. The lightweight structure simplifies handling during installation and helps reduce the load placed on supporting structures.
Indoor Aluminum Cabinet Design
The aluminum cabinet has an IP33 protection grade and is designed for fixed indoor use. Published operating specifications include a temperature range of -20°C to +60°C, average power consumption of 220 W/m², and maximum power consumption of 800 W/m². Confirm site ventilation, power capacity, and mounting conditions before installation.
Seamless Cabinet Splicing
EA1000TiF2 cabinets are designed to align into a continuous display surface across wider glass areas. The modular cabinet structure supports predictable screen planning, while accurate frame alignment helps minimize visible gaps between adjacent cabinets.
