EA250H8 Rental LED Display
250 × 500 mm 90-degree corner cabinet
Custom EA250H8 LED Display Configuration

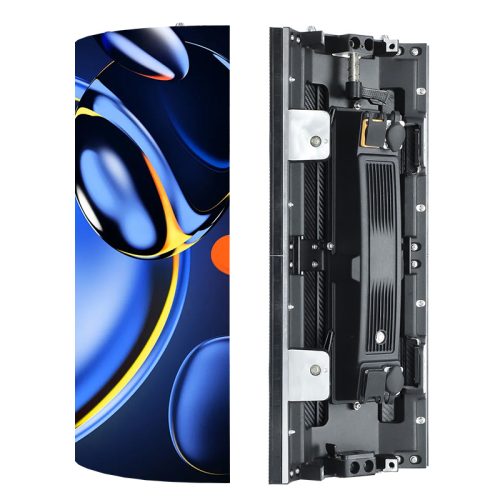

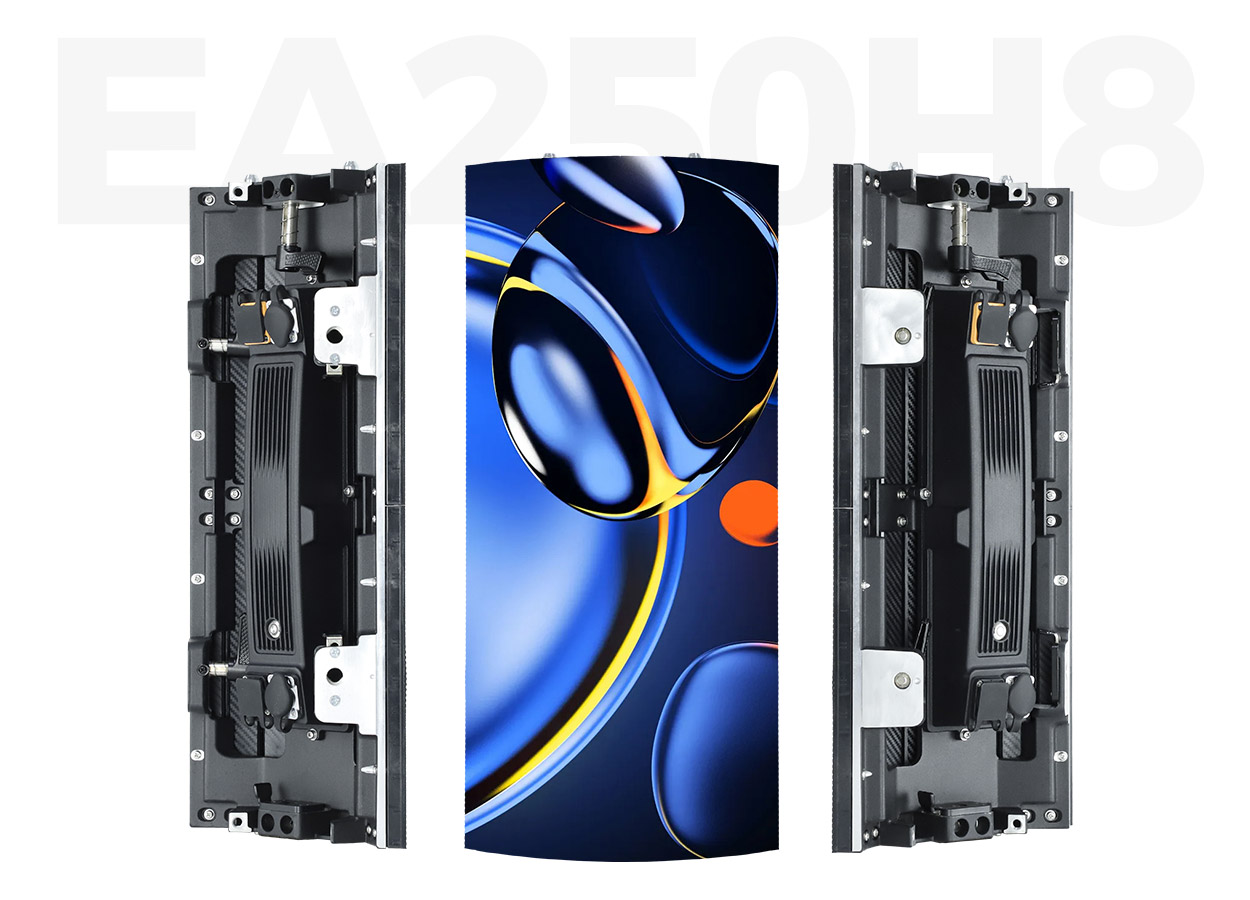

EA250H8 90-Degree Corner Rental LED Display
The EagerLED EA250H8 is a 250 × 500 mm rental LED display cabinet designed for 90-degree corners and cylindrical installations. It connects with EA500H7, EA500H8, EA500H8V, and EA1000H8 cabinets, giving stage-rental teams a compact corner module for mixed-size creative LED walls.

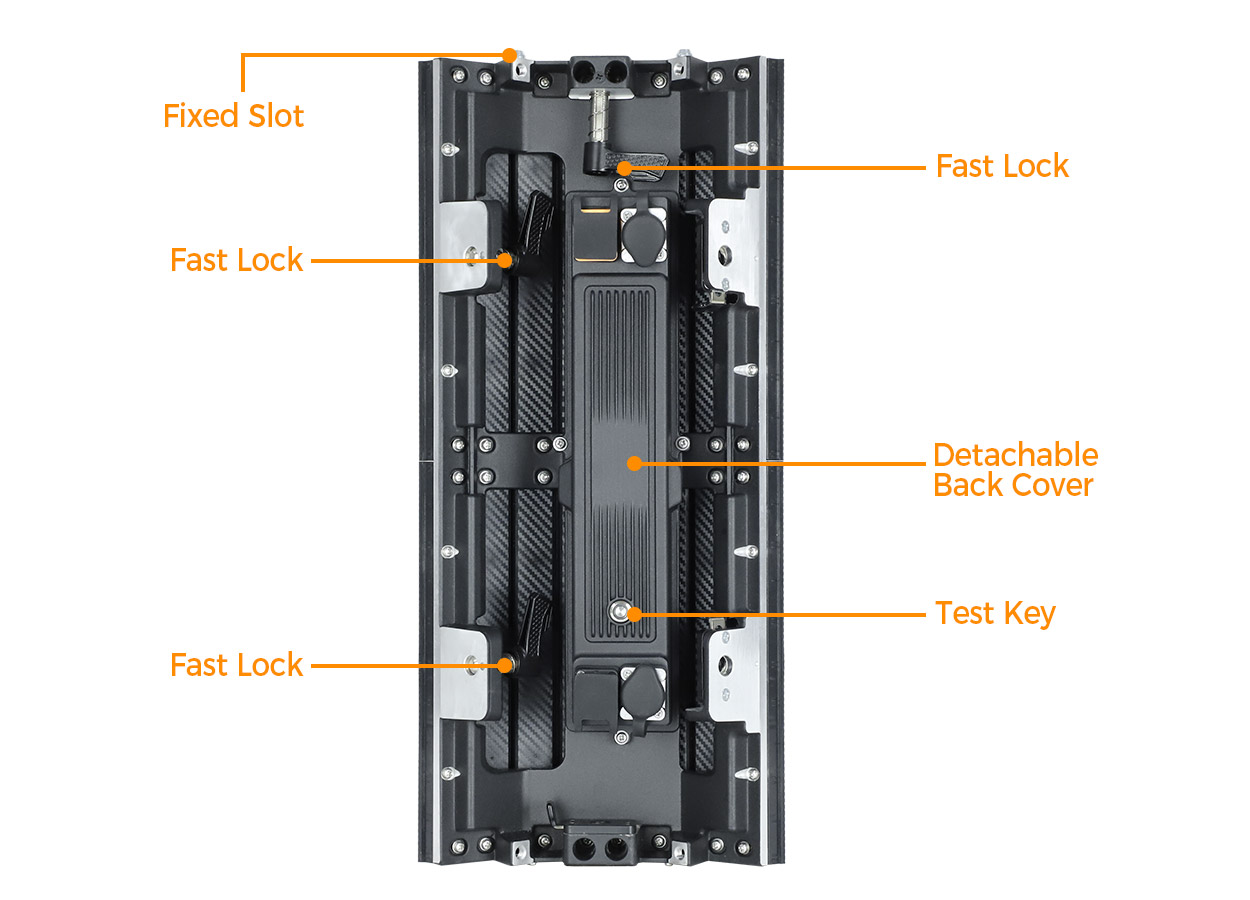

Rental-Ready Cabinet Design
Fixed mounting slots and fast locks help crews align and secure cabinets during repeated rental setup. A test button and detachable rear power box keep common checks and service access on the cabinet.

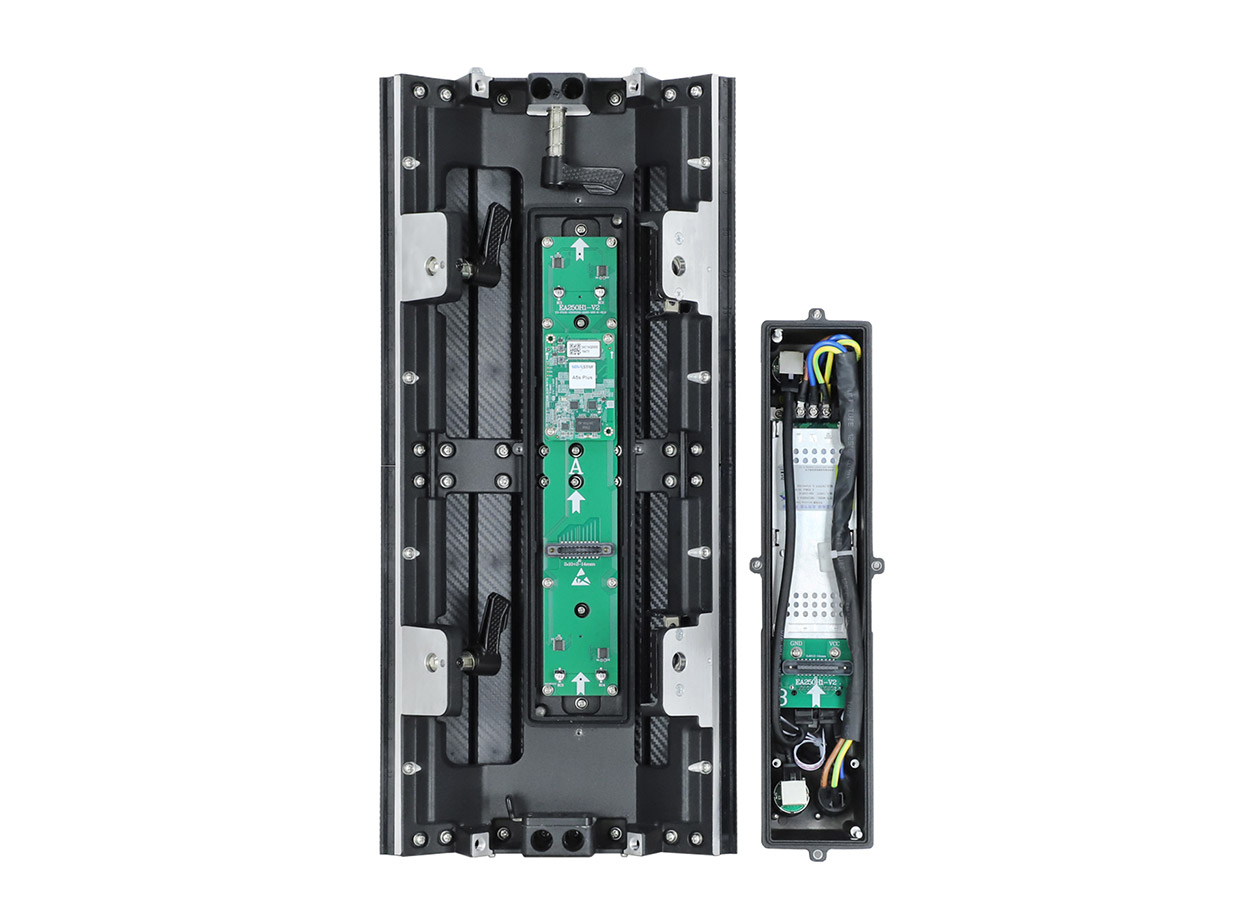

Detachable Power Box and Hub Connection
The detachable rear power box gives technicians direct access to power and signal components. Its hub connection design keeps the cabinet interface compact and supports efficient maintenance between rental events.

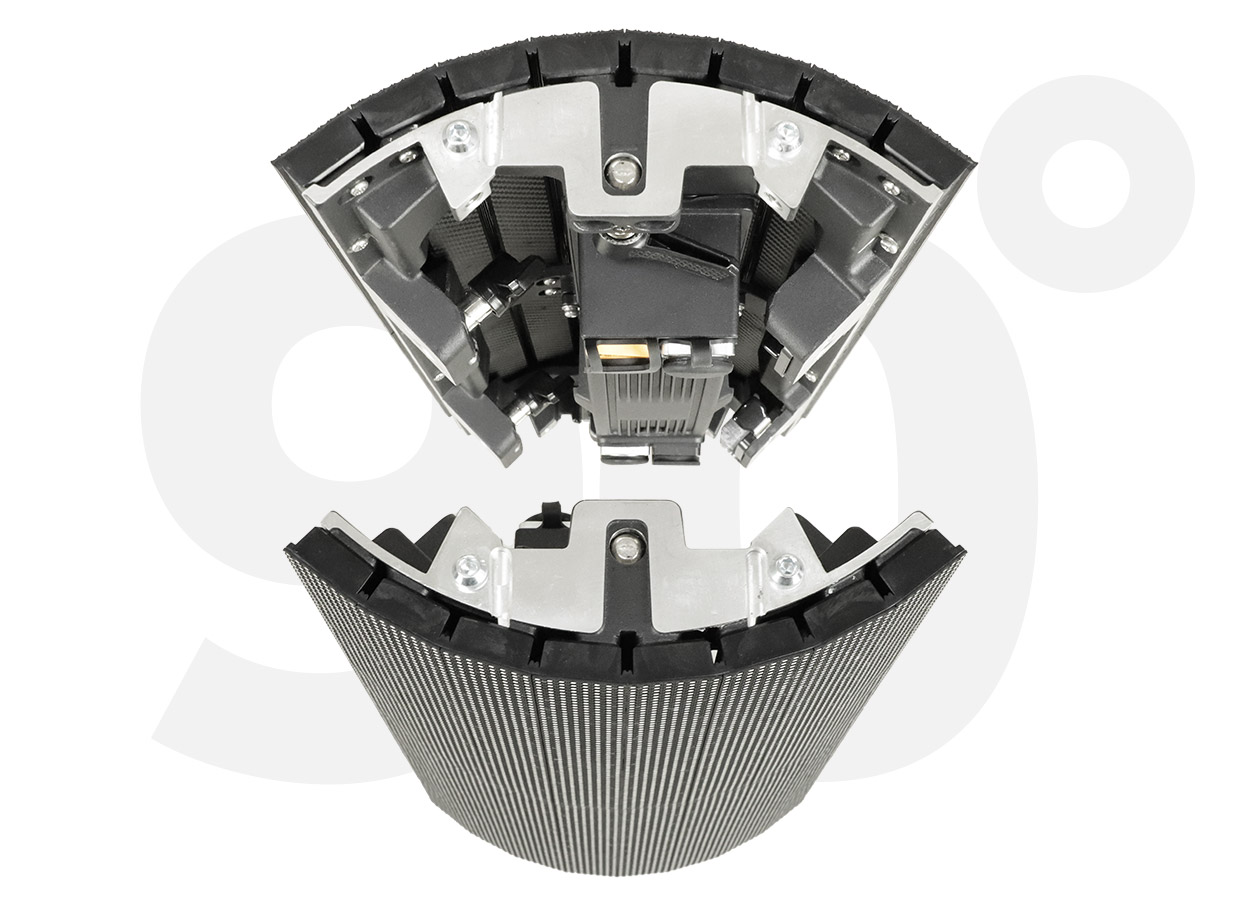

90-Degree Corner LED Display
The EA250H8’s 90-degree cabinet geometry supports right-angle LED walls and curved corner configurations for stages, exhibitions, and creative rental installations.

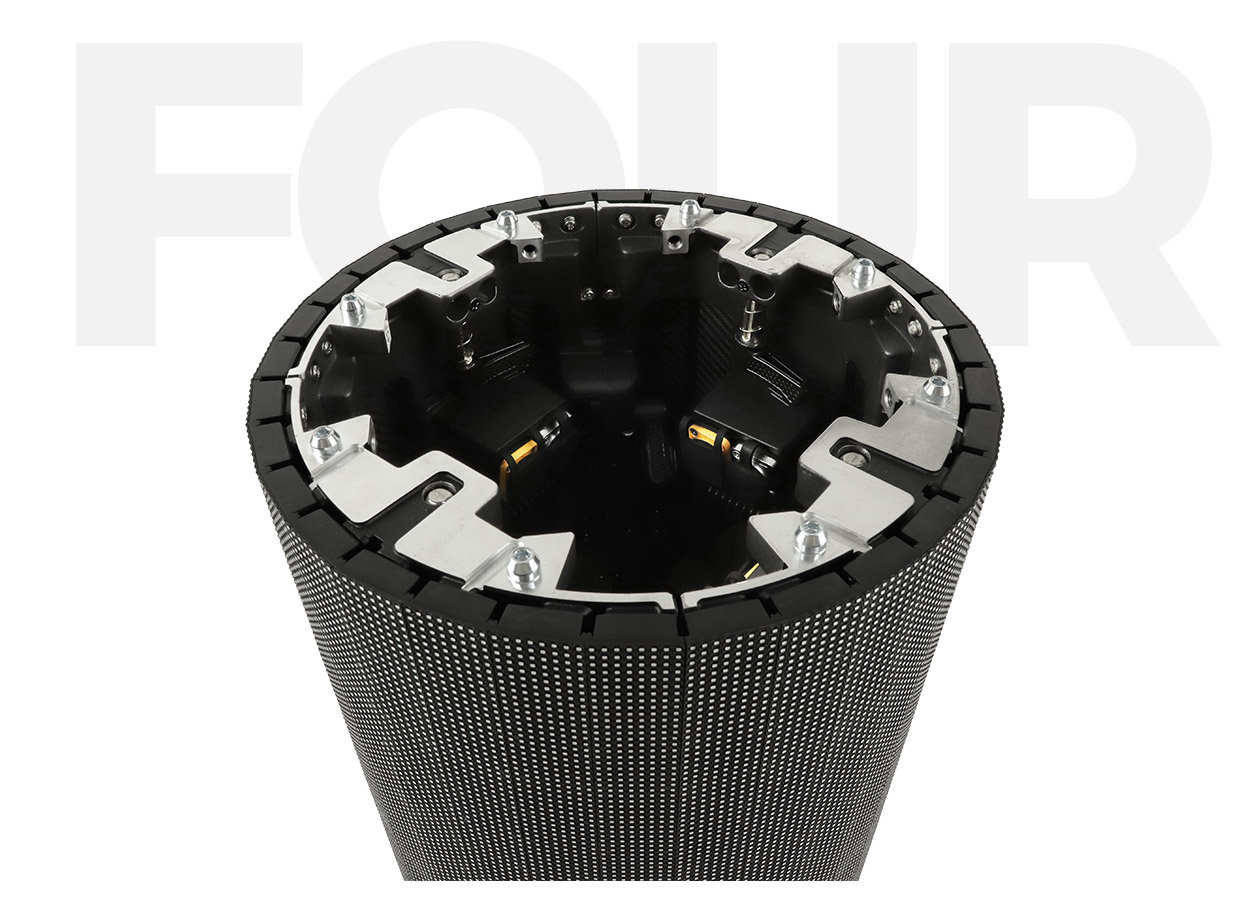

Cylindrical LED Display Configuration
Four EA250H8 cabinets can be joined into a cylindrical LED display. This four-cabinet configuration turns the 90-degree cabinet geometry into a continuous creative display for stage and event designs.

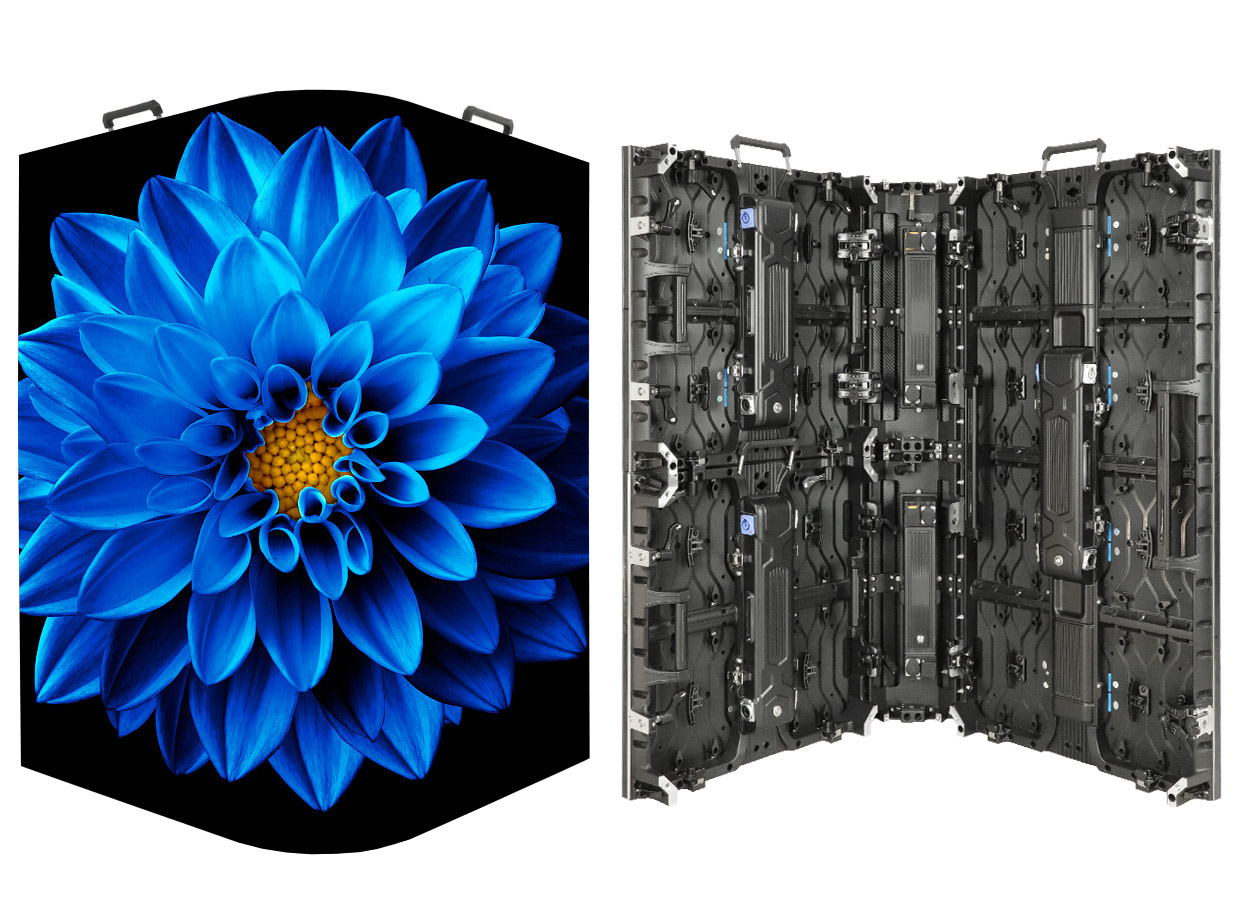

Compatible Rental Cabinet Splicing
EA250H8 connects with EA500H7, EA500H8, EA500H8V, and EA1000H8 rental cabinets. Installers can combine the 250 × 500 mm corner cabinet with larger cabinets in one right-angle LED wall.
High-Refresh LED Display Performance
The EA250H8 series supports a refresh rate of at least 3,840 Hz, 14-bit grayscale, and a 140° viewing angle across the listed indoor and outdoor variants. Brightness ranges from 750 cd/m² for indoor models to 4,800 cd/m² for the P3.91 outdoor model.
