EA576H1
Customized New LED Display Solutions for You
EA576H1 Outdoor Rental LED Display
The EagerLED EA576H1 is a 576 x 576 mm outdoor rental LED display for stage events, exhibitions and rental inventory. Choose P3.79 or P4.8 pixel pitch, with 4500 cd/m² brightness and a refresh rate of at least 3840 Hz. Each 8 kg cabinet supports front and rear service. Quick locks, corner protectors and a removable power box support repeated setup and maintenance.
576 x 576 mm Rental LED Cabinet Design
Each EA576H1 cabinet uses 288 x 288 mm LED modules within a 576 x 576 mm frame. Handles, fixing slots and quick locks help crews position and connect panels, while corner protectors help protect module edges during handling. Plan wall dimensions in 576 mm increments: for example, a 10-cabinet-wide row measures 5.76 m. Compare cabinet formats in our rental LED display range before choosing your system.
Front and Rear Service
The EA576H1 outdoor rental LED screen supports maintenance from both the front and rear of the cabinet. Magnetic LED modules provide front access, while the rear design gives technicians another service route. Choose the access method that suits the installed wall and available working space. Confirm module removal tools, spare modules and service clearance with EagerLED when planning your rental inventory.

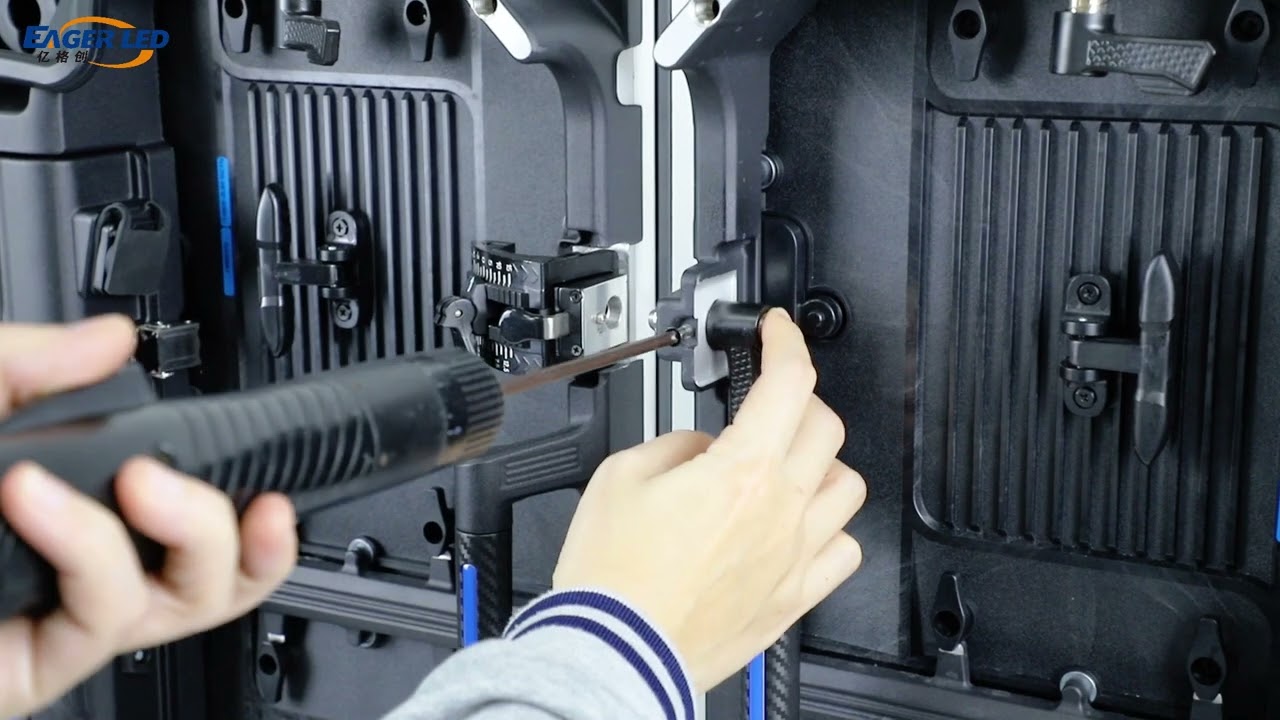

Detachable Back Cover
A detachable rear power box and quick-release buckle give technicians access to the cabinet electronics. The HUB connection design links the cabinet components, and the removable cover supports inspection and replacement work. For a rental fleet, specify compatible spare power supplies and receiving cards with your order. Confirm the supplied electronics and connection layout before ordering replacement parts, because project configurations may differ.
Can the EA576H1 Form a Curved LED Wall?
Yes. An optional high-precision curved lock allows EA576H1 cabinets to form an arc-shaped LED wall. Request this option when ordering a curved stage backdrop, and confirm the supported angles and layout with EagerLED before finalizing the design. The curved lock is optional equipment. Share the required screen width and curvature so the quotation includes the appropriate cabinet locks and accessories.
P3.79 or P4.8: Which Pixel Pitch Fits Your Event?
Pixel pitch is the distance between adjacent pixels. EA576H1 offers P3.79 and P4.8 options: the listed module resolutions are 76 x 76 pixels and 60 x 60 pixels, respectively. P3.79 provides more pixels within the same cabinet size. Choose based on viewing distance, content detail and budget; request a content demonstration for your intended audience distance rather than selecting by pitch alone.
4500 cd/m² Brightness and 3840 Hz Refresh Rate
Both listed configurations provide 4500 cd/m² brightness, 14-bit grayscale and a 140° viewing angle, with a refresh frequency of at least 3840 Hz. The specified protection grades are IP65 at the front and IP54 at the rear; the two sides have different ratings. Check the complete installation requirements for your outdoor venue. For filmed events, test the actual camera, shutter and processor settings before the show.
Outdoor Rental LED Screen for Stages and Events
EA576H1 is designed for rental companies, event production teams and exhibition contractors building temporary video walls. View the EagerLED EA576H1 product video for a closer look at the cabinet. To obtain a product quotation, send your wall dimensions, pixel pitch, installation method and delivery destination through our contact page. Learn more about EagerLED, the manufacturer supplying this display.
