EA-OFloor

Outdoor Floor LED Screen
  • IP67 protection level
  • Easy installation, wide application
  • High flatness, excellent visual effects
  • High protection design
  • High load-bearing capacity
  • Optional interactive function
  • 3840Hz high refresh rate
Get Quote Now!
Linkedin

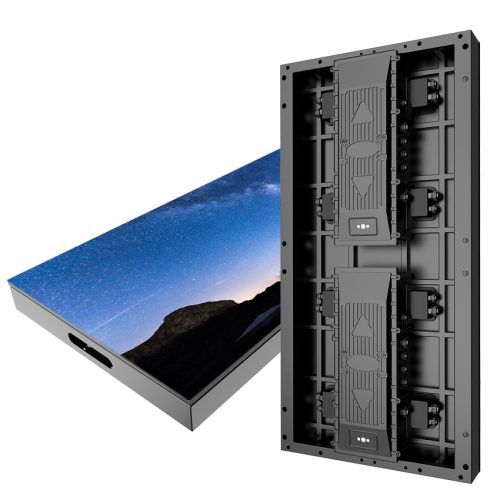

Front view of a large LED display panel showing a starry night landscape, with its rear modular driver cabinets exposed beside it.

Customized New LED Display Solutions for You

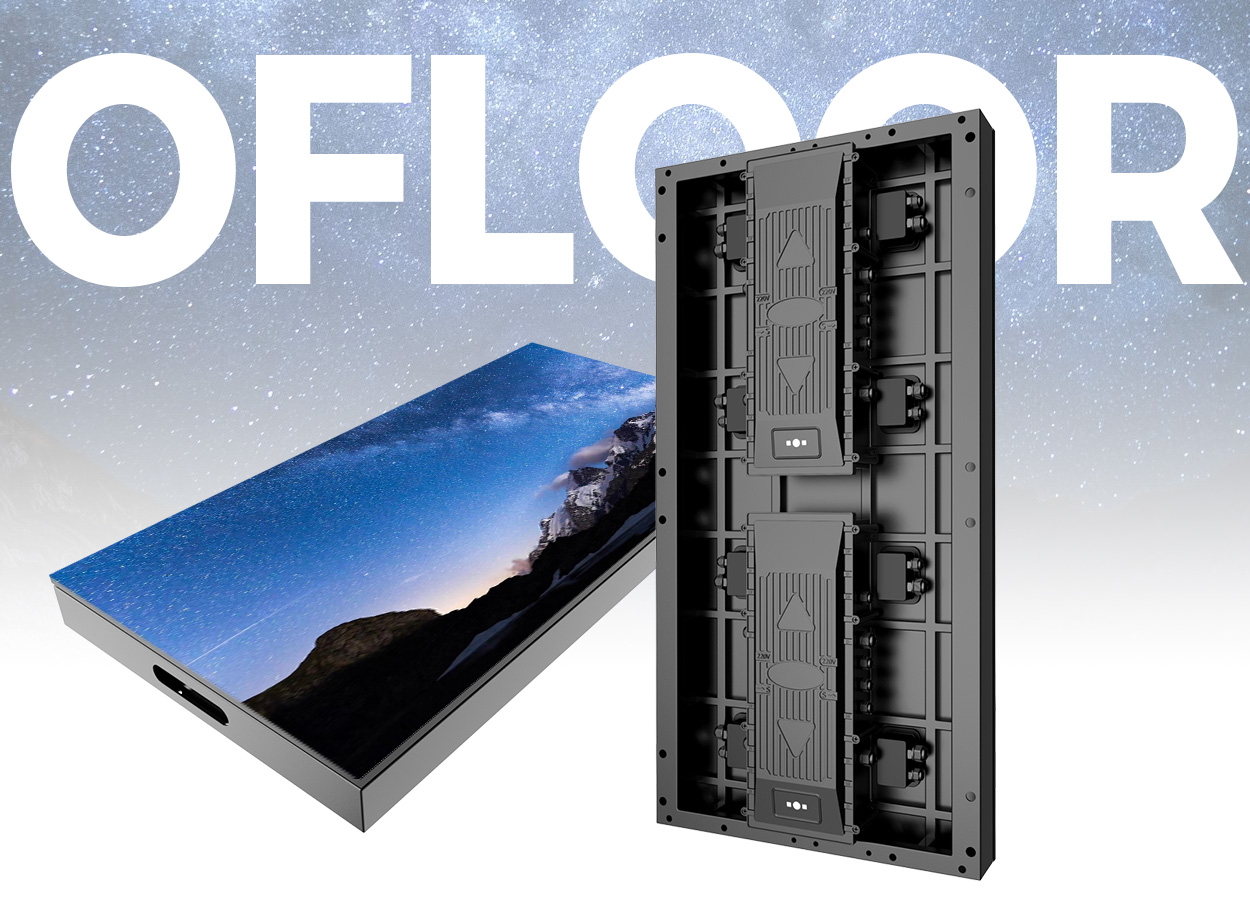

    500x1000mm EA-OFloor Outdoor Floor LED Screen

    EA-OFloor Outdoor Floor LED Screen adopts special designs in terms of load-bearing, protective performance, and heat dissipation performance. The front and rear protection level reaches IP67, and the floor tile screen can operate stably outdoors for a long time.

    Flat screen display leaning against a tall modular LED panel rack with a large FLOOR logo behind it on a starry background

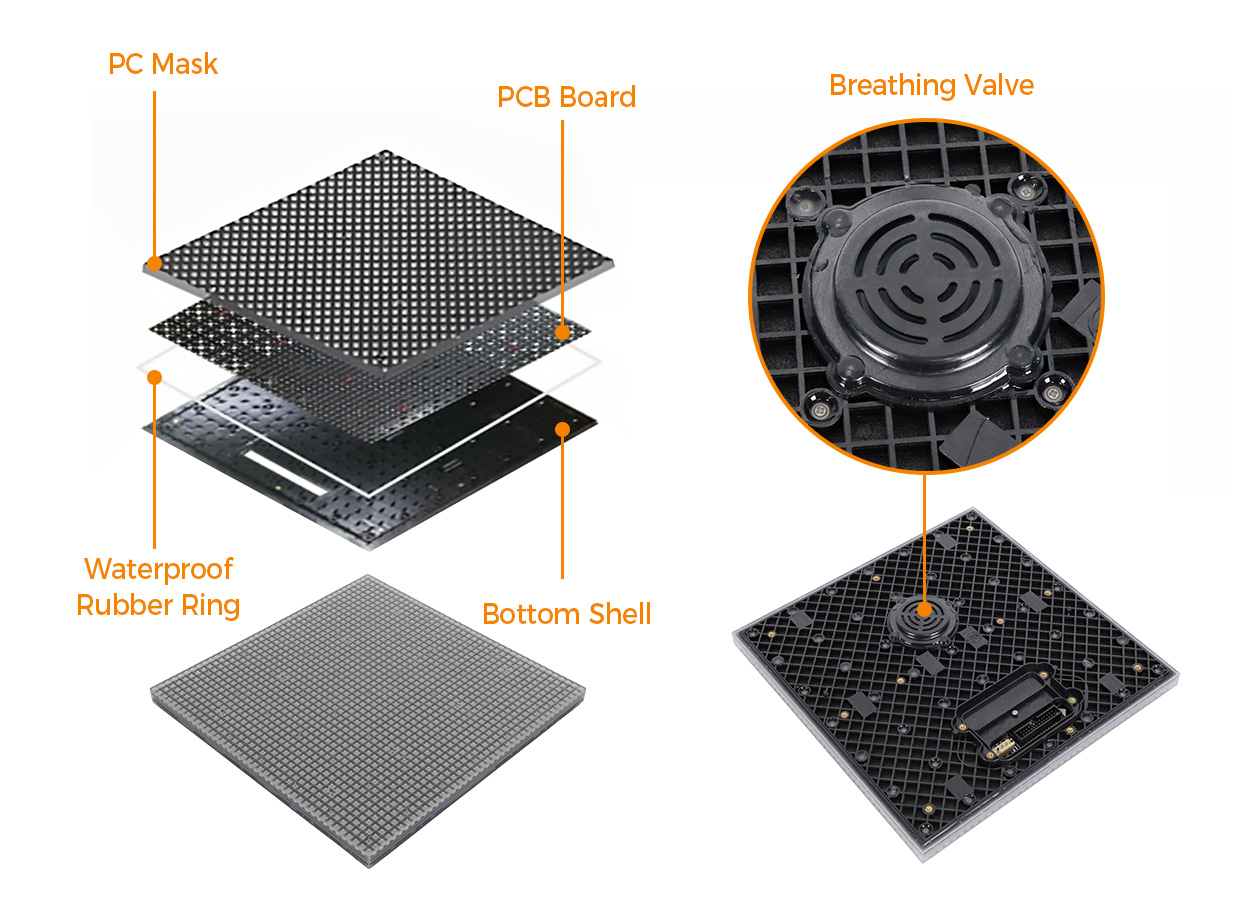

    Module with Anti-scratch Mask

    The module surface is equipped with a mask, convex design, and protective rubber ring to increase waterproof performance. The bottom shell of the module is equipped with a breathing valve to reduce thermal expansion and contraction and increase the service life of the module.

    Exploded view of a module showing PC mask PCB board waterproof rubber ring and bottom shell pieces labeled informative

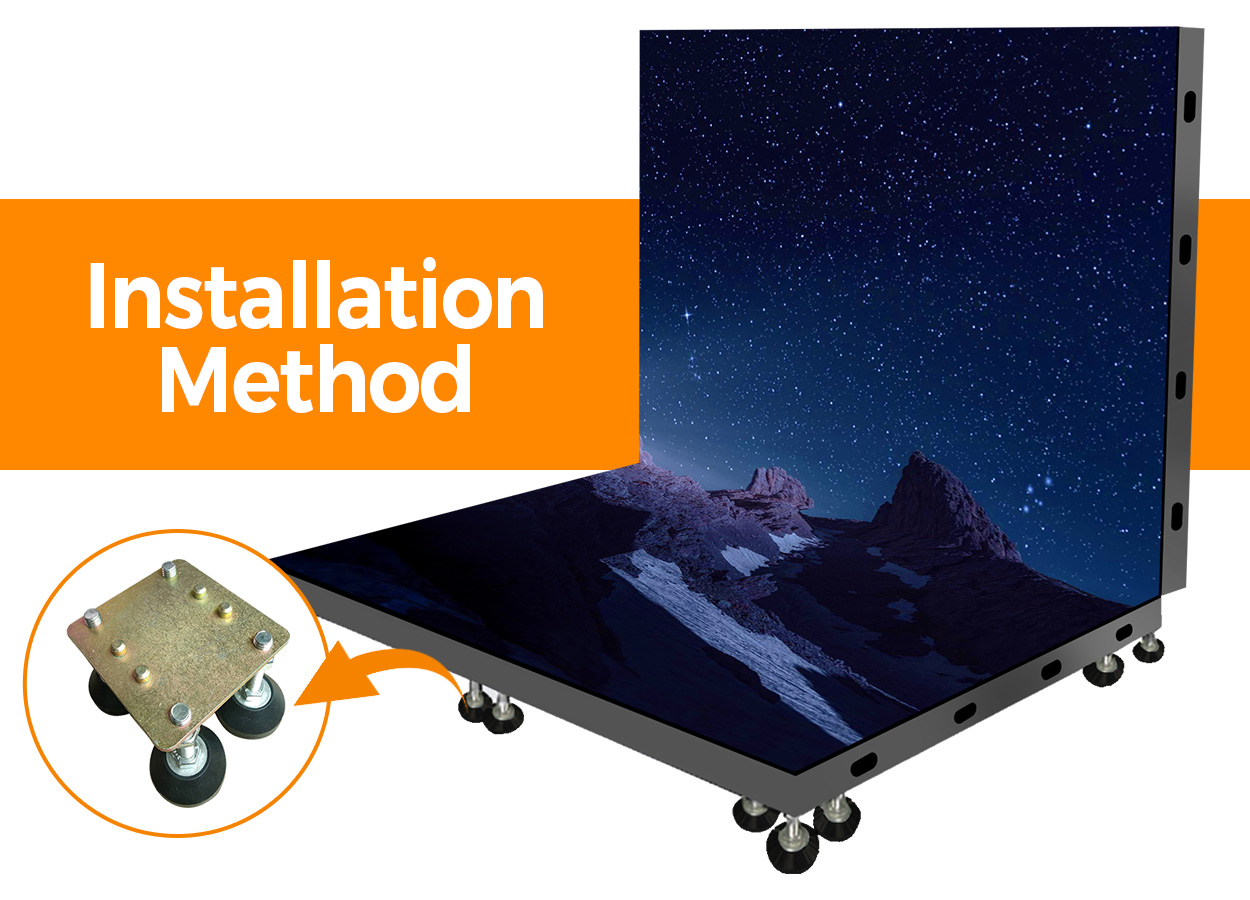

    Easy Installation

    Outdoor LED floor display supports a variety of installation methods. For outdoor environments, it is recommended to install above the ground. The installation method is flexible and can be installed flat (LED screen) or fixed on the wall (LED wall).

    Wheeled mobile baseframe attached to a large display panel illustrating an installation method with an orange banner saying Installation Method

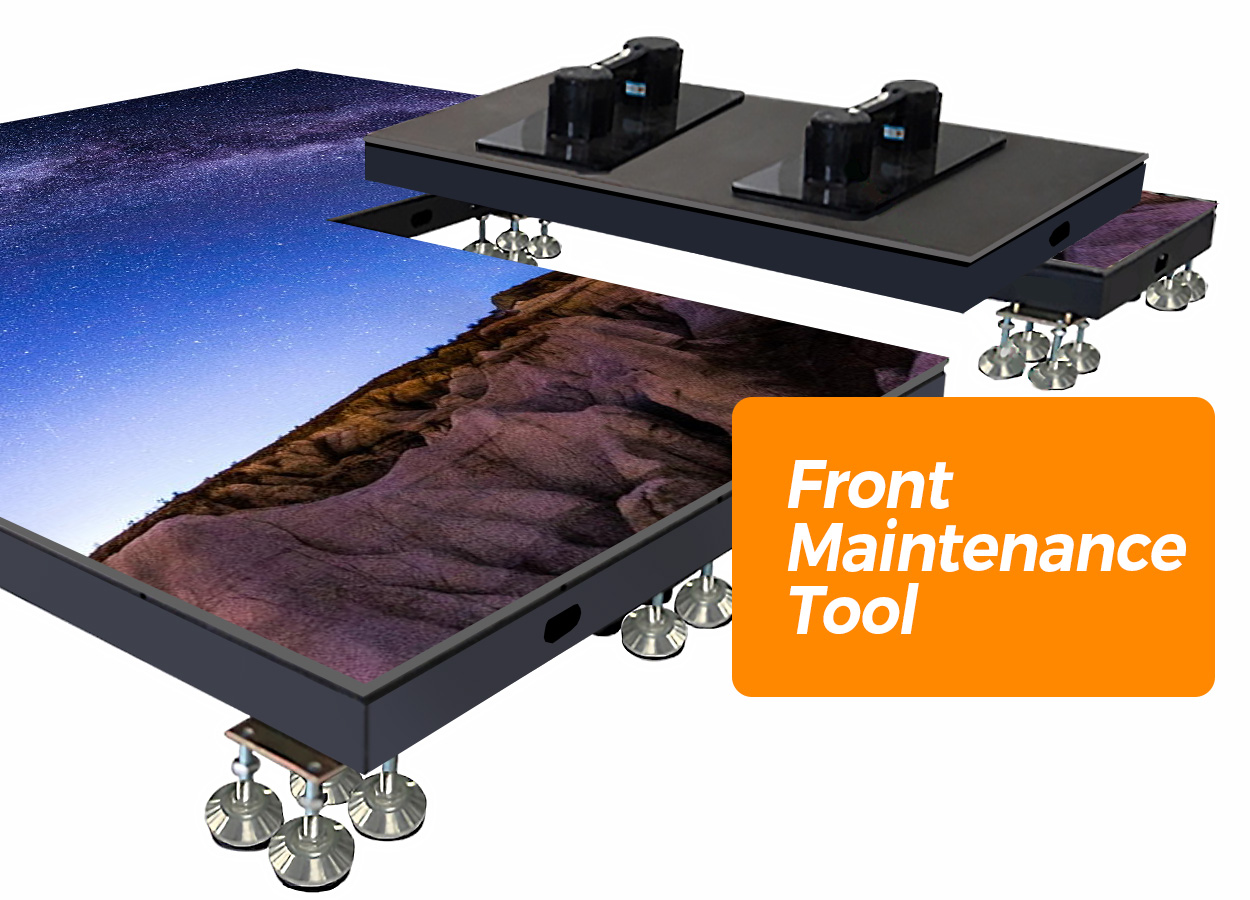

    Front Service

    With magnetic design,supports front service, save your time and energy to finish the maintenance.

    3D rendering of a wheeled modular maintenance tool with two stacked platform sections and an orange label reading Front Maintenance Tool

    Super Strong Load-bearing Performance

    EagerLED outdoor floor LED display has a load-bearing capacity of more than 1500KG/m². Good load-bearing capacity is the key to ensuring the normal operation of the display equipment.

    3D render of an orange SUV parked on a blue testing platform with caster wheels visible underneath

    Interactive Induction

    The LED module is built-in with a self-developed interactive sensing chip, which can produce real-time image sensing effects following human touch and stepping.

    Two purple dancing silhouettes perform on a dark stage under a starry night sky with mountains in the background

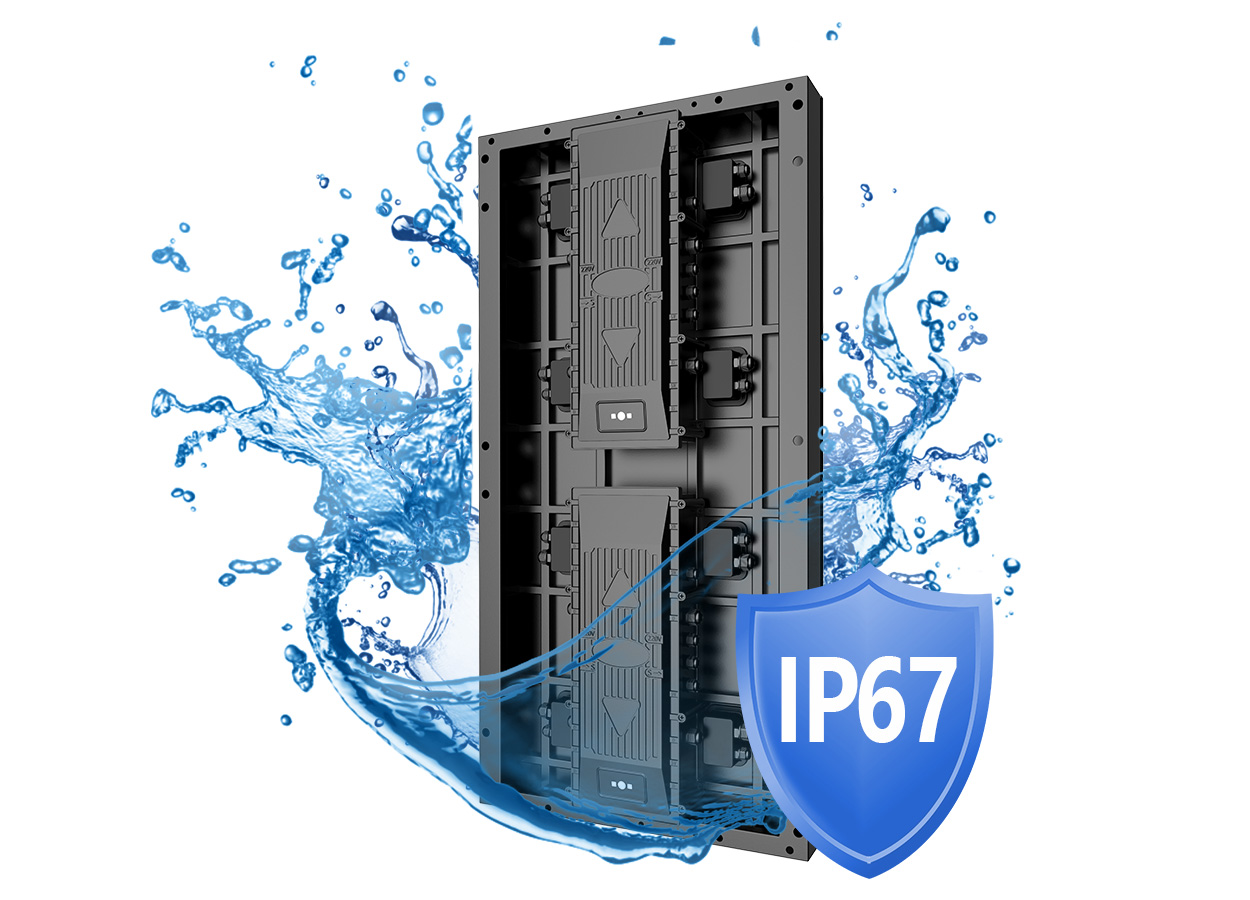

    Front and Rear IP67 Protection

    EA-OFloor outdoor floor LED screen adopts IP67 protection on the front and rear, and its special design allows it to be completely immersed in water. This means that the equipment can operate continuously in various harsh outdoor weather conditions.

    Rugged electronic enclosure with stacked modules surrounded by water splashes and an IP67 shield indicating waterproof protection

    Customized New LED Display Solutions for You

      EA-OFloor Outdoor 500x1000mm Floor LED Screen Parameter
